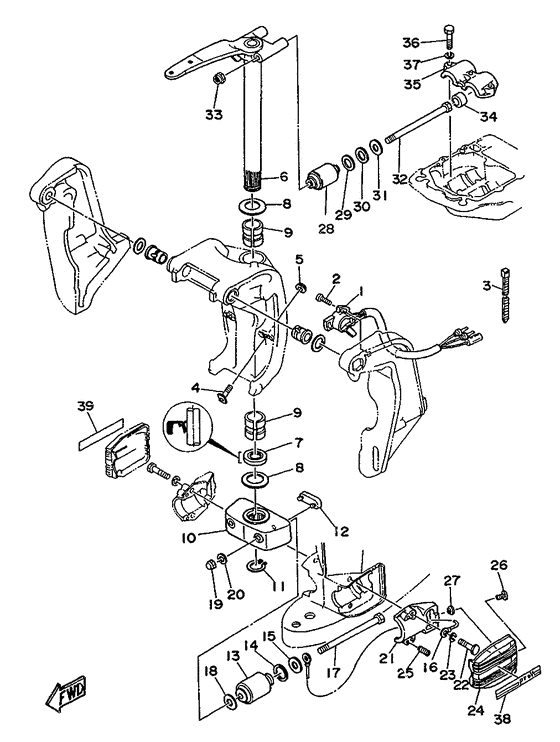

Bracket 2 Diagram Yamaha 200 ETOL/XL
- Year
- 1994
- Model
- P200
- Model code
- 61H
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6R3-83672-01-00 Trim Sender |
6R3-83672-01-00 |
US $429.66 |
||
| replacements | |||||
|
01
|
01
6R3-83672-02-00 Trim Sender |
6R3-83672-02-00 |
US $342.83 |
||
|
01
|
01
6R3-83672-02-00 Trim Sender |
6R3-83672-02-00 |
US $342.83 |
||
|
02
|
02
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
03
|
03
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
03
|
03
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
03
|
03
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
04
|
04
6G5-43376-00-00
Bolt, Thrust Receiver
|
6G5-43376-00-00 |
— | ||
|
05
|
05
95780-10300-00 Nut, Flange |
95780-10300-00 |
from US $5.71 |
||
|
06
|
06
6E5-42510-04-4D Steering Bracket Assembly |
6E5-42510-04-4D |
US $646.80 |
||
| replacement | |||||
|
06
|
06
6E5-42510-05-8D Steering Bracket Assembly |
6E5-42510-05-8D |
from US $571.58 |
||
|
07
|
07
93109-38M02-00 Oil Seal |
93109-38M02-00 |
from US $6.48 |
||
|
08
|
08
90201-38M60-00 Washer, Plate |
90201-38M60-00 |
from US $5.97 |
||
|
09
|
09
90386-38M32-00 Bush |
90386-38M32-00 |
US $29.96 |
||
| replacement | |||||
|
09
|
09
90386-38M89-00 Bush |
90386-38M89-00 |
from US $29.96 |
||
|
10
|
10
6G5-44551-00-4D Housing, Lower Mount Rubber 1 |
6G5-44551-00-4D |
US $139.54 |
||
| replacement | |||||
|
10
|
10
6G5-44551-01-8D Housing, Lower Mount Rubber 1 |
6G5-44551-01-8D |
from US $134.32 |
||
|
11
|
11
93410-37M04-00 Circlip |
93410-37M04-00 |
from US $4.04 |
||
|
12
|
12
6E5-44575-00-00 Damper, Lower Mount Rubber |
6E5-44575-00-00 |
US $14.03 |
||
|
13
|
13
6J9-44555-00-94 Mount, Damper, Lower Side |
6J9-44555-00-94 |
US $126.42 |
||
| replacement | |||||
|
13
|
13
6J9-44555-00-00 Mount Damper, Lower Side |
6J9-44555-00-00 |
from US $93.92 |
||
|
14
|
14
90202-32M19-00 Washer, Plate |
90202-32M19-00 |
from US $5.40 |
||
|
15
|
15
90201-16M55-00 Washer, Plate |
90201-16M55-00 |
from US $5.40 |
||
|
16
|
16
6E5-82149-00-00 Wire, Lead 3 |
6E5-82149-00-00 |
from US $7.76 |
||
|
17
|
17
90109-14M34-00 Bolt |
90109-14M34-00 |
from US $23.94 |
||
|
18
|
18
90201-15M58-00 Washer, Plate |
90201-15M58-00 |
from US $5.06 |
||
|
19
|
19
95380-14800-00 Nut |
95380-14800-00 |
from US $10.44 |
||
|
20
|
20
92990-14600-00 Washer |
92990-14600-00 |
from US $6.06 |
||
|
21
|
21
6E5-44552-00-94 Housing, Lower Mount |
6E5-44552-00-94 |
US $84.42 |
||
| replacement | |||||
|
21
|
21
6E5-44552-01-CA Housing, Lower Mount Rubber |
6E5-44552-01-CA |
from US $84.42 |
||
|
22
|
22
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
22
|
22
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
22
|
22
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
23
|
23
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
24
|
24
6J9-44553-30-0N
Cover, Lower Mount
|
6J9-44553-30-0N |
— | ||
|
25
|
25
90501-16M28-00 Spring, Compression |
90501-16M28-00 |
from US $4.96 |
||
|
26
|
26
90157-06M05-00 Screw, Pan Head |
90157-06M05-00 |
from US $2.41 |
||
|
27
|
27
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
28
|
28
6J9-44514-00-94 Mount Damper, Upper Side |
6J9-44514-00-94 |
US $98.51 |
||
| replacement | |||||
|
28
|
28
6J9-44514-00-00 Mount Damper, Upper Side |
6J9-44514-00-00 |
from US $79.78 |
||
|
29
|
29
90201-26M57-00 Washer, Plate |
90201-26M57-00 |
from US $6.09 |
||
|
30
|
30
90202-26M18-00 Washer, Plate |
90202-26M18-00 |
from US $6.09 |
||
|
31
|
31
90201-14M56-00 Washer, Plate |
90201-14M56-00 |
from US $7.37 |
||
|
32
|
32
90109-12M37-00 Bolt |
90109-12M37-00 |
US $19.84 |
||
| replacement | |||||
|
32
|
32
90109-12007-00 Bolt |
90109-12007-00 |
from US $19.84 |
||
|
33
|
33
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
34
|
34
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
34
|
34
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
35
|
35
6E5-44511-00-5B Cover, Upper Mount |
6E5-44511-00-5B |
US $82.07 |
||
| replacement | |||||
|
35
|
35
6E5-44511-00-00 Cover, Upper Mount |
6E5-44511-00-00 |
from US $56.81 |
||
|
36
|
36
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
36
|
36
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
36
|
36
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
37
|
37
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
38
|
38
6N9-43155-40-00
Mark 1
|
6N9-43155-40-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
6N9-43156-40-00
Mark 2
|
6N9-43156-40-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
