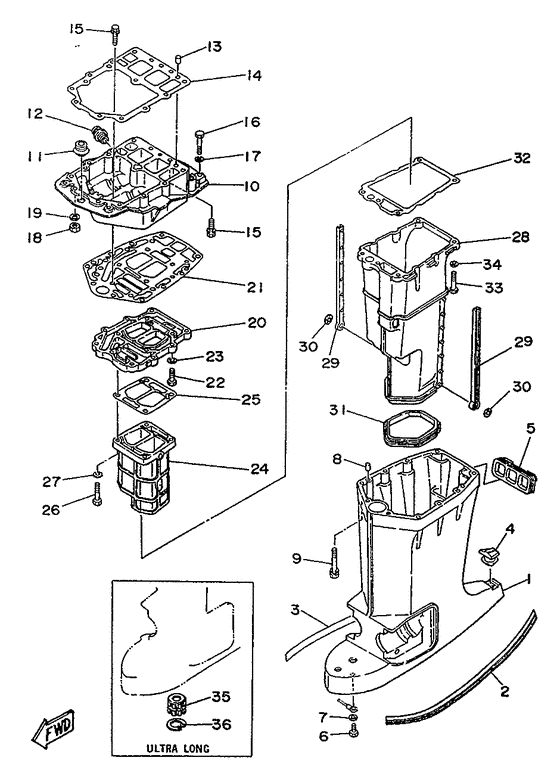

Upper casing Diagram Yamaha 225 ETOL/XL
- Year
- 1995
- Model
- 225B
- Model code
- 6R5
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 225
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-45111-00-4D Casing, UpperUr long |
6E5-45111-00-4D |
US $1,198.56 |
||
| replacement | |||||
|
01
|
01
6E5-45111-02-8D Casing, UpperUr long |
6E5-45111-02-8D |
from US $1,094.82 |
||
|
01
|
01
6E5-45111-20-4D Casing, UpperUr ultra long |
6E5-45111-20-4D |
US $1,211.76 |
||
| replacement | |||||
|
01
|
01
6E5-45111-23-8D Casing, UpperUr ultra long |
6E5-45111-23-8D |
from US $1,116.53 |
||
|
02
|
02
6R3-42791-A0-00
Mark 1
|
6R3-42791-A0-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
6R3-42792-00-00
Mark 2
|
6R3-42792-00-00 |
— | ||
|
04
|
04
6E5-45155-00-00 Cap |
6E5-45155-00-00 |
from US $16.01 |
||
|
05
|
05
6E5-42679-00-00
Graphic,upper
|
6E5-42679-00-00 |
— | ||
|
10
|
10
6G5-41137-00-94 Guide, Exhaust |
6G5-41137-00-94 |
US $504 |
||
| replacements | |||||
|
10
|
10
6G5-41137-02-CA Guide, Exhaust |
6G5-41137-02-CA |
from US $409.20 |
||
|
10
|
10
6G5-41137-KT-94
element
|
6G5-41137-KT-94 |
— | ||
|
11
|
11
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
12
|
12
6G5-12581-00-00 Joint, Hose 1 |
6G5-12581-00-00 |
from US $6.38 |
||
|
14
|
14
6G5-45113-A0-00 Gasket, Upper Casing |
6G5-45113-A0-00 |
US $63.14 |
||
| replacement | |||||
|
14
|
14
6G5-45113-A2-00 Gasket, Upper Casing |
6G5-45113-A2-00 |
from US $49.01 |
||
|
20
|
20
6G5-41131-00-5B Manifold, Exhaust 1 (6G5-41131-00-9M) |
6G5-41131-00-5B |
US $96.02 |
||
| replacement | |||||
|
20
|
20
6G5-41131-01-CA Manifold, Ext. 1 |
6G5-41131-01-CA |
from US $96.02 |
||
|
21
|
21
6G5-45114-A0-00 Gasket, Upper Casing |
6G5-45114-A0-00 |
US $45.45 |
||
| replacement | |||||
|
21
|
21
6G5-45114-A1-00 Gasket, Upper Casing |
6G5-45114-A1-00 |
from US $30.89 |
||
|
24
|
24
6G5-41132-00-5B
Manifold, Exhaust (6G5-41132-00-9M)
|
6G5-41132-00-5B |
— | ||
|
25
|
25
6G5-41134-A0-00 Gasket, Exhaust Manifold |
6G5-41134-A0-00 |
US $9.35 |
||
| replacement | |||||
|
25
|
25
6G5-41134-A1-00 Gasket, Exhaust Manifold |
6G5-41134-A1-00 |
from US $9.35 |
||
|
28
|
28
6E5-14711-00-5B Muffler 1 (6E5-14711-00-9M) |
6E5-14711-00-5B |
US $262.50 |
||
| replacement | |||||
|
28
|
28
6E5-14711-01-CA Muffler 1 |
6E5-14711-01-CA |
from US $262.50 |
||
|
29
|
29
6E5-14737-00-00 Damper, Muffler |
6E5-14737-00-00 |
from US $19.27 |
||
|
31
|
31
6E5-45123-00-00 Gasket, Muffler |
6E5-45123-00-00 |
from US $20.12 |
||
|
32
|
32
6E5-41135-A0-00 Gasket, Exhaust Manifold |
6E5-41135-A0-00 |
from US $7.42 |
||
|
35
|
35
6E5-45318-00-00 Bushing, Drive ShaftUltra long |
6E5-45318-00-00 |
from US $62.04 |
||
