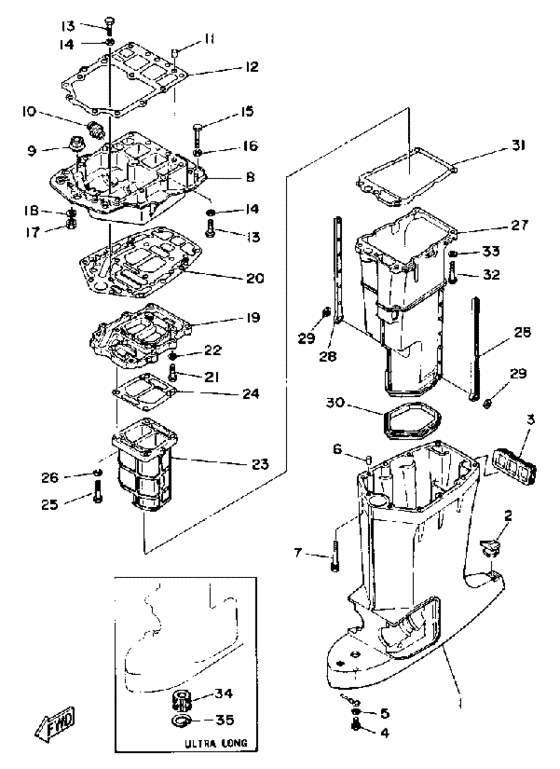

Upper casing Diagram Yamaha 225 L/XL
- Year
- 1988
- Model
- 225
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 225
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E5-45111-00-EK
Casing, Upper
|
6E5-45111-00-EK |
— | ||
| replacements | |||||
|
1
|
1
6E5-45111-02-EK
Upper Case
|
6E5-45111-02-EK |
— | ||
|
1
|
1
6E5-45111-01-EK
New Genuine Part
|
6E5-45111-01-EK |
— | ||
|
1
|
1
6E5-45111-20-EK
Casing, Upper
|
6E5-45111-20-EK |
— | ||
| replacement | |||||
|
1
|
1
6E5-45111-23-EK element |
6E5-45111-23-EK |
US $618.15 |
||
|
2
|
2
6E5-45155-00-00 Cap |
6E5-45155-00-00 |
from US $16.01 |
||
|
3
|
3
6E5-42769-00-00 Seal, Rubber |
6E5-42769-00-00 |
US $13.03 |
||
|
4
|
4
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
4
|
4
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
6
|
6
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
7
|
7
90119-08M78-00 Bolt, With Washer |
90119-08M78-00 |
US $18.56 |
||
| replacement | |||||
|
7
|
7
90119-08078-00 Bolt, With Washer |
90119-08078-00 |
from US $18.56 |
||
|
8
|
8
6G5-41137-00-94 Guide, Exhaust |
6G5-41137-00-94 |
US $504 |
||
| replacements | |||||
|
8
|
8
6G5-41137-02-CA Guide, Exhaust |
6G5-41137-02-CA |
from US $409.20 |
||
|
8
|
8
6G5-41137-KT-94
element
|
6G5-41137-KT-94 |
— | ||
|
9
|
9
6E5-42724-00-00 Grommet |
6E5-42724-00-00 |
US $6.80 |
||
|
10
|
10
6G5-12581-00-00 Joint, Hose 1 |
6G5-12581-00-00 |
from US $6.38 |
||
|
11
|
11
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
12
|
12
6G5-45113-A0-00 Gasket, Upper Casing |
6G5-45113-A0-00 |
US $63.14 |
||
| replacement | |||||
|
12
|
12
6G5-45113-A2-00 Gasket, Upper Casing |
6G5-45113-A2-00 |
from US $49.01 |
||
|
13
|
13
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
13
|
13
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
15
|
15
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
15
|
15
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
15
|
15
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
