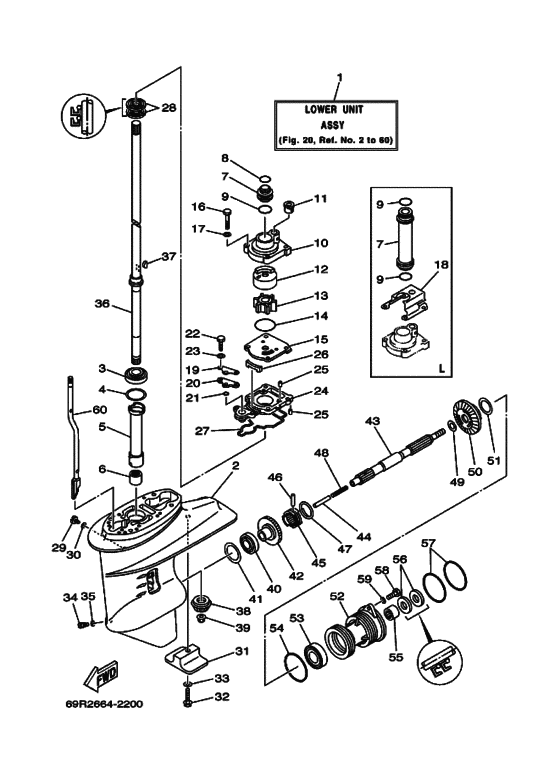

Lower casing & drive 1 Diagram Yamaha 25 MHS/L
- Year
- 2002
- Model
- 25B
- Model code
- 69R
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (160)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69P-45300-00-4D Lower Unit AssyS |
69P-45300-00-4D |
US $2,112 |
||
| replacement | |||||
|
1
|
1
69P-45300-01-4D Lower Unit Assy (S)S |
69P-45300-01-4D |
US $1,732.94 |
||
|
1
|
1
69P-45300-10-4D Lower Unit AssyL |
69P-45300-10-4D |
US $2,112 |
||
|
2
|
2
61N-45311-02-4D
Casing, Lower
|
61N-45311-02-4D |
— | ||
| replacements | |||||
|
2
|
2
61N-45311-02-8D Casing, Lower |
61N-45311-02-8D |
US $644.16 |
||
|
2
|
2
61N-45311-03-8D Casing, Lower |
61N-45311-03-8D |
US $946.97 |
||
|
3
|
3
933-32000-W5-00 Bearing |
933-32000-W5-00 |
from US $26.08 |
||
|
4
|
4
61N-45587-00-07 Shim (T:0.7Mm)UR |
61N-45587-00-07 |
US $5.67 |
||
| replacements | |||||
|
4
|
4
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
4
|
4
61N-45587-00-00 Shim (T:0.7Mm)UR |
61N-45587-00-00 |
from US $5.67 |
||
|
4
|
4
61N-45587-00-10 Shim (T:1.0Mm)UR |
61N-45587-00-10 |
US $5.67 |
||
| replacement | |||||
|
4
|
4
61N-45587-10-00 Shim (T:1.0Mm)UR |
61N-45587-10-00 |
from US $5.97 |
||
|
4
|
4
61N-45587-00-11 Shim (T:1.1Mm)UR |
61N-45587-00-11 |
US $5.67 |
||
| replacement | |||||
|
4
|
4
61N-45587-20-00 Shim (T:1.1Mm)UR |
61N-45587-20-00 |
from US $5.97 |
||
|
4
|
4
61N-45587-00-12 Shim (T:1.2Mm)UR |
61N-45587-00-12 |
US $5.67 |
||
| replacement | |||||
|
4
|
4
61N-45587-30-00 Shim (T:1.2Mm)UR |
61N-45587-30-00 |
from US $5.97 |
||
|
4
|
4
61N-45587-00-13 Shim (T:1.3Mm)UR |
61N-45587-00-13 |
US $5.67 |
||
| replacement | |||||
|
4
|
4
61N-45587-40-00 Shim (T:1.3Mm)UR |
61N-45587-40-00 |
from US $5.97 |
||
|
4
|
4
61N-45587-00-14 Shim (T:1.4Mm)UR |
61N-45587-00-14 |
US $5.67 |
||
| replacement | |||||
|
4
|
4
61N-45587-50-00 Shim (T:1.4Mm)UR |
61N-45587-50-00 |
from US $5.97 |
||
|
4
|
4
61N-45587-00-15 Shim (T:1.5Mm)UR |
61N-45587-00-15 |
US $5.67 |
||
| replacement | |||||
|
4
|
4
61N-45587-60-00 Shim (T:1.5Mm)UR |
61N-45587-60-00 |
from US $5.97 |
||
|
4
|
4
61N-45587-00-16 Shim (T:1.6Mm)UR |
61N-45587-00-16 |
US $5.67 |
||
| replacement | |||||
|
4
|
4
61N-45587-70-00 Shim (T:1.6Mm)UR |
61N-45587-70-00 |
from US $5.97 |
||
|
5
|
5
61N-45536-00-00 Sleeve, Drive Shaft |
61N-45536-00-00 |
from US $19.13 |
||
|
6
|
6
933-15220-V7-00 Bearing |
933-15220-V7-00 |
from US $22.62 |
||
|
7
|
7
61N-44362-00-00 Tube, Water 2S,X |
61N-44362-00-00 |
from US $15.50 |
||
|
7
|
7
61N-44362-10-00 Tube, Water 2L |
61N-44362-10-00 |
from US $20.54 |
||
|
8
|
8
93210-22164-00 O-RingS |
93210-22164-00 |
from US $1.39 |
||
| replacement | |||||
|
8
|
8
93210-22298-00 O-RingS |
93210-22298-00 |
from US $1.39 |
||
|
9
|
9
932-10261-30-00 O-RingS |
932-10261-30-00 |
US $1.94 |
||
| replacement | |||||
|
9
|
9
93210-26240-00 O-RingS |
93210-26240-00 |
from US $1.94 |
||
|
10
|
10
69P-44311-00-00
Housing, Water Pump
|
69P-44311-00-00 |
— | ||
| replacement | |||||
|
10
|
10
69P-44311-01-00 Housing, Water Pump |
69P-44311-01-00 |
from US $43.93 |
||
|
11
|
11
6L2-44367-00-00 Damper, Water Seal 3 |
6L2-44367-00-00 |
US $3.74 |
||
|
12
|
12
69P-44322-00-00 Insert, CartridgeFOR STD |
69P-44322-00-00 |
from US $17.52 |
||
|
12
|
12
69P-44322-40-00 Insert, CartridgeFOR CHROMATE |
69P-44322-40-00 |
US $77.37 |
||
|
13
|
13
6H4-44352-02-00 Impeller |
6H4-44352-02-00 |
from US $26.60 |
||
|
14
|
14
93210-45161-00 O-Ring |
93210-45161-00 |
from US $2.70 |
||
|
15
|
15
61N-44323-00-00 Outer Plate, CartridgeFOR STD |
61N-44323-00-00 |
from US $7.42 |
||
|
15
|
15
61N-44323-40-00 Outer Plate, CartridgeFOR |
61N-44323-40-00 |
from US $35.28 |
||
|
16
|
16
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
17
|
17
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
65W-44328-11-00 PlateL |
65W-44328-11-00 |
from US $15.73 |
||
|
19
|
19
61N-44176-00-00 Bracket |
61N-44176-00-00 |
from US $5.67 |
||
|
20
|
20
61N-45321-00-00 Plate |
61N-45321-00-00 |
from US $4.68 |
||
|
21
|
21
93210-06ME6-00 O-Ring |
93210-06ME6-00 |
from US $2.36 |
||
|
22
|
22
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
61N-45331-00-5B Housing, Bearing |
61N-45331-00-5B |
US $98.51 |
||
| replacement | |||||
|
24
|
24
61N-45331-00-CA Housing, Bearing |
61N-45331-00-CA |
from US $98.51 |
||
|
25
|
25
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
26
|
26
61N-45127-00-00 Seal |
61N-45127-00-00 |
US $4.11 |
||
|
27
|
27
61N-45315-00-00 Packing, Lower Casing |
61N-45315-00-00 |
from US $6.88 |
||
|
28
|
28
931-01220-67-00 Oil Seal |
931-01220-67-00 |
from US $8.05 |
||
|
29
|
29
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
30
|
30
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
30
|
30
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
31
|
31
61N-45251-01-00 Anode |
61N-45251-01-00 |
from US $20.20 |
||
|
32
|
32
958-95060-35-00
Bolt, Flange
|
958-95060-35-00 |
— | ||
| replacement | |||||
|
32
|
32
95880-06035-00 Bolt, Flange |
95880-06035-00 |
from US $1.70 |
||
|
33
|
33
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
34
|
34
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.21 |
||
|
35
|
35
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
35
|
35
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
36
|
36
61N-45510-00-00 Drive Shaft Assy (S)S |
61N-45510-00-00 |
from US $353.69 |
||
|
36
|
36
61N-45510-10-00 Drive Shaft Assy (L)( L ) L |
61N-45510-10-00 |
from US $353.69 |
||
|
37
|
37
902-8003M-03-00 Key, Woodruff |
902-8003M-03-00 |
from US $7.76 |
||
|
38
|
38
61N-45551-00-00 Pinion (13T)13T |
61N-45551-00-00 |
from US $77.62 |
||
|
39
|
39
90179-10M14-00 Nut |
90179-10M14-00 |
from US $9.35 |
||
|
40
|
40
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
41
|
41
6L2-45567-00-10 Shim (T:1.0Mm)UR |
6L2-45567-00-10 |
US $7.08 |
||
| replacement | |||||
|
41
|
41
6L2-45567-00-00 Shim (T:1.0Mm)UR |
6L2-45567-00-00 |
from US $7.49 |
||
|
41
|
41
6L2-45567-00-11 Shim (T:1.1Mm)UR |
6L2-45567-00-11 |
US $7.08 |
||
| replacement | |||||
|
41
|
41
6L2-45567-10-00 Shim (T:1.1Mm)UR |
6L2-45567-10-00 |
from US $7.49 |
||
|
41
|
41
6L2-45567-00-12 Shim (T:1.2Mm)UR |
6L2-45567-00-12 |
US $7.08 |
||
| replacements | |||||
|
41
|
41
6L2-45567-20-00 Shim (T:1.2Mm)UR |
6L2-45567-20-00 |
from US $7.08 |
||
|
41
|
41
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
41
|
41
6L2-45567-00-13 Shim (T:1.3Mm)UR |
6L2-45567-00-13 |
US $7.08 |
||
| replacement | |||||
|
41
|
41
6L2-45567-30-00 Shim (T:1.3Mm)UR |
6L2-45567-30-00 |
from US $7.42 |
||
|
41
|
41
6L2-45567-00-14 Shim (T:1.4Mm)UR |
6L2-45567-00-14 |
US $7.08 |
||
| replacement | |||||
|
41
|
41
6L2-45567-40-00 Shim (T:1.4Mm)UR |
6L2-45567-40-00 |
from US $7.42 |
||
|
42
|
42
61N-45560-00-00 Gear |
61N-45560-00-00 |
US $163.03 |
||
| replacement | |||||
|
42
|
42
61N-45560-10-00 Gear 1 (27T) |
61N-45560-10-00 |
from US $137.34 |
||
|
43
|
43
6L2-45611-00-00 Shaft, Propeller |
6L2-45611-00-00 |
from US $343.75 |
||
|
44
|
44
648-45635-00-00 Plunger, Shift |
648-45635-00-00 |
from US $4.04 |
||
|
45
|
45
664-45631-02-00
Clutch, Dog
|
664-45631-02-00 |
— | ||
| replacement | |||||
|
45
|
45
6FM-45631-00-00 CLUTCH, DOG |
6FM-45631-00-00 |
from US $43.10 |
||
|
46
|
46
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
47
|
47
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
47
|
47
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
48
|
48
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $3.04 |
||
|
49
|
49
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
50
|
50
61N-45571-00-00 Gear 2 (27T)27T |
61N-45571-00-00 |
from US $102.68 |
||
|
51
|
51
6L2-45577-00-10 Shim (T:1.0Mm)UR |
6L2-45577-00-10 |
US $9.21 |
||
| replacement | |||||
|
51
|
51
6L2-45577-00-00 Shim (T:1.0Mm)UR |
6L2-45577-00-00 |
from US $9.71 |
||
|
51
|
51
6L2-45577-00-11 Shim (T:1.1Mm)UR |
6L2-45577-00-11 |
US $9.21 |
||
| replacement | |||||
|
51
|
51
6L2-45577-10-00 Shim (T:1.1Mm)UR |
6L2-45577-10-00 |
from US $9.71 |
||
|
51
|
51
6L2-45577-00-12 Shim (T:1.2Mm)UR |
6L2-45577-00-12 |
US $9.21 |
||
| replacement | |||||
|
51
|
51
6L2-45577-20-00 Shim (T:1.2Mm)UR |
6L2-45577-20-00 |
from US $9.71 |
||
|
51
|
51
6L2-45577-00-13 Shim (T:1.3Mm)UR |
6L2-45577-00-13 |
US $9.21 |
||
| replacement | |||||
|
51
|
51
6L2-45577-30-00 Shim (T:1.3Mm)UR |
6L2-45577-30-00 |
from US $9.71 |
||
|
52
|
52
61N-45361-01-4D
Cap, Lower Casing
|
61N-45361-01-4D |
— | ||
| replacement | |||||
|
52
|
52
61N-45361-01-8D Cap, Lower Casing |
61N-45361-01-8D |
from US $77.44 |
||
|
53
|
53
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $22.75 |
||
|
54
|
54
93210-64ME7-00 O-Ring |
93210-64ME7-00 |
from US $6.40 |
||
|
55
|
55
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
56
|
56
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $5.74 |
||
|
57
|
57
932-1065M-50-00 O-Ring |
932-1065M-50-00 |
from US $4.04 |
||
|
58
|
58
970-75060-20-00
Bolt
|
970-75060-20-00 |
— | ||
| replacement | |||||
|
58
|
58
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
59
|
59
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
59
|
59
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
60
|
60
61N-44150-00-00 Shift Cam Assembly (S)S |
61N-44150-00-00 |
from US $93.81 |
||
|
60
|
60
61N-44150-10-00 Shift Cam Assembly (L)L |
61N-44150-10-00 |
from US $93.81 |
||
