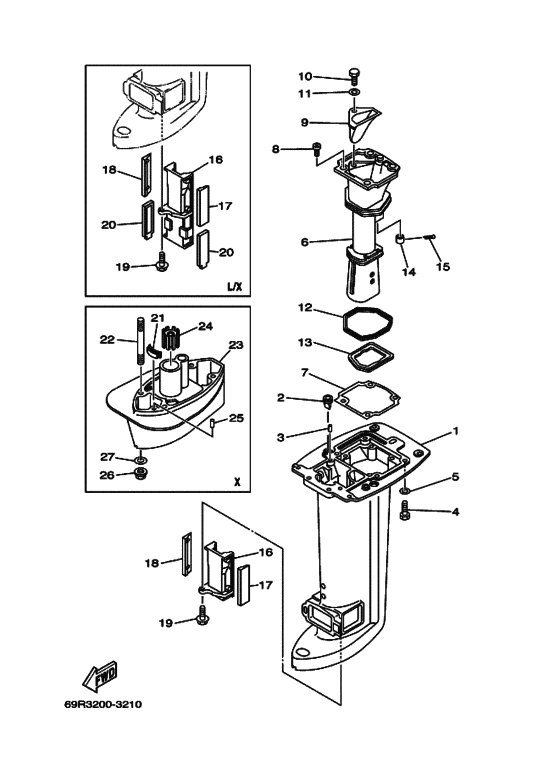

Upper casing Diagram Yamaha 25 MHS
- Year
- 2010
- Model
- 25B
- Model code
- 69RA
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (060)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69P-45111-00-4D Casing, UpperS(16.7") |
69P-45111-00-4D |
US $540.14 |
||
|
1
|
1
69P-45111-10-4D Casing, UpperL(21.6"),X(25.0") |
69P-45111-10-4D |
US $544.24 |
||
|
2
|
2
65W-42717-00-00 Rubber, Seal 2 |
65W-42717-00-00 |
from US $3.97 |
||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
4
|
4
97075-08030-00 Bolt |
97075-08030-00 |
US $2.91 |
||
| replacement | |||||
|
4
|
4
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
5
|
5
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
6
|
6
69P-41131-01-5B Manifold, Ext. 1FOR STD |
69P-41131-01-5B |
US $134.98 |
||
| replacement | |||||
|
6
|
6
69P-41131-01-CA Manifold, Ext. 1FOR STD |
69P-41131-01-CA |
US $131.94 |
||
|
6
|
6
69P-41131-11-5B Manifold, Ext. 1 |
69P-41131-11-5B |
US $134.98 |
||
|
7
|
7
69P-41134-A0-00 Gasket, Exhaust Manifold |
69P-41134-A0-00 |
US $12.89 |
||
|
8
|
8
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
8
|
8
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
9
|
9
69P-41137-00-5B Guide, Exhaust |
69P-41137-00-5B |
US $12.89 |
||
| replacement | |||||
|
9
|
9
69P-41137-00-CA Guide, Exhaust |
69P-41137-00-CA |
from US $12.89 |
||
|
10
|
10
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
11
|
11
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
12
|
12
69P-41138-00-00 Seal, Ext. 1 |
69P-41138-00-00 |
US $12.89 |
||
|
13
|
13
69P-41139-00-00 Seal, Ext. 2 |
69P-41139-00-00 |
US $12.89 |
||
|
14
|
14
6A8-41135-00-00 Gasket, Exhaust Manifold |
6A8-41135-00-00 |
from US $4.95 |
||
|
15
|
15
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
16
|
16
69P-47467-00-5B Plate, GuideS(16.7") |
69P-47467-00-5B |
US $32.30 |
||
|
16
|
16
69P-47467-10-5B Plate, GuideL(21.6"),X(25.0") |
69P-47467-10-5B |
US $42 |
||
|
17
|
17
69P-45127-00-00 Seal |
69P-45127-00-00 |
US $34 |
||
|
18
|
18
69P-45128-00-00 Seal 2 |
69P-45128-00-00 |
US $34 |
||
|
19
|
19
90119-06024-00 Bolt, With Washer |
90119-06024-00 |
US $1.84 |
||
| replacement | |||||
|
19
|
19
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
20
|
20
69P-45159-00-00 DamperL(21.6"),X(25.0") |
69P-45159-00-00 |
US $21.96 |
||
|
21
|
21
61N-45375-00-00 Damper, SealX(25.0") |
61N-45375-00-00 |
US $6.38 |
||
|
22
|
22
90116-10M33-00 Bolt, StudX(25.0") |
90116-10M33-00 |
US $14.59 |
||
|
23
|
23
61N-45211-31-4D ExtensionX(25.0") |
61N-45211-31-4D |
US $673.20 |
||
|
24
|
24
689-45318-00-00 Bushing, Drive ShaftX(25.0") |
689-45318-00-00 |
US $35.99 |
||
|
25
|
25
93606-11M24-00 Pin, DowelX(25.0") |
93606-11M24-00 |
from US $3.38 |
||
|
26
|
26
90179-10M03-00 NutX(25.0") |
90179-10M03-00 |
US $10.48 |
||
|
27
|
27
92995-10600-00 Washer, PlateX(25.0") |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
27
|
27
929-90106-00-00 Washer, PlateX(25.0") |
929-90106-00-00 |
from US $1.18 |
||
