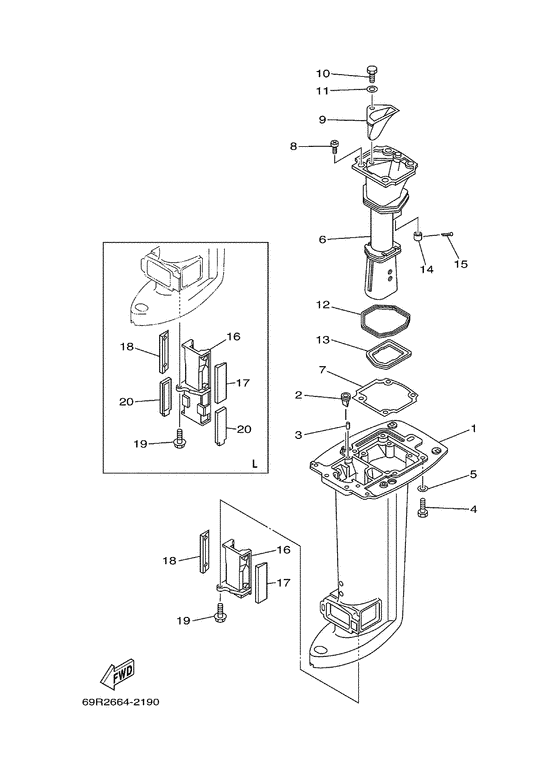

Upper casing Diagram Yamaha 25 WHS/L
- Year
- 2002
- Model
- 25B
- Model code
- 69R
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Russia (230)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69P-45111-00-4D Casing, UpperS |
69P-45111-00-4D |
US $540.14 |
||
|
02
|
02
65W-42717-00-00 Rubber, Seal 2 |
65W-42717-00-00 |
from US $3.97 |
||
|
03
|
03
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
04
|
04
97075-08030-00 Bolt |
97075-08030-00 |
US $2.91 |
||
| replacement | |||||
|
04
|
04
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
05
|
05
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
05
|
05
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
06
|
06
69P-41131-01-5B Manifold, Ext. 1 |
69P-41131-01-5B |
US $134.98 |
||
| replacement | |||||
|
06
|
06
69P-41131-01-CA Manifold, Ext. 1 |
69P-41131-01-CA |
US $131.94 |
||
|
07
|
07
69P-41134-A0-00 Gasket, Exhaust Manifold |
69P-41134-A0-00 |
US $12.89 |
||
|
08
|
08
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
08
|
08
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
09
|
09
69P-41137-00-5B Guide, Exhaust |
69P-41137-00-5B |
US $12.89 |
||
| replacement | |||||
|
09
|
09
69P-41137-00-CA Guide, Exhaust |
69P-41137-00-CA |
from US $12.89 |
||
|
10
|
10
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
11
|
11
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
12
|
12
69P-41138-00-00 Seal, Ext. 1 |
69P-41138-00-00 |
US $12.89 |
||
|
13
|
13
69P-41139-00-00 Seal, Ext. 2 |
69P-41139-00-00 |
US $12.89 |
||
|
14
|
14
6A8-41135-00-00 Gasket, Exhaust Manifold |
6A8-41135-00-00 |
from US $4.95 |
||
|
15
|
15
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
16
|
16
69P-47467-00-5B Plate, GuideS |
69P-47467-00-5B |
US $32.30 |
||
|
17
|
17
69P-45127-00-00 Seal |
69P-45127-00-00 |
US $34 |
||
|
18
|
18
69P-45128-00-00 Seal 2 |
69P-45128-00-00 |
US $34 |
||
|
19
|
19
90119-06024-00 Bolt, With Washer |
90119-06024-00 |
US $1.84 |
||
| replacement | |||||
|
19
|
19
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
