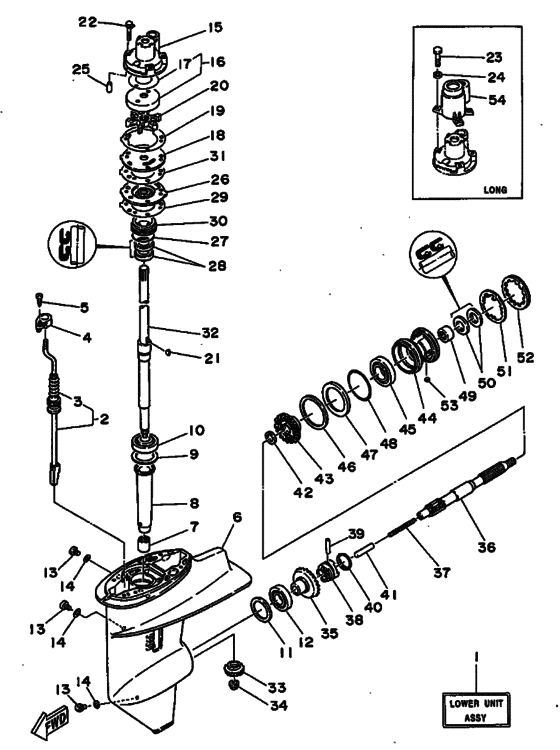

Lower casing & drive Diagram Yamaha 25 (E)MHS/L
- Year
- 1997
- Model
- 25D
- Model code
- 695
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-45300-06-4D Lower Unit Assembly (Ref. #2~47, 51~54)Lower unit assy (ref.no.2-22, 25-53) UR SHORT |
689-45300-06-4D |
US $1,392.42 |
||
| replacements | |||||
|
1
|
1
689-45300-07-4D Lower Unit AssyUR SHORT |
689-45300-07-4D |
US $1,392.42 |
||
|
1
|
1
689-45300-08-8D Lower Unit AssyUR SHORT |
689-45300-08-8D |
US $2,422.26 |
||
|
1
|
1
689-45300-16-4D Lower Unit Assembly (Ref. #2~17, 19~54)Lower unit assy (ref.no.2-21, 23-54) UR LONG |
689-45300-16-4D |
US $2,125.20 |
||
| replacement | |||||
|
1
|
1
689-45300-18-8D LOWER UNIT ASSYUR LONG |
689-45300-18-8D |
US $1,609.56 |
||
|
2
|
2
695-44150-00-00 Shift Cam AssemblyUR SHORT |
695-44150-00-00 |
US $51.74 |
||
|
2
|
2
695-44150-10-00 Shift Cam AssemblyUR LONG |
695-44150-10-00 |
from US $56.41 |
||
|
3
|
3
664-44147-00-00 Boot, Shift Rod |
664-44147-00-00 |
from US $9.49 |
||
|
4
|
4
689-44176-01-00
Bracket
|
689-44176-01-00 |
— | ||
|
5
|
5
97780-50110-00 Screw, Pan Head |
97780-50110-00 |
from US $2.27 |
||
| replacement | |||||
|
5
|
5
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
|
6
|
6
689-45311-04-4D
Casing, Lower
|
689-45311-04-4D |
— | ||
|
7
|
7
93315-017U4-00 Bearing |
93315-017U4-00 |
from US $52.31 |
||
|
8
|
8
689-45536-00-00 Sleeve, Drive Shaft |
689-45536-00-00 |
US $15.42 |
||
|
9
|
9
664-45587-01-10 Shim (T:0.10Mm)UR |
664-45587-01-10 |
US $5.81 |
||
| replacement | |||||
|
9
|
9
664-45587-01-00 Shim (T:0.10Mm)UR |
664-45587-01-00 |
from US $5.09 |
||
|
9
|
9
664-45587-01-12 Shim (T:0.12Mm)UR |
664-45587-01-12 |
US $5.81 |
||
| replacement | |||||
|
9
|
9
664-45587-10-00 Shim (T:0.12Mm)UR |
664-45587-10-00 |
from US $5.09 |
||
|
9
|
9
664-45587-01-15 Shim (T:0.15Mm)UR |
664-45587-01-15 |
US $5.81 |
||
| replacement | |||||
|
9
|
9
664-45587-20-00 Shim (T:0.15Mm)UR |
664-45587-20-00 |
from US $5.09 |
||
|
9
|
9
664-45587-01-18 Shim (T:0.18Mm)UR |
664-45587-01-18 |
US $5.81 |
||
| replacement | |||||
|
9
|
9
664-45587-30-00 Shim (T:0.18Mm)UR |
664-45587-30-00 |
from US $5.09 |
||
|
9
|
9
664-45587-01-30 Shim (T:0.30Mm)UR |
664-45587-01-30 |
US $5.81 |
||
| replacement | |||||
|
9
|
9
664-45587-40-00 Shim (T:0.30Mm)UR |
664-45587-40-00 |
from US $5.09 |
||
|
9
|
9
664-45587-01-40 Shim (T:0.40Mm)UR |
664-45587-01-40 |
US $5.81 |
||
| replacement | |||||
|
9
|
9
664-45587-50-00 Shim (T:0.40Mm)UR |
664-45587-50-00 |
from US $5.09 |
||
|
9
|
9
664-45587-01-50 Shim (T:0.50Mm)UR |
664-45587-01-50 |
US $5.81 |
||
| replacement | |||||
|
9
|
9
664-45587-60-00 Shim (T:0.50Mm)UR |
664-45587-60-00 |
from US $5.09 |
||
|
10
|
10
93332-000U4-00 Bearing |
93332-000U4-00 |
from US $40.48 |
||
|
11
|
11
664-45567-01-10 Shim (T:0.10Mm)UR |
664-45567-01-10 |
US $5.81 |
||
| replacement | |||||
|
11
|
11
664-45567-01-00 Shim (T:0.10Mm)UR |
664-45567-01-00 |
from US $5.09 |
||
|
11
|
11
664-45567-01-12 Shim (T:0.12Mm)UR |
664-45567-01-12 |
US $5.81 |
||
| replacement | |||||
|
11
|
11
664-45567-10-00 Shim (T:0.12Mm)UR |
664-45567-10-00 |
from US $5.09 |
||
|
11
|
11
664-45567-01-15 Shim (T:0.15Mm)UR |
664-45567-01-15 |
US $5.81 |
||
| replacement | |||||
|
11
|
11
664-45567-20-00 Shim (T:0.15Mm)UR |
664-45567-20-00 |
from US $5.09 |
||
|
11
|
11
664-45567-01-18 Shim (T:0.18Mm)UR |
664-45567-01-18 |
US $5.81 |
||
| replacement | |||||
|
11
|
11
664-45567-30-00 Shim (T:0.18Mm)UR |
664-45567-30-00 |
from US $5.09 |
||
|
11
|
11
664-45567-01-30 Shim (T0.30Mm)UR |
664-45567-01-30 |
US $5.81 |
||
| replacement | |||||
|
11
|
11
664-45567-40-00 Shim (T:0.30Mm)UR |
664-45567-40-00 |
from US $5.09 |
||
|
11
|
11
664-45567-01-40 Shim (T:0.40Mm)UR |
664-45567-01-40 |
US $5.81 |
||
| replacement | |||||
|
11
|
11
664-45567-50-00 Shim (T:0.40Mm)UR |
664-45567-50-00 |
from US $5.09 |
||
|
11
|
11
664-45567-01-50 Shim (T:0.50Mm)UR |
664-45567-01-50 |
US $5.81 |
||
| replacement | |||||
|
11
|
11
664-45567-60-00 Shim (T:0.50Mm)UR |
664-45567-60-00 |
from US $5.09 |
||
|
12
|
12
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
13
|
13
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
13
|
13
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
14
|
14
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
15
|
15
689-44311-03-00 Housing, Water Pump |
689-44311-03-00 |
from US $47.99 |
||
|
16
|
16
689-W4432-02-00 Insert Cartridge Comp |
689-W4432-02-00 |
from US $35.33 |
||
|
17
|
17
689-44367-01-00 Damper, Water Seal 3 |
689-44367-01-00 |
from US $6.94 |
||
|
18
|
18
689-44323-03-00 Outer Plate, Cartridge |
689-44323-03-00 |
from US $15.19 |
||
|
19
|
19
689-44324-A0-00 Gasket, Cartridge |
689-44324-A0-00 |
from US $8.08 |
||
|
20
|
20
689-44352-02-00 Impeller |
689-44352-02-00 |
from US $24.23 |
||
|
21
|
21
664-44338-00-00 Key, Woodruff |
664-44338-00-00 |
from US $6.11 |
||
|
22
|
22
90119-06M07-00 Bolt, With Washer |
90119-06M07-00 |
US $3.98 |
||
|
23
|
23
973-95060-35-00
Bolt, Hexagon
LONG |
973-95060-35-00 |
— | ||
| replacement | |||||
|
23
|
23
97080-06035-00 Bolt(J52)LONG |
97080-06035-00 |
from US $2.02 |
||
|
24
|
24
929-95066-00-00
Washer, Plate
LONG |
929-95066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646)LONG |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
26
|
26
689-44325-02-9M
Protector, Oil Seal
|
689-44325-02-9M |
— | ||
| replacement | |||||
|
26
|
26
689-44325-02-CA
Protector, Oil Seal
|
689-44325-02-CA |
— | ||
|
27
|
27
93210-40M10-00 O-Ring |
93210-40M10-00 |
from US $3.60 |
||
|
28
|
28
931-01220-67-00 Oil Seal |
931-01220-67-00 |
from US $8.05 |
||
|
29
|
29
689-44315-A0-00 Gasket, Water Pump |
689-44315-A0-00 |
from US $8.69 |
||
|
30
|
30
689-45344-00-94 Cover, Oil Seal |
689-45344-00-94 |
from US $47.53 |
||
|
31
|
31
689-44316-A0-00 Gasket, Water Pump |
689-44316-A0-00 |
from US $6.94 |
||
|
32
|
32
689-45501-00-00 Drive Shaft CompUR SHORT |
689-45501-00-00 |
from US $421 |
||
|
32
|
32
689-45501-10-00 Drive Shaft CompUR LONG |
689-45501-10-00 |
from US $415.33 |
||
|
33
|
33
689-45551-00-00 Pinion (13T)13T |
689-45551-00-00 |
from US $107.07 |
||
|
34
|
34
90179-09M02-00 Nut |
90179-09M02-00 |
from US $5.74 |
||
|
35
|
35
689-45560-00-00 Gear |
689-45560-00-00 |
US $236.25 |
||
| replacement | |||||
|
35
|
35
689-45560-10-00 Gear |
689-45560-10-00 |
from US $236.25 |
||
|
36
|
36
689-45611-01-00
Shaft, Propeller
|
689-45611-01-00 |
— | ||
|
37
|
37
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $3.04 |
||
|
38
|
38
664-45631-01-00 Crabot |
664-45631-01-00 |
US $50.57 |
||
| replacement | |||||
|
38
|
38
6FM-45631-00-00 CLUTCH, DOG |
6FM-45631-00-00 |
from US $43.10 |
||
|
39
|
39
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
40
|
40
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
40
|
40
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
41
|
41
648-45635-00-00 Plunger, Shift |
648-45635-00-00 |
from US $4.04 |
||
|
42
|
42
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
43
|
43
689-45571-00-00 Gear 2 (24T)24T |
689-45571-00-00 |
from US $222.44 |
||
|
44
|
44
689-45331-01-94 Housing, Bearing |
689-45331-01-94 |
US $129.18 |
||
| replacement | |||||
|
44
|
44
689-45331-01-00 Housing, Bearing |
689-45331-01-00 |
from US $80.19 |
||
|
45
|
45
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $22.75 |
||
|
46
|
46
664-45577-01-10 Shim (T:0.10Mm)UR |
664-45577-01-10 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-01-00 Shim (T:0.10Mm)UR |
664-45577-01-00 |
from US $7.37 |
||
|
46
|
46
664-45577-01-12 Shim (T:0.12Mm)UR |
664-45577-01-12 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-10-00 Shim (T:0.12Mm)UR |
664-45577-10-00 |
from US $7.37 |
||
|
46
|
46
664-45577-01-15 Shim (T:0.15Mm)UR |
664-45577-01-15 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-20-00 Shim (T:0.15Mm)UR |
664-45577-20-00 |
from US $7.37 |
||
|
46
|
46
664-45577-01-18 Shim (T:0.18Mm)UR |
664-45577-01-18 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-30-00 Shim (T:0.18Mm)UR |
664-45577-30-00 |
from US $6.35 |
||
|
46
|
46
664-45577-01-30 Shim (T:0.30Mm)UR |
664-45577-01-30 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-40-00 Shim (T:0.30Mm)UR |
664-45577-40-00 |
from US $7.37 |
||
|
46
|
46
664-45577-01-40 Shim (T:0.40Mm)UR |
664-45577-01-40 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-50-00 Shim (T:0.40Mm)UR |
664-45577-50-00 |
from US $6.35 |
||
|
46
|
46
664-45577-01-50 Shim (T:0.50Mm)UR |
664-45577-01-50 |
US $7.37 |
||
| replacement | |||||
|
46
|
46
664-45577-60-00 Shim (T:0.50Mm)UR |
664-45577-60-00 |
from US $7.37 |
||
|
47
|
47
664-45576-00-00 Washer, Thrust 2UN |
664-45576-00-00 |
from US $12.18 |
||
|
48
|
48
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $6.09 |
||
|
49
|
49
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
50
|
50
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $5.74 |
||
|
51
|
51
90214-45M02-00 Washer, Claw |
90214-45M02-00 |
from US $7.51 |
||
|
52
|
52
664-45384-02-00 Nut |
664-45384-02-00 |
from US $29.86 |
||
|
53
|
53
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.60 |
||
|
54
|
54
689-44312-00-9M Cover, Water Pump HousingCover, water pump housing (long) LONG |
689-44312-00-9M |
US $59.13 |
||
| replacement | |||||
|
54
|
54
689-44312-00-CA Cover, Water Pump HousingLONG |
689-44312-00-CA |
US $33.48 |
||
