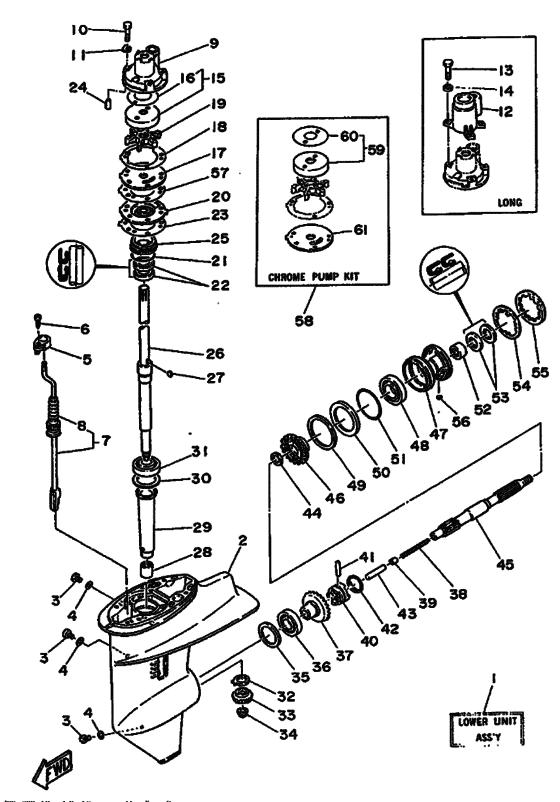

Lower casing & drive 1 Diagram Yamaha 25 (E)MHS/L
- Year
- 1987
- Model
- 25D
- Model code
- 695
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-45300-03-EJ
Lower Unit Assy
U.R. |
689-45300-03-EJ |
— | ||
| replacements | |||||
|
1
|
1
689-45300-06-EJ
Lower Unit Assy
U.R. |
689-45300-06-EJ |
— | ||
|
1
|
1
689-45300-04-EJ
Lower Unit Assy
U.R. |
689-45300-04-EJ |
— | ||
|
1
|
1
689-45300-13-EJ
Lower Unit Assy
U.R. |
689-45300-13-EJ |
— | ||
| replacement | |||||
|
1
|
1
689-45300-17-EJ
Lower Unit Assy
U.R. |
689-45300-17-EJ |
— | ||
|
2
|
2
689-45311-02-EJ
Casing, Lower
|
689-45311-02-EJ |
— | ||
| replacement | |||||
|
2
|
2
689-45311-04-EJ
Casing, Lower
|
689-45311-04-EJ |
— | ||
|
3
|
3
90430-08014-00
Gasket
|
90430-08014-00 |
— | ||
|
4
|
4
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
4
|
4
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
5
|
5
689-44176-01-00
Bracket
|
689-44176-01-00 |
— | ||
|
6
|
6
97780-50110-00 Screw, Pan Head |
97780-50110-00 |
from US $2.27 |
||
| replacement | |||||
|
6
|
6
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
|
7
|
7
664-44150-01-00
Shift Cam Assembly
U.R. |
664-44150-01-00 |
— | ||
|
7
|
7
664-44150-11-00 Shift Cam AssemblyU.R. |
664-44150-11-00 |
US $106.28 |
||
|
7
|
7
664-44150-21-00
Shift Cam Assy
U.R. |
664-44150-21-00 |
— | ||
|
8
|
8
664-44147-00-00 Boot, Shift Rod |
664-44147-00-00 |
from US $9.49 |
||
|
9
|
9
689-44311-03-00 Housing, Water Pump |
689-44311-03-00 |
from US $47.99 |
||
|
10
|
10
90101-06M56-00 Bolt |
90101-06M56-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
11
|
11
90209-06M04-00
Washer
|
90209-06M04-00 |
— | ||
|
12
|
12
689-44312-00-9M Cover, Water Pump HousingCover, water pump housing (long) |
689-44312-00-9M |
US $59.13 |
||
| replacement | |||||
|
12
|
12
689-44312-00-CA Cover, Water Pump Housing |
689-44312-00-CA |
US $33.48 |
||
|
13
|
13
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
13
|
13
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
689-W4432-02-00 Insert Cartridge Comp |
689-W4432-02-00 |
from US $35.33 |
||
|
16
|
16
689-44367-01-00 Damper, Water Seal 3 |
689-44367-01-00 |
from US $6.94 |
||
|
17
|
17
689-44323-03-00 Outer Plate, Cartridge |
689-44323-03-00 |
from US $15.19 |
||
|
18
|
18
689-44324-01-00 Gasket, Cartridge |
689-44324-01-00 |
US $8.08 |
||
| replacement | |||||
|
18
|
18
689-44324-A0-00 Gasket, Cartridge |
689-44324-A0-00 |
from US $8.08 |
||
|
19
|
19
689-44352-02-00 Impeller |
689-44352-02-00 |
from US $24.23 |
||
|
20
|
20
648-44325-02-9M
Protector, Oil Seal
|
648-44325-02-9M |
— | ||
|
21
|
21
93210-40M10-00 O-Ring |
93210-40M10-00 |
from US $3.60 |
||
|
22
|
22
931-01220-67-00 Oil Seal |
931-01220-67-00 |
from US $8.05 |
||
|
23
|
23
689-44315-01-00 Gasket, Water Pump |
689-44315-01-00 |
US $9.63 |
||
| replacement | |||||
|
23
|
23
689-44315-A0-00 Gasket, Water Pump |
689-44315-A0-00 |
from US $8.69 |
||
|
24
|
24
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
25
|
25
689-45344-00-94 Cover, Oil Seal |
689-45344-00-94 |
from US $47.53 |
||
|
26
|
26
689-45501-00-00 Drive Shaft CompU.R. |
689-45501-00-00 |
from US $421 |
||
|
26
|
26
689-45501-01-00
Drive Shaft Comp
U.R. |
689-45501-01-00 |
— | ||
|
26
|
26
689-45501-20-00
Drive Shaft Comp
U.R. |
689-45501-20-00 |
— | ||
|
27
|
27
664-44338-00-00 Key, Woodruff |
664-44338-00-00 |
from US $6.11 |
||
|
28
|
28
93315-017U4-00 Bearing |
93315-017U4-00 |
from US $52.31 |
||
|
29
|
29
689-45536-00-00 Sleeve, Drive Shaft |
689-45536-00-00 |
US $15.42 |
||
|
30
|
30
664-45587-00-05
Shim 3
U.R. |
664-45587-00-05 |
— | ||
|
30
|
30
664-45587-00-08 Shim 3Shim 3 (0.08mm) U.R. |
664-45587-00-08 |
from US $4.41 |
||
|
30
|
30
664-45587-00-12 Shim (T:0.12Mm)U.R. |
664-45587-00-12 |
US $5.81 |
||
| replacement | |||||
|
30
|
30
664-45587-10-00 Shim (T:0.12Mm)U.R. |
664-45587-10-00 |
from US $5.09 |
||
|
30
|
30
664-45587-00-30 Shim (T:0.3Mm)Shim 3 (0.30mm) U.R. |
664-45587-00-30 |
US $5.81 |
||
| replacement | |||||
|
30
|
30
664-45587-40-00 Shim (T:0.30Mm)U.R. |
664-45587-40-00 |
from US $5.09 |
||
|
30
|
30
664-45587-00-50 Shim (T:0.5Mm)U.R. |
664-45587-00-50 |
US $5.81 |
||
| replacement | |||||
|
30
|
30
664-45587-60-00 Shim (T:0.50Mm)U.R. |
664-45587-60-00 |
from US $5.09 |
||
|
31
|
31
93332-000U4-00 Bearing |
93332-000U4-00 |
from US $40.48 |
||
|
32
|
32
664-45552-00-00
Bearing, Plain
|
664-45552-00-00 |
— | ||
| replacement | |||||
|
32
|
32
664-45552-09-00
Bearing, Plain
|
664-45552-09-00 |
— | ||
|
33
|
33
689-45551-00-00 Pinion (13T) |
689-45551-00-00 |
from US $107.07 |
||
|
34
|
34
90179-09M02-00 Nut |
90179-09M02-00 |
from US $5.74 |
||
|
35
|
35
664-45567-00-05 ShimU.R. |
664-45567-00-05 |
US $4.41 |
||
|
35
|
35
664-45567-00-08 ShimU.R. |
664-45567-00-08 |
US $4.41 |
||
|
35
|
35
664-45567-00-12 Shim (T:0.12Mm)U.R. |
664-45567-00-12 |
US $5.81 |
||
| replacement | |||||
|
35
|
35
664-45567-10-00 Shim (T:0.12Mm)U.R. |
664-45567-10-00 |
from US $5.09 |
||
|
35
|
35
664-45567-00-30 Shim (T:0.30Mm)Shim 1 (0.30mm) U.R. |
664-45567-00-30 |
US $5.81 |
||
| replacement | |||||
|
35
|
35
664-45567-40-00 Shim (T:0.30Mm)U.R. |
664-45567-40-00 |
from US $5.09 |
||
|
35
|
35
664-45567-00-50 Shim (T:0.50Mm)U.R. |
664-45567-00-50 |
US $5.81 |
||
| replacement | |||||
|
35
|
35
664-45567-60-00 Shim (T:0.50Mm)U.R. |
664-45567-60-00 |
from US $5.09 |
||
|
36
|
36
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
37
|
37
689-45560-00-00 Gear |
689-45560-00-00 |
US $236.25 |
||
| replacement | |||||
|
37
|
37
689-45560-10-00 Gear |
689-45560-10-00 |
from US $236.25 |
||
|
38
|
38
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $3.04 |
||
|
39
|
39
648-45634-00-00
Slide, Shaft
|
648-45634-00-00 |
— | ||
|
40
|
40
664-45631-00-00 Clutch, Dog |
664-45631-00-00 |
US $50.57 |
||
| replacement | |||||
|
40
|
40
6FM-45631-00-00 CLUTCH, DOG |
6FM-45631-00-00 |
from US $43.10 |
||
|
41
|
41
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
42
|
42
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
42
|
42
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
43
|
43
648-45635-00-00 Plunger, Shift |
648-45635-00-00 |
from US $4.04 |
||
|
44
|
44
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
45
|
45
689-45611-00-00
Shaft, Propeller
|
689-45611-00-00 |
— | ||
| replacement | |||||
|
45
|
45
689-45611-01-00
Shaft, Propeller
|
689-45611-01-00 |
— | ||
|
46
|
46
689-45571-00-00 Gear 2 (24T) |
689-45571-00-00 |
from US $222.44 |
||
|
47
|
47
689-45331-00-94 Housing, Bearing |
689-45331-00-94 |
US $129.18 |
||
| replacement | |||||
|
47
|
47
689-45331-01-00 Housing, Bearing |
689-45331-01-00 |
from US $80.19 |
||
|
48
|
48
93306-00606-00 BearingBearing (b6006) |
93306-00606-00 |
from US $23.09 |
||
| replacement | |||||
|
48
|
48
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $22.75 |
||
|
49
|
49
664-45577-00-05
Shim
U.R. |
664-45577-00-05 |
— | ||
|
49
|
49
664-45577-00-08
Shim
U.R. |
664-45577-00-08 |
— | ||
|
49
|
49
664-45577-00-12 Shim (T:0.12Mm)U.R. |
664-45577-00-12 |
US $7.37 |
||
| replacement | |||||
|
49
|
49
664-45577-10-00 Shim (T:0.12Mm)U.R. |
664-45577-10-00 |
from US $7.37 |
||
|
49
|
49
664-45577-00-30 Shim (T:0.30Mm)Shim 2 (0.30mm) U.R. |
664-45577-00-30 |
US $7.37 |
||
| replacement | |||||
|
49
|
49
664-45577-40-00 Shim (T:0.30Mm)U.R. |
664-45577-40-00 |
from US $7.37 |
||
|
49
|
49
664-45577-00-50 Shim (T:0.50Mm)U.R. |
664-45577-00-50 |
US $7.37 |
||
| replacement | |||||
|
49
|
49
664-45577-60-00 Shim (T:0.50Mm)U.R. |
664-45577-60-00 |
from US $7.37 |
||
|
50
|
50
664-45576-00-00 Washer, Thrust 2U.R. |
664-45576-00-00 |
from US $12.18 |
||
|
51
|
51
93210-60M17-00 O-Ring |
93210-60M17-00 |
US $6.09 |
||
| replacement | |||||
|
51
|
51
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $6.09 |
||
|
52
|
52
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
53
|
53
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $5.74 |
||
|
54
|
54
90214-45M00-00 Washer, Claw |
90214-45M00-00 |
US $7.51 |
||
| replacement | |||||
|
54
|
54
90214-45M02-00 Washer, Claw |
90214-45M02-00 |
from US $7.51 |
||
|
55
|
55
664-45384-00-00 Ecrou |
664-45384-00-00 |
US $42.14 |
||
| replacement | |||||
|
55
|
55
664-45384-02-00 Nut |
664-45384-02-00 |
from US $29.86 |
||
|
56
|
56
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.60 |
||
|
57
|
57
689-44316-00-00 Gasket, Water Pump Pump |
689-44316-00-00 |
US $6.94 |
||
| replacement | |||||
|
57
|
57
689-44316-A0-00 Gasket, Water Pump |
689-44316-A0-00 |
from US $6.94 |
||
|
58
|
58
689-W0078-3A-00 Chrome Pump Kit |
689-W0078-3A-00 |
from US $125.17 |
||
|
59
|
59
689-W4432-61-00 Insert Cartridge Comp |
689-W4432-61-00 |
from US $66.59 |
||
|
60
|
60
689-44367-01-00 Damper, Water Seal 3 |
689-44367-01-00 |
from US $6.94 |
||
|
61
|
61
689-44323-43-00 Outer Plate, Cartridge |
689-44323-43-00 |
from US $58.58 |
||
