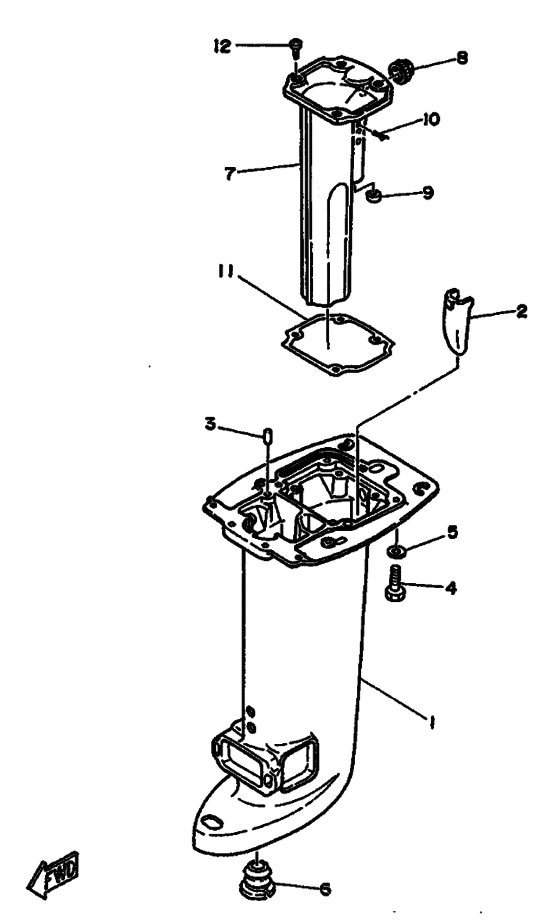

Upper casing Diagram Yamaha 25 (E)MHS/L
- Year
- 1992
- Model
- 25D
- Model code
- 695
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-45111-01-1D
Casing, Upper
UR |
689-45111-01-1D |
— | ||
| replacement | |||||
|
1
|
1
689-45101-01-1D
Cas1Ng Upper Comp
UR |
689-45101-01-1D |
— | ||
|
1
|
1
689-45111-10-1D
Casing, Upper
UR |
689-45111-10-1D |
— | ||
| replacements | |||||
|
1
|
1
689-45101-13-1D
Casing Upper Comp
UR |
689-45101-13-1D |
— | ||
|
1
|
1
689-45101-11-1D
Cas1Ng Upper Comp
UR |
689-45101-11-1D |
— | ||
|
2
|
2
689-41132-00-94
Manifold, Exhaust
UR |
689-41132-00-94 |
— | ||
|
2
|
2
689-41132-10-94
Manifold, Exhaust
UR |
689-41132-10-94 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
4
|
4
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
4
|
4
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
6
|
6
689-45127-00-00
Seal
|
689-45127-00-00 |
— | ||
|
7
|
7
664-41131-01-94 Manifold, Ext. 1 |
664-41131-01-94 |
US $179.61 |
||
| replacement | |||||
|
7
|
7
664-41131-01-00 MANIFOLD, EXT. 1 |
664-41131-01-00 |
from US $99.25 |
||
|
8
|
8
664-41133-00-00 Gasket, Exhaust Manifold 1 |
664-41133-00-00 |
from US $15.80 |
||
|
9
|
9
664-41135-00-00 Gasket, Exhaust Manifold |
664-41135-00-00 |
from US $11.03 |
||
|
10
|
10
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
11
|
11
664-41134-A0-00 Gasket, Exhaust Manifold |
664-41134-A0-00 |
from US $10.22 |
||
|
12
|
12
92580-06016-00 Screw |
92580-06016-00 |
US $2.55 |
||
| replacement | |||||
|
12
|
12
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
