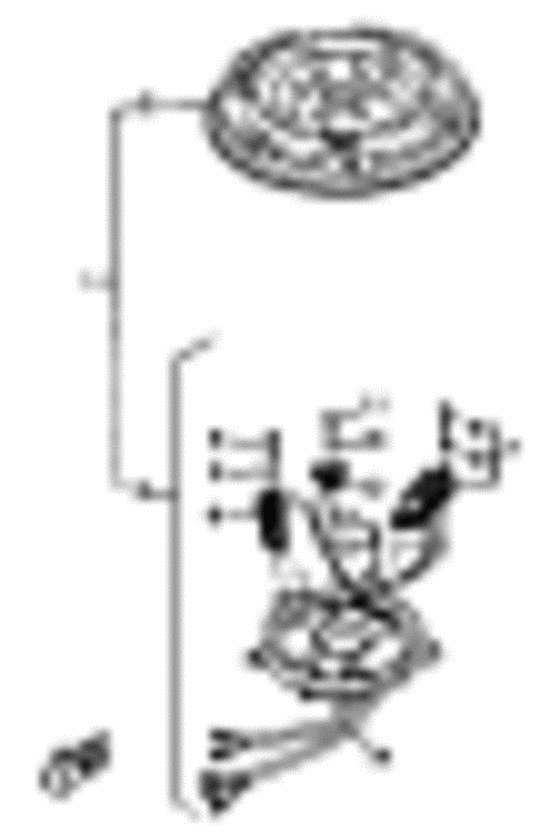

Cdi magneto Diagram Yamaha 25 ES/L
- Year
- 1985
- Model
- 25
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
689-85550-41-00
Rotor Assembly
|
689-85550-41-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
689-85560-A2-00
Base Assembly
|
689-85560-A2-00 |
— | ||
|
4
|
4
689-81311-40-00 Coil, Ignition 1 |
689-81311-40-00 |
from US $156.74 |
||
|
5
|
5
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
5
|
5
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
6
|
6
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
689-81303-A0-00
Lighting Coil Assembly
|
689-81303-A0-00 |
— | ||
|
8
|
8
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
8
|
8
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
689-85580-40-00
Coil, Pulser
|
689-85580-40-00 |
— | ||
|
11
|
11
985-11040-25-00
Screw, Pan Head
|
985-11040-25-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
12
|
12
985-11040-06-00
Screw, Pan Head (98502-04006)
98502-04006 |
985-11040-06-00 |
— | ||
| replacements | |||||
|
12
|
12
98517-04006-00 Screw, Pan Head98502-04006 |
98517-04006-00 |
from US $1.28 |
||
|
12
|
12
985-17040-16-00 Screw, Pan Head98502-04006 |
985-17040-16-00 |
from US $1.52 |
||
|
13
|
13
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
14
|
14
689-81315-40-00
Lead Wire Assembly
|
689-81315-40-00 |
— | ||
