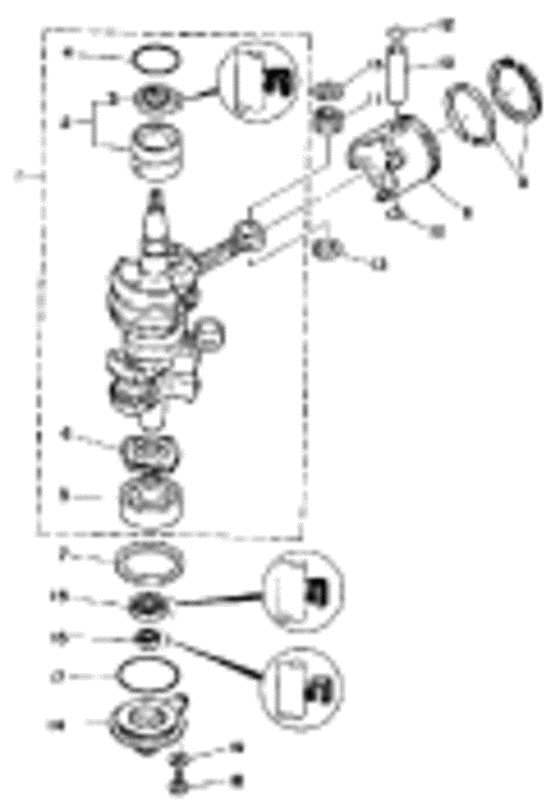

Crank piston Diagram Yamaha 25 ES/L
- Year
- 1989
- Model
- 25
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-11400-10-00 Crankshaft Assembly |
6L2-11400-10-00 |
US $1,510.01 |
||
|
2
|
2
933-13628-U0-00
Bearing, Cylinder#13
|
933-13628-U0-00 |
— | ||
|
3
|
3
93102-26M27-00 Oil Seal |
93102-26M27-00 |
from US $10.63 |
||
|
4
|
4
93210-42159-00 O-Ring |
93210-42159-00 |
from US $4.86 |
||
|
5
|
5
93306-305U5-00 Bearing |
93306-305U5-00 |
from US $39.93 |
||
| replacement | |||||
|
5
|
5
93306-305U3-00 Bearing |
93306-305U3-00 |
from US $39.93 |
||
|
6
|
6
6J8-11536-00-00 Gear, Drive |
6J8-11536-00-00 |
from US $135.40 |
||
|
7
|
7
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.86 |
||
|
8
|
8
6L2-11635-00-00 Piston (0.25Mm O/s)0.25MM O/S |
6L2-11635-00-00 |
from US $58.24 |
||
|
8
|
8
6L2-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S |
6L2-11636-00-00 |
from US $53.86 |
||
|
8
|
8
6L2-11631-00-97 Piston (Std) |
6L2-11631-00-97 |
from US $52.86 |
||
|
9
|
9
6L2-11610-10-00 Piston Ring Set (0.25Mm O/s)0.25MM O/S |
6L2-11610-10-00 |
from US $38.04 |
||
|
9
|
9
6L2-11610-20-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S |
6L2-11610-20-00 |
from US $36.02 |
||
|
9
|
9
6L2-11610-00-00 Piston Ring Set (Std) |
6L2-11610-00-00 |
from US $38.72 |
||
|
10
|
10
648-11633-00-00 Pin, Piston |
648-11633-00-00 |
from US $8.08 |
||
|
11
|
11
93602-18M12-00 Pin, Dowel |
93602-18M12-00 |
from US $2.35 |
||
|
12
|
12
93450-20026-00 Circlip |
93450-20026-00 |
from US $2.91 |
||
|
13
|
13
90201-18522-00 Washer, Plate |
90201-18522-00 |
from US $1.70 |
||
|
14
|
14
6L2-15396-00-9M
Housing, Oil Seal
|
6L2-15396-00-9M |
— | ||
| replacement | |||||
|
14
|
14
6L2-15396-00-CA
Housing, Oil Seal
|
6L2-15396-00-CA |
— | ||
|
15
|
15
93102-25142-00 Oil Seal |
93102-25142-00 |
from US $14.48 |
||
|
16
|
16
93101-13M37-00 Oil Seal |
93101-13M37-00 |
from US $7.07 |
||
|
17
|
17
93210-56M80-00 O-Ring |
93210-56M80-00 |
from US $3.89 |
||
|
18
|
18
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
