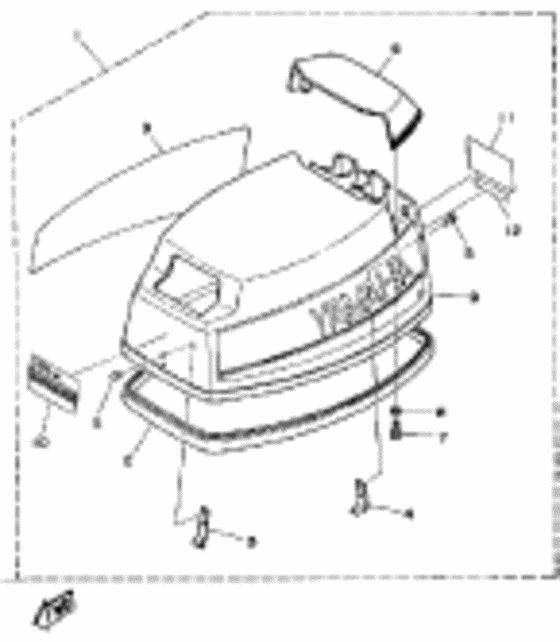

Top cowling Diagram Yamaha 25 ES/L
- Year
- 1989
- Model
- 25
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-42610-40-EK
Top Cowling Assembly
|
6L2-42610-40-EK |
— | ||
|
2
|
2
6L2-42615-00-00 Seal |
6L2-42615-00-00 |
from US $52.15 |
||
|
3
|
3
6G1-42651-70-00 Hook 1 |
6G1-42651-70-00 |
US $11.33 |
||
| replacement | |||||
|
3
|
3
6G1-42651-71-00 Hook |
6G1-42651-71-00 |
from US $11.33 |
||
|
4
|
4
6G1-42647-00-00 Holder, Clamp Band |
6G1-42647-00-00 |
from US $8.50 |
||
|
5
|
5
90266-04M00-00 Rivet |
90266-04M00-00 |
from US $2.83 |
||
|
6
|
6
6L2-42613-00-EK
Molding, Air Duct
|
6L2-42613-00-EK |
— | ||
| replacement | |||||
|
6
|
6
6L2-42613-01-EK
GRAPHIC, FRONT
|
6L2-42613-01-EK |
— | ||
|
7
|
7
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
7
|
7
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
7
|
7
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
9
|
9
6L2-W0070-41-00
Graphic Set
|
6L2-W0070-41-00 |
— | ||
|
10
|
10
689-42677-01-00
Graphic, Front
|
689-42677-01-00 |
— | ||
|
11
|
11
695-42678-10-00
Graphic, Rear
|
695-42678-10-00 |
— | ||
|
12
|
12
6G1-42683-00-00
Mark, Cowling 3
|
6G1-42683-00-00 |
— | ||
