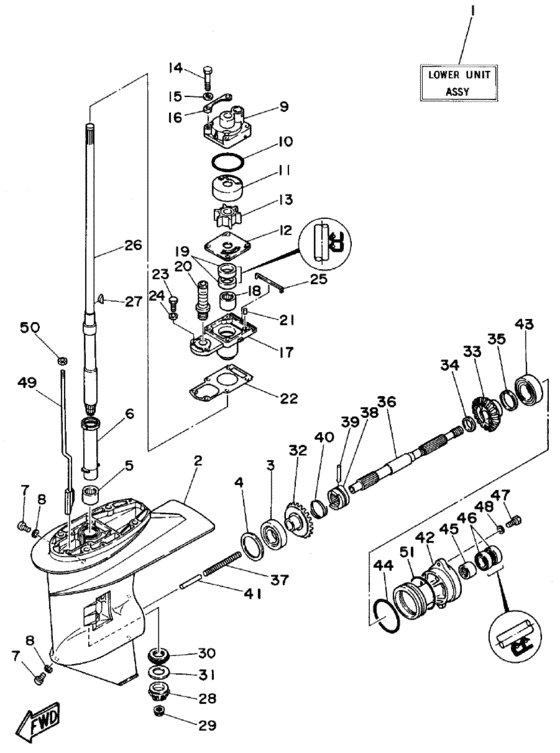

Lower casing - drive Diagram Yamaha 25 MS/LH
- Year
- 1995
- Model
- 25
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-45300-02-4D Lower Unit Assy |
6L2-45300-02-4D |
US $2,112 |
||
| replacements | |||||
|
1
|
1
6L2-45300-04-8D LOWER UNIT ASSY (S) |
6L2-45300-04-8D |
US $2,112 |
||
|
1
|
1
6L2-45300-05-8D Lower Unit Assy |
6L2-45300-05-8D |
US $1,883.17 |
||
|
1
|
1
6L2-45300-12-4D Lower Unit Assy |
6L2-45300-12-4D |
US $2,112 |
||
| replacements | |||||
|
1
|
1
6L2-45300-14-8D LOWER UNIT ASSY (L) |
6L2-45300-14-8D |
from US $1,578.54 |
||
|
1
|
1
6L2-45300-15-8D LOWER UNIT ASSY |
6L2-45300-15-8D |
from US $1,589.19 |
||
|
2
|
2
6L2-45311-01-4D Casing, Lower |
6L2-45311-01-4D |
US $663.96 |
||
| replacement | |||||
|
2
|
2
6L2-45311-02-8D CASING, LOWER |
6L2-45311-02-8D |
from US $357.01 |
||
|
3
|
3
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
4
|
4
6L2-45567-00-10 Shim (T:1.0Mm) |
6L2-45567-00-10 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-00-00 Shim (T:1.0Mm) |
6L2-45567-00-00 |
from US $7.49 |
||
|
4
|
4
6L2-45567-00-11 Shim (T:1.1Mm) |
6L2-45567-00-11 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-10-00 Shim (T:1.1Mm) |
6L2-45567-10-00 |
from US $7.49 |
||
|
4
|
4
6L2-45567-00-12 Shim (T:1.2Mm) |
6L2-45567-00-12 |
US $7.08 |
||
| replacements | |||||
|
4
|
4
6L2-45567-20-00 Shim (T:1.2Mm) |
6L2-45567-20-00 |
from US $7.08 |
||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
6L2-45567-00-13 Shim (T:1.3Mm) |
6L2-45567-00-13 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-30-00 Shim (T:1.3Mm) |
6L2-45567-30-00 |
from US $7.49 |
||
|
4
|
4
6L2-45567-00-14 Shim (T:1.4Mm) |
6L2-45567-00-14 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-40-00 Shim (T:1.4Mm) |
6L2-45567-40-00 |
from US $7.49 |
||
|
5
|
5
93315-220V9-00 Bearing |
93315-220V9-00 |
from US $45.18 |
||
|
6
|
6
6L2-45536-00-00 Sleeve, Drive Shaft |
6L2-45536-00-00 |
from US $19.13 |
||
|
7
|
7
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
7
|
7
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.33 |
||
|
8
|
8
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.39 |
||
| replacement | |||||
|
8
|
8
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
9
|
9
6L2-44311-00-00 Housing, Water Pump |
6L2-44311-00-00 |
US $37.86 |
||
| replacement | |||||
|
9
|
9
6L2-44311-01-00 Housing, Water Pump |
6L2-44311-01-00 |
from US $14.82 |
||
|
10
|
10
93210-45161-00 O-Ring |
93210-45161-00 |
from US $2.70 |
||
|
11
|
11
6L2-44322-00-00 Insert, Cartridge |
6L2-44322-00-00 |
from US $8.08 |
||
|
12
|
12
6L2-44323-00-00 Outer Plate, Cartridge |
6L2-44323-00-00 |
from US $4.38 |
||
|
13
|
13
6L2-44352-00-00 Impeller |
6L2-44352-00-00 |
from US $25.96 |
||
|
14
|
14
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
6L2-44328-00-00 Plate |
6L2-44328-00-00 |
from US $3.97 |
||
|
17
|
17
6L2-45331-00-5B Housing, Bearing |
6L2-45331-00-5B |
US $129.18 |
||
| replacement | |||||
|
17
|
17
6L2-45331-00-CA Housing, Bearing |
6L2-45331-00-CA |
from US $84.84 |
||
|
18
|
18
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
19
|
19
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $6.40 |
||
| replacement | |||||
|
19
|
19
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $4.38 |
||
|
20
|
20
6L2-44147-00-00 Boot, Shift Rod |
6L2-44147-00-00 |
from US $8.22 |
||
|
21
|
21
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
22
|
22
6L2-45315-A0-00 Packing, Lower Casing |
6L2-45315-A0-00 |
from US $2.36 |
||
|
23
|
23
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
6L2-45375-00-00 Damper, Seal |
6L2-45375-00-00 |
from US $6.38 |
||
|
26
|
26
6L2-45510-00-00 Drive Shaft Assy |
6L2-45510-00-00 |
from US $383.63 |
||
|
26
|
26
6L2-45510-10-00 Drive Shaft Assy |
6L2-45510-10-00 |
from US $394.58 |
||
|
27
|
27
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $6.40 |
||
|
28
|
28
6L2-45551-01-00 Pinion (13T)13T |
6L2-45551-01-00 |
from US $73.92 |
||
|
29
|
29
90179-10M14-00 Nut |
90179-10M14-00 |
from US $9.35 |
||
|
30
|
30
93341-320U0-00 Bearing |
93341-320U0-00 |
from US $26.49 |
||
|
31
|
31
6L2-45587-00-15 Shim (T:1.5Mm) |
6L2-45587-00-15 |
US $10.20 |
||
| replacement | |||||
|
31
|
31
6L2-45587-00-00 Shim (T:1.5Mm) |
6L2-45587-00-00 |
from US $10.20 |
||
|
31
|
31
6L2-45587-00-16 Shim (T:1.6Mm) |
6L2-45587-00-16 |
US $9.21 |
||
| replacement | |||||
|
31
|
31
6L2-45587-10-00 Shim (T:1.6Mm) |
6L2-45587-10-00 |
from US $9.21 |
||
|
32
|
32
6L2-45560-00-00 Gear |
6L2-45560-00-00 |
US $212.77 |
||
| replacement | |||||
|
32
|
32
6L2-45560-10-00 Gear 1 (27T) |
6L2-45560-10-00 |
from US $175.57 |
||
|
33
|
33
6L2-45571-00-00 Gear 2 (27T)27T |
6L2-45571-00-00 |
from US $178.09 |
||
|
34
|
34
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
35
|
35
6L2-45577-00-10 Shim (T:1.0Mm) |
6L2-45577-00-10 |
US $9.21 |
||
| replacement | |||||
|
35
|
35
6L2-45577-00-00 Shim (T:1.0Mm) |
6L2-45577-00-00 |
from US $9.71 |
||
|
35
|
35
6L2-45577-00-11 Shim (T:1.1Mm) |
6L2-45577-00-11 |
US $9.21 |
||
| replacement | |||||
|
35
|
35
6L2-45577-10-00 Shim (T:1.1Mm) |
6L2-45577-10-00 |
from US $9.71 |
||
|
35
|
35
6L2-45577-00-12 Shim (T:1.2Mm) |
6L2-45577-00-12 |
US $9.21 |
||
| replacement | |||||
|
35
|
35
6L2-45577-20-00 Shim (T:1.2Mm) |
6L2-45577-20-00 |
from US $9.71 |
||
|
35
|
35
6L2-45577-00-13 Shim (T:1.3Mm) |
6L2-45577-00-13 |
US $9.21 |
||
| replacement | |||||
|
35
|
35
6L2-45577-30-00 Shim (T:1.3Mm) |
6L2-45577-30-00 |
from US $9.71 |
||
|
36
|
36
6L2-45611-00-00 Shaft, Propeller |
6L2-45611-00-00 |
from US $343.75 |
||
|
37
|
37
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $3.04 |
||
|
38
|
38
6L2-45631-00-00 Clutch, Dog |
6L2-45631-00-00 |
from US $85.66 |
||
|
39
|
39
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
40
|
40
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
40
|
40
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
41
|
41
648-45635-00-00 Plunger, Shift |
648-45635-00-00 |
from US $4.04 |
||
|
42
|
42
6L2-45361-02-EK Cap, Lower Casing |
6L2-45361-02-EK |
US $98.37 |
||
| replacement | |||||
|
42
|
42
6L2-45361-03-8D Cap, Lower Casing |
6L2-45361-03-8D |
from US $98.37 |
||
|
43
|
43
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $22.75 |
||
|
44
|
44
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $6.09 |
||
|
45
|
45
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
46
|
46
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $5.74 |
||
|
47
|
47
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
47
|
47
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
49
|
49
6L2-44150-00-00 Shift Cam Assy |
6L2-44150-00-00 |
from US $108.43 |
||
|
49
|
49
6L2-44150-10-00 Shift Cam Assy |
6L2-44150-10-00 |
from US $103.37 |
||
|
50
|
50
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
51
|
51
93210-60M99-00 O-Ring |
93210-60M99-00 |
from US $4.39 |
||
