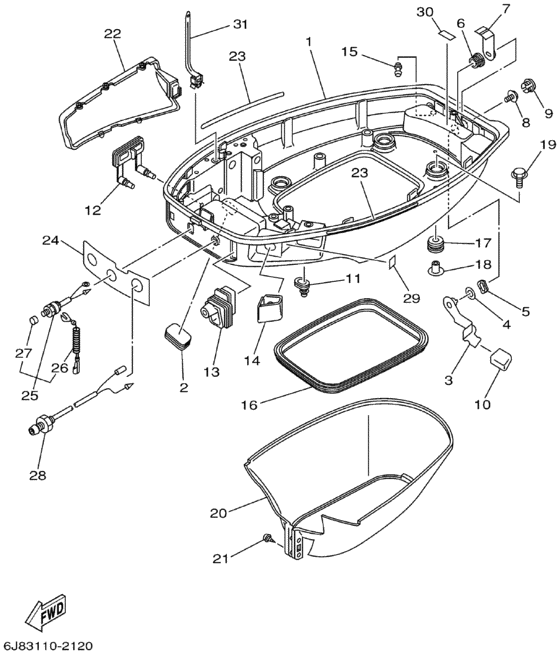

Bottom cowling Diagram Yamaha 25 S/L
- Year
- 2002
- Model
- 25
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-42711-03-4D Cowling, Bottom 1 |
6J8-42711-03-4D |
US $641.52 |
||
|
2
|
2
6H4-42726-00-00 Grommet |
6H4-42726-00-00 |
US $4.38 |
||
|
3
|
3
6J8-42815-00-4D Lever, Clamp |
6J8-42815-00-4D |
US $26.49 |
||
|
4
|
4
90202-12M25-00 Washer, Plate |
90202-12M25-00 |
from US $1.98 |
||
|
5
|
5
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
6
|
6
90386-12M61-00 Bush |
90386-12M61-00 |
from US $1.98 |
||
|
7
|
7
6J8-42816-00-00 Lever, Clamp |
6J8-42816-00-00 |
from US $16.61 |
||
|
8
|
8
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
9
|
9
6J8-42831-00-00 Bushing |
6J8-42831-00-00 |
from US $7.51 |
||
|
10
|
10
6J8-42728-01-00 Cap |
6J8-42728-01-00 |
from US $3.40 |
||
|
11
|
11
6G1-42727-00-00 Grommet 4 |
6G1-42727-00-00 |
US $7.51 |
||
|
12
|
12
6J8-42724-00-00 Grommet |
6J8-42724-00-00 |
from US $12.89 |
||
|
13
|
13
6J8-42726-00-00 Grommet |
6J8-42726-00-00 |
US $8.22 |
||
|
14
|
14
6J8-42725-01-00 Grommet |
6J8-42725-01-00 |
from US $7.37 |
||
|
15
|
15
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
15
|
15
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.91 |
||
|
16
|
16
6J8-42716-00-00 Rubber, Seal 1 |
6J8-42716-00-00 |
US $8.93 |
||
|
17
|
17
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $3.04 |
||
|
18
|
18
90387-06M41-00 Collar |
90387-06M41-00 |
from US $4.04 |
||
|
19
|
19
901-1906M-61-00
Bolt, With Washer
|
901-1906M-61-00 |
— | ||
| replacements | |||||
|
19
|
19
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
19
|
19
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.86 |
||
|
20
|
20
6J8-42741-01-00 Apron |
6J8-42741-01-00 |
from US $41.17 |
||
|
21
|
21
90164-06M01-00 Screw, Tapping |
90164-06M01-00 |
from US $3.83 |
||
|
22
|
22
6J8-42723-01-00 Cover, Bottom |
6J8-42723-01-00 |
from US $20.26 |
||
|
23
|
23
6J8-42735-00-00 Protector |
6J8-42735-00-00 |
from US $2.41 |
||
|
24
|
24
6J8-42719-10-00 Panel, Front Lower |
6J8-42719-10-00 |
from US $11.62 |
||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
689-82575-04-00
Engine Stop Switch Assy
|
689-82575-04-00 |
— | ||
| replacement | |||||
|
25
|
25
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $49.99 |
||
|
26
|
26
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
27
|
27
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
28
|
28
6J8-85410-00-00 Emergency Signal Light Assy |
6J8-85410-00-00 |
from US $37.86 |
||
|
29
|
29
6A1-42792-01-00
Mark (100:1)
100:1 |
6A1-42792-01-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
100:1 |
999-99999-99-00 |
— | ||
|
30
|
30
6E7-42791-00-00
Mark 1
|
6E7-42791-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
90465-13M76-00 Clamp |
90465-13M76-00 |
from US $2.13 |
||
