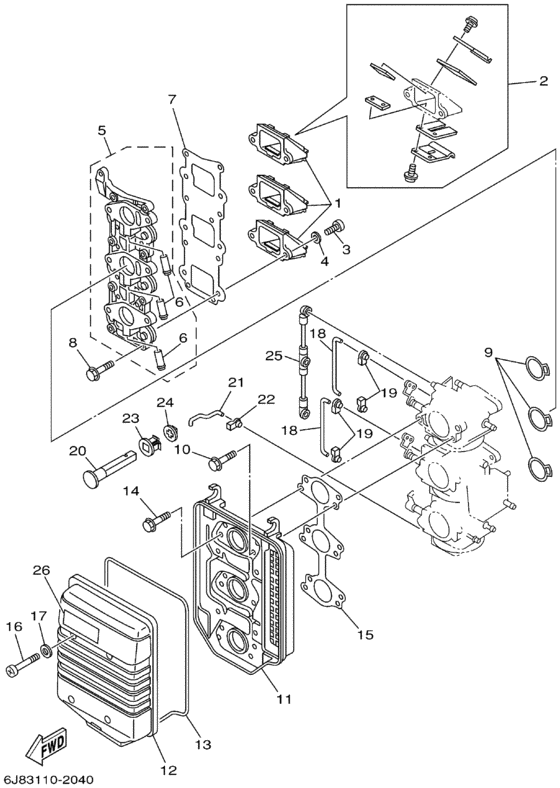

Intake Diagram Yamaha 25 S/L
- Year
- 2002
- Model
- 25
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-13610-00-00 Reed Valve Assy |
6J8-13610-00-00 |
from US $63.68 |
||
|
2
|
2
6J8-W0004-00-00 Reed Set |
6J8-W0004-00-00 |
from US $30.38 |
||
|
3
|
3
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
3
|
3
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
4
|
4
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
6J8-13641-00-94 Manifold, Intake 1 |
6J8-13641-00-94 |
US $105.83 |
||
| replacement | |||||
|
5
|
5
6J8-13641-00-00 CARBURETOR ASSY 1 |
6J8-13641-00-00 |
from US $54.07 |
||
|
7
|
7
6J8-13621-00-00 Gasket, Valve Seat |
6J8-13621-00-00 |
from US $15.68 |
||
|
8
|
8
90119-06MA3-00 Bolt, With Washer |
90119-06MA3-00 |
from US $1.70 |
||
|
9
|
9
6J8-14198-00-00 Gasket |
6J8-14198-00-00 |
from US $3.89 |
||
|
10
|
10
90119-06M32-00 Bolt, With Washer |
90119-06M32-00 |
from US $3.26 |
||
|
11
|
11
6J8-14417-00-00 Cover 1 |
6J8-14417-00-00 |
from US $61.48 |
||
|
12
|
12
6J8-14418-00-00 Cover 2 |
6J8-14418-00-00 |
from US $18.99 |
||
|
13
|
13
6J8-14476-00-00 Seal |
6J8-14476-00-00 |
from US $8.08 |
||
|
14
|
14
90119-05M31-00 Bolt, With Washer |
90119-05M31-00 |
from US $2.41 |
||
|
15
|
15
6J8-14483-A1-00 Gasket |
6J8-14483-A1-00 |
from US $6.51 |
||
|
16
|
16
97880-05040-00 Screw, Pan Head |
97880-05040-00 |
from US $3.12 |
||
| replacement | |||||
|
16
|
16
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
6J8-41259-00-00 Rod, Choke 3 |
6J8-41259-00-00 |
from US $4.53 |
||
|
19
|
19
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
20
|
20
6J8-41271-01-00 Knob, Choke |
6J8-41271-01-00 |
from US $8.93 |
||
|
21
|
21
6J8-41257-00-00 Rod, Choke 2 |
6J8-41257-00-00 |
from US $5.38 |
||
|
22
|
22
6J8-41262-00-00 Joint, Choke Lever |
6J8-41262-00-00 |
from US $2.02 |
||
|
23
|
23
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
24
|
24
6J8-41274-00-00 Grommet 2 |
6J8-41274-00-00 |
US $1.81 |
||
|
25
|
25
6J8-41217-00-00 Rod, Accel. Lever |
6J8-41217-00-00 |
from US $18.32 |
||
|
26
|
26
6A1-83625-41-00 Mark 5 |
6A1-83625-41-00 |
from US $7.25 |
||
