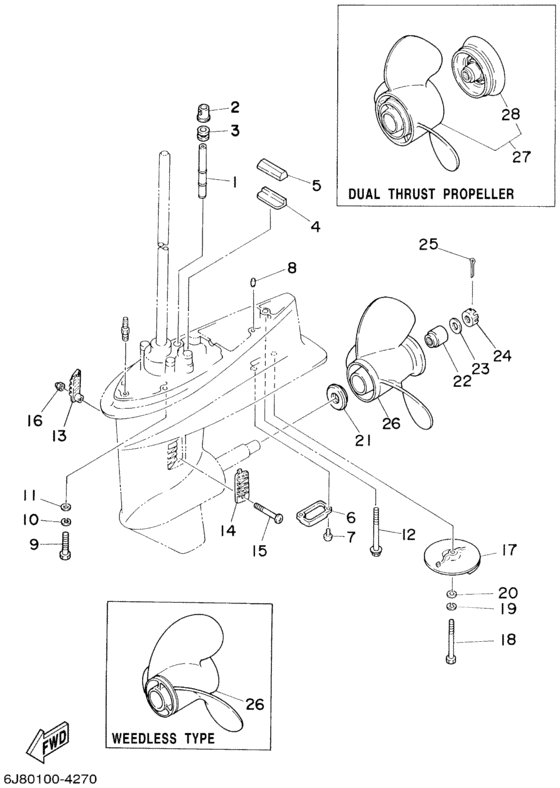

Lower casing drive Diagram Yamaha 25 S/L
- Year
- 2002
- Model
- 25
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-44361-00-00 Tube, Water 1 |
6J8-44361-00-00 |
from US $21.87 |
||
|
2
|
2
6J8-44366-00-00 Damper, Water Seal 2 |
6J8-44366-00-00 |
from US $5.53 |
||
|
3
|
3
663-44367-00-00 Damper, Water Seal 3 |
663-44367-00-00 |
US $3.90 |
||
|
4
|
4
663-45376-00-94
Guide, Seal Damper
|
663-45376-00-94 |
— | ||
| replacement | |||||
|
4
|
4
663-45376-00-00 Guide, Seal Damper |
663-45376-00-00 |
from US $5.82 |
||
|
5
|
5
688-45375-00-00 Damper, Seal |
688-45375-00-00 |
from US $6.66 |
||
|
6
|
6
6J8-45224-10-00 Cover, Water Inlet 3 |
6J8-45224-10-00 |
from US $8.08 |
||
|
7
|
7
97880-06012-00 Screw, Pan Head |
97880-06012-00 |
US $1.56 |
||
| replacement | |||||
|
7
|
7
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
8
|
8
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
9
|
9
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.67 |
||
| replacement | |||||
|
9
|
9
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.67 |
||
|
10
|
10
92995-10100-00 Washer |
92995-10100-00 |
from US $1.66 |
||
| replacement | |||||
|
10
|
10
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
11
|
11
92995-10600-00 Washer, Plate |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
11
|
11
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
12
|
12
90119-08M92-00 Bolt, With Washer(6J8) |
90119-08M92-00 |
from US $6.38 |
||
| replacement | |||||
|
12
|
12
975-75086-85-00 Bolt, With Washer |
975-75086-85-00 |
from US $6.38 |
||
|
13
|
13
689-45214-01-00 Cover, Water Inlet 1 |
689-45214-01-00 |
from US $9.35 |
||
|
14
|
14
6J8-45215-00-00 Cover, Water Inlet 2 |
6J8-45215-00-00 |
from US $8.93 |
||
|
15
|
15
90152-05M04-00 Screw, Countersunk |
90152-05M04-00 |
US $2.98 |
||
| replacement | |||||
|
15
|
15
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
16
|
16
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
16
|
16
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
17
|
17
664-45371-01-00 Tab-Trim |
664-45371-01-00 |
from US $24.30 |
||
|
18
|
18
97075-08020-00 Bolt |
97075-08020-00 |
from US $2.09 |
||
| replacement | |||||
|
18
|
18
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
19
|
19
92995-08100-00 Washer, Spring |
92995-08100-00 |
from US $1.66 |
||
| replacement | |||||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
21
|
21
6L2-45987-01-00 Spacer 1 |
6L2-45987-01-00 |
from US $28.76 |
||
|
22
|
22
689-45997-00-00 Spacer 2 |
689-45997-00-00 |
from US $16.16 |
||
|
23
|
23
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
24
|
24
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $8.78 |
||
|
25
|
25
91490-30022-00 Pin, Cotter |
91490-30022-00 |
from US $1.13 |
||
| replacement | |||||
|
25
|
25
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
26
|
26
664-45970-00-98 Propeller (3X9-1/8"x13"-F)3X9-1/8"X13"-F |
664-45970-00-98 |
US $710.16 |
||
| replacement | |||||
|
26
|
26
664-45970-00-00 Propeller (3X9-1/8"x13"-F)3X9-1/8"X13"-F |
664-45970-00-00 |
from US $710.16 |
||
|
26
|
26
664-45945-00-EL Propeller (3X9-7/8"x10-1/2"-F)3X9-7/8"X10-1/2"-F |
664-45945-00-EL |
US $216.91 |
||
| replacement | |||||
|
26
|
26
664-45945-00-00 Propeller (3X9-7/8"x10-1/2"-F)3X9-7/8"X10-1/2"-F |
664-45945-00-00 |
from US $216.91 |
||
|
26
|
26
664-45947-01-EL Propeller (3X9-7/8"x11-1/4"-F)3X9-7/8"X11-1/4"-F |
664-45947-01-EL |
US $216.91 |
||
| replacement | |||||
|
26
|
26
664-45947-01-00 Propeller (3X9-7/8"x11-1/4"-F)3X9-7/8"X11-1/4"-F |
664-45947-01-00 |
from US $216.91 |
||
|
26
|
26
664-45954-01-EL Propeller (3X9-7/8"x12"-F)3X9-7/8"X12"-F |
664-45954-01-EL |
US $216.91 |
||
| replacement | |||||
|
26
|
26
664-45954-01-00 Propeller (3X9-7/8"x12"-F)3X9-7/8"X12"-F |
664-45954-01-00 |
from US $216.91 |
||
|
26
|
26
664-45949-02-EL
Propeller (3X9-7/8"x13"-F)
3X9-7/8"X13"-F |
664-45949-02-EL |
— | ||
| replacement | |||||
|
26
|
26
664-45949-02-00 Propeller (3X9-7/8"x13"-F)3X9-7/8"X13"-F |
664-45949-02-00 |
from US $236.93 |
||
|
26
|
26
664-45952-00-EL Propeller (3X9-7/8"x14"-F)3X9-7/8"X14"-F |
664-45952-00-EL |
US $216.91 |
||
| replacement | |||||
|
26
|
26
664-45952-00-00 Propeller (3X9-7/8"x14"-F)3X9-7/8"X14"-F |
664-45952-00-00 |
from US $216.91 |
||
|
26
|
26
664-45943-01-EL Propeller (3X9-7/8"x8"-F)3X9-7/8"X8"-F |
664-45943-01-EL |
US $216.91 |
||
| replacement | |||||
|
26
|
26
664-45943-01-00 Propeller (3X9-7/8"x8"-F)3X9-7/8"X8"-F |
664-45943-01-00 |
from US $216.91 |
||
|
26
|
26
664-45941-01-EL Propeller (3X9-7/8"x9"-F)3X9-7/8"X9"-F |
664-45941-01-EL |
US $216.91 |
||
| replacement | |||||
|
26
|
26
664-45941-01-00 Propeller (3X9-7/8"x9"-F)3X9-7/8"X9"-F |
664-45941-01-00 |
from US $216.91 |
||
|
27
|
27
6J8-W4591-00-EL Propeller (3X10-5/8X8-1/4-F)3X10-5/8X8-1/4-F |
6J8-W4591-00-EL |
US $204.48 |
||
| replacement | |||||
|
27
|
27
6J8-W4591-00-00 Propeller (3X10-5/8"x8-1/4"-F)3X10-5/8X8-1/4-F |
6J8-W4591-00-00 |
from US $204.48 |
||
|
28
|
28
6J8-45986-10-98 Ring, Deflector |
6J8-45986-10-98 |
US $27.08 |
||
| replacement | |||||
|
28
|
28
6J8-45986-10-00 Ring, Deflector |
6J8-45986-10-00 |
from US $24.38 |
||
