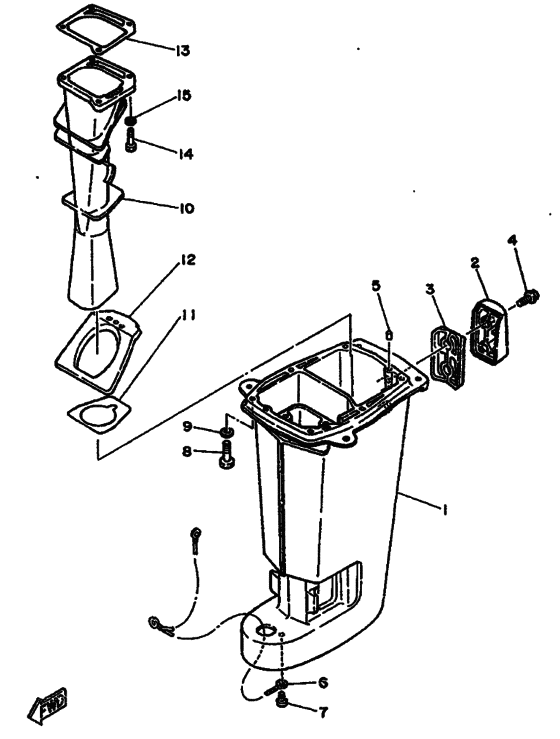

Upper casing Diagram Yamaha 25 EMOS/L
- Year
- 1992
- Model
- 25N
- Model code
- 6L2
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-45111-01-EJ
Casing, Upper
UR |
6L2-45111-01-EJ |
— | ||
| replacement | |||||
|
1
|
1
6L2-45111-02-EJ
Casing, Upper
UR |
6L2-45111-02-EJ |
— | ||
|
1
|
1
6L2-45111-11-EJ
Casing, Upper
UR |
6L2-45111-11-EJ |
— | ||
| replacement | |||||
|
1
|
1
6L2-45111-12-EJ
Casing, Upper
UR |
6L2-45111-12-EJ |
— | ||
|
2
|
2
6L2-45151-00-EJ
Cover, Upper Casing
|
6L2-45151-00-EJ |
— | ||
| replacement | |||||
|
2
|
2
6L2-45151-01-EJ
Cover, Upper Casing
|
6L2-45151-01-EJ |
— | ||
|
3
|
3
6L2-45115-00-00 Gasket, Upper Casing |
6L2-45115-00-00 |
from US $19.27 |
||
|
4
|
4
90159-06M11-00 Screw, With Washer |
90159-06M11-00 |
from US $1.98 |
||
|
5
|
5
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
6
|
6
6L2-82127-00-00 Wire, Lead 2 |
6L2-82127-00-00 |
from US $28.15 |
||
|
7
|
7
90157-06M06-00 Screw, Pan Head |
90157-06M06-00 |
from US $1.98 |
||
|
8
|
8
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
8
|
8
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
6L2-41131-00-5B Pipe D'echappementUR |
6L2-41131-00-5B |
US $157.50 |
||
| replacement | |||||
|
10
|
10
6L2-41131-00-CA Manifold, Ext. 1UR |
6L2-41131-00-CA |
from US $88.18 |
||
|
10
|
10
6L3-41131-00-9M Manifold, Ext. 1UR |
6L3-41131-00-9M |
US $157.50 |
||
| replacement | |||||
|
10
|
10
6L3-41131-00-CA Manifold, Ext. 1UR |
6L3-41131-00-CA |
from US $107.93 |
||
|
11
|
11
6L2-41134-00-00 Gasket, Exhaust Manifold |
6L2-41134-00-00 |
US $16.72 |
||
|
12
|
12
6L2-45123-00-00 Gasket, Muffler |
6L2-45123-00-00 |
US $24.65 |
||
| replacement | |||||
|
12
|
12
6L2-45123-01-00 Gasket, Muffler |
6L2-45123-01-00 |
from US $24.65 |
||
|
13
|
13
6L2-41133-A1-00 Gasket, Exhaust Manifold 1 |
6L2-41133-A1-00 |
US $16.72 |
||
| replacement | |||||
|
13
|
13
6L2-41133-A3-00 Gasket, Exhaust Manifold 1 |
6L2-41133-A3-00 |
from US $16.72 |
||
|
14
|
14
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
