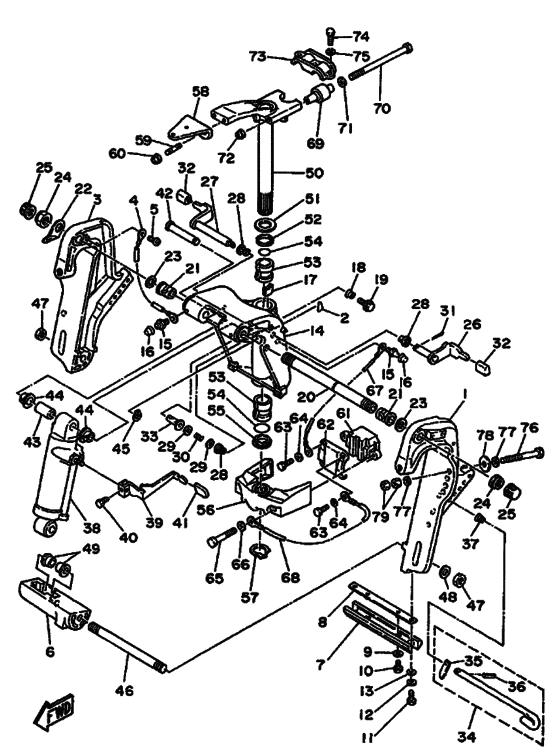

Bracket Diagram Yamaha 25 EOS/L
- Year
- 1990
- Model
- 25Q
- Model code
- 61C
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-43111-02-EJ
Bracket, Clamp
|
6H5-43111-02-EJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
688-43691-01-00
Indicator, Tilt
|
688-43691-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
6H5-43112-03-EJ
Bracket, Clamp
|
6H5-43112-03-EJ |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
5
|
5
97895-06008-00 Screw, Pan Head |
97895-06008-00 |
US $1.56 |
||
| replacements | |||||
|
5
|
5
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
5
|
5
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
6
|
6
6H5-43128-01-EJ
Spacer, Clamp Bracket
|
6H5-43128-01-EJ |
— | ||
|
7
|
7
6H1-45251-02-00 Anode |
6H1-45251-02-00 |
US $22.24 |
||
| replacement | |||||
|
7
|
7
6H1-45251-03-00 Anode |
6H1-45251-03-00 |
from US $21.77 |
||
|
8
|
8
6H1-44526-00-00 Plate |
6H1-44526-00-00 |
from US $11.93 |
||
| replacement | |||||
|
8
|
8
6EK-44536-00-00 Plate 2 |
6EK-44536-00-00 |
from US $12.18 |
||
|
9
|
9
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
10
|
10
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
11
|
11
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6H5-43311-03-EJ
Bracket, Swivel
|
6H5-43311-03-EJ |
— | ||
|
15
|
15
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
15
|
15
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
16
|
16
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
17
|
17
6J8-42528-00-00 Plate, Friction |
6J8-42528-00-00 |
US $21.54 |
||
|
18
|
18
689-43373-01-00 Seal, Damper |
689-43373-01-00 |
US $4.53 |
||
|
19
|
19
90105-06M18-00 Bolt, Flange |
90105-06M18-00 |
from US $2.74 |
||
|
20
|
20
6J8-43131-01-00 Bolt, Clamp Bracket |
6J8-43131-01-00 |
from US $36.36 |
||
|
21
|
21
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
22
|
22
6J8-43113-01-00 Plate, Clamp Bracket |
6J8-43113-01-00 |
from US $6.52 |
||
|
23
|
23
90201-22428-00 Washer, Plate |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
23
|
23
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $4.11 |
||
|
24
|
24
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
24
|
24
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
25
|
25
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
25
|
25
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
26
|
26
6H5-43181-01-00
Lever, Tilt Stop
|
6H5-43181-01-00 |
— | ||
| replacement | |||||
|
26
|
26
6H5-43181-02-00
Lever, Tilt Stop
|
6H5-43181-02-00 |
— | ||
|
27
|
27
6H5-43185-01-00
Lever, Tilt Stop
|
6H5-43185-01-00 |
— | ||
| replacement | |||||
|
27
|
27
6H5-43185-02-00
Lever, Tilt Stop
|
6H5-43185-02-00 |
— | ||
|
28
|
28
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
29
|
29
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
30
|
30
90501-10M21-00 Spring, Compression |
90501-10M21-00 |
US $2.41 |
||
|
31
|
31
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
32
|
32
663-43318-00-00 Cover |
663-43318-00-00 |
from US $5.28 |
||
|
33
|
33
90386-10M19-00
Bush
|
90386-10M19-00 |
— | ||
|
34
|
34
676-43160-02-00 Tilt Rod Assy |
676-43160-02-00 |
from US $38.41 |
||
|
35
|
35
676-43165-00-00 Plate, Tilt Lock |
676-43165-00-00 |
from US $7.37 |
||
|
36
|
36
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
37
|
37
90502-10M04-00 Spring, Conical |
90502-10M04-00 |
from US $1.84 |
||
|
38
|
38
6H5-43170-01-EJ
Shock Absorber Assy
|
6H5-43170-01-EJ |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
6H5-43631-00-00
Lever, Tilt
|
6H5-43631-00-00 |
— | ||
|
40
|
40
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
40
|
40
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
41
|
41
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.89 |
||
|
42
|
42
6H5-43126-02-00
Pin, Upper Shock Mount
|
6H5-43126-02-00 |
— | ||
|
43
|
43
903-8612M-65-00
Bush
|
903-8612M-65-00 |
— | ||
|
44
|
44
90386-12M64-00 Bush |
90386-12M64-00 |
from US $15.02 |
||
|
45
|
45
93410-12M08-00
Circlip
|
93410-12M08-00 |
— | ||
|
46
|
46
90116-18M21-00
Bolt, Stud
|
90116-18M21-00 |
— | ||
|
47
|
47
90170-18M10-00 Nut |
90170-18M10-00 |
from US $7.93 |
||
|
48
|
48
92990-18600-00 Washer |
92990-18600-00 |
US $6.38 |
||
| replacement | |||||
|
48
|
48
92995-18600-00 Washer |
92995-18600-00 |
from US $6.38 |
||
|
49
|
49
90386-18M44-00 Bush |
90386-18M44-00 |
from US $4.86 |
||
|
50
|
50
6H4-42510-01-EJ
Steering Bracket Assy
|
6H4-42510-01-EJ |
— | ||
| replacement | |||||
|
50
|
50
6H4-42510-09-EJ
Steering Bracket Assy
|
6H4-42510-09-EJ |
— | ||
|
51
|
51
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
52
|
52
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
53
|
53
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
54
|
54
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
55
|
55
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
56
|
56
6H4-44551-01-EJ
Housing, Lower Mount Rubber
|
6H4-44551-01-EJ |
— | ||
| replacement | |||||
|
56
|
56
6H4-44551-02-EJ
Hsg Lower M0Unt
|
6H4-44551-02-EJ |
— | ||
|
57
|
57
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
58
|
58
6H4-48511-50-EJ
Hook, Steering
|
6H4-48511-50-EJ |
— | ||
| replacement | |||||
|
58
|
58
6H4-48511-51-4D
Hook, Steering
|
6H4-48511-51-4D |
— | ||
|
59
|
59
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
59
|
59
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
59
|
59
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
60
|
60
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
60
|
60
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
61
|
61
6H4-44557-00-00 Mount Damper, Lower FrontUR |
6H4-44557-00-00 |
from US $74.61 |
||
|
61
|
61
6H4-44557-10-00 Mount Damper, Lower FrontUR |
6H4-44557-10-00 |
from US $74.61 |
||
|
62
|
62
6H4-44553-01-00 Cover, Lower Mount |
6H4-44553-01-00 |
from US $71.39 |
||
|
63
|
63
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
63
|
63
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
63
|
63
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
64
|
64
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
65
|
65
97395-10060-00 Bolt |
97395-10060-00 |
from US $9.21 |
||
| replacement | |||||
|
65
|
65
97095-10060-00 Bolt |
97095-10060-00 |
from US $9.21 |
||
|
66
|
66
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
67
|
67
6H5-82127-00-00
Wire Lead
|
6H5-82127-00-00 |
— | ||
| replacement | |||||
|
67
|
67
6H5-82117-00-00
Wire, Lead
|
6H5-82117-00-00 |
— | ||
|
68
|
68
6H5-82149-00-00
Wire, Lead 3
|
6H5-82149-00-00 |
— | ||
|
69
|
69
6H4-44514-00-00 Mount Damper, Upper Side |
6H4-44514-00-00 |
from US $43.11 |
||
|
70
|
70
90101-08M86-00 Bolt |
90101-08M86-00 |
from US $13.82 |
||
|
71
|
71
90201-09425-00 Washer, Plate |
90201-09425-00 |
from US $5.13 |
||
|
72
|
72
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.52 |
||
| replacement | |||||
|
72
|
72
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.52 |
||
|
73
|
73
6H4-44511-00-94
Cover, Upper Mount
|
6H4-44511-00-94 |
— | ||
| replacement | |||||
|
73
|
73
6H4-44511-00-00
Cover, Upper Mount
|
6H4-44511-00-00 |
— | ||
|
74
|
74
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
74
|
74
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
74
|
74
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
75
|
75
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
76
|
76
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
77
|
77
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
77
|
77
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
78
|
78
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
79
|
79
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
