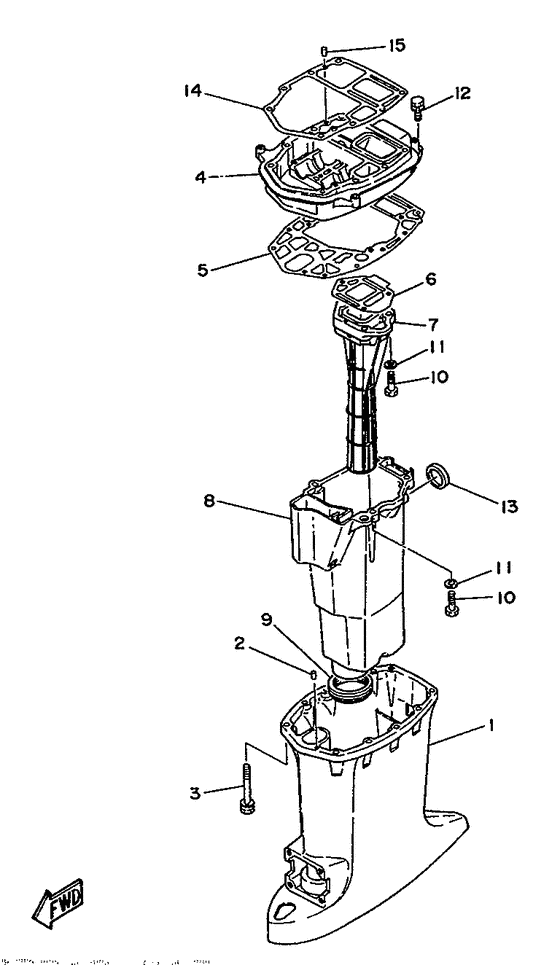

Upper casing Diagram Yamaha 25 EOS/L
- Year
- 1993
- Model
- 25Q
- Model code
- 61C
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H4-45111-00-EJ
Casing, Upper
Ur |
6H4-45111-00-EJ |
— | ||
|
01
|
01
6H4-45111-10-EJ
Casing, Upper
Ur |
6H4-45111-10-EJ |
— | ||
|
02
|
02
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
03
|
03
90119-08M83-00 Bolt, With Washer |
90119-08M83-00 |
from US $3.08 |
||
| replacement | |||||
|
03
|
03
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
04
|
04
6H4-41137-00-94
Guide, Exhaust
|
6H4-41137-00-94 |
— | ||
|
05
|
05
6H4-45114-A1-00 Gasket, Upper Casing |
6H4-45114-A1-00 |
from US $10.84 |
||
|
06
|
06
6H4-41134-A0-00 Gasket, Exhaust Manifold |
6H4-41134-A0-00 |
from US $5.45 |
||
|
07
|
07
6H5-41131-00-5B Manifold, Ext. 1 |
6H5-41131-00-5B |
US $146.29 |
||
| replacement | |||||
|
07
|
07
6H5-41131-00-CA Manifold, Ext |
6H5-41131-00-CA |
from US $140.02 |
||
|
08
|
08
6H4-14711-00-9M
Muffler L
Ur |
6H4-14711-00-9M |
— | ||
| replacement | |||||
|
08
|
08
6H4-14711-00-5B
Muffler
Ur |
6H4-14711-00-5B |
— | ||
|
08
|
08
6H4-14711-10-5B Muffler 1Ur |
6H4-14711-10-5B |
US $167.81 |
||
| replacement | |||||
|
08
|
08
6H4-14711-10-CA JET (#62)Ur |
6H4-14711-10-CA |
from US $167.81 |
||
|
09
|
09
663-45123-00-00 Gasket, Muffler |
663-45123-00-00 |
from US $20.94 |
||
|
10
|
10
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
10
|
10
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
12
|
12
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
12
|
12
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
13
|
13
6H4-41133-00-00 Gasket, Exhaust Manifold 1 |
6H4-41133-00-00 |
from US $4.82 |
||
|
14
|
14
6H4-45113-A0-00 Gasket, Upper Casing |
6H4-45113-A0-00 |
from US $8.76 |
||
|
15
|
15
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
