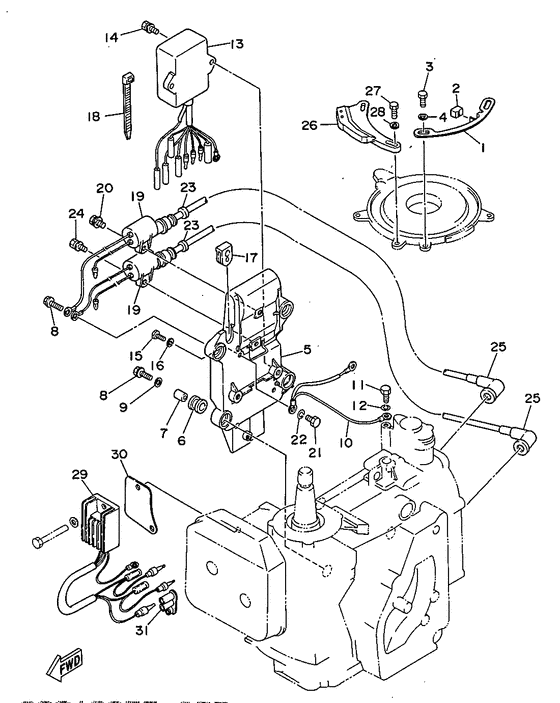

Electrical 1 Diagram Yamaha 25 EOS/L
- Year
- 1997
- Model
- 25Q
- Model code
- 61C
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61N-41615-00-00 Stopper, Magneto Base |
61N-41615-00-00 |
from US $15.26 |
||
|
02
|
02
61N-44194-00-00
Cap
Ur 25v |
61N-44194-00-00 |
— | ||
| replacement | |||||
|
02
|
02
61N-44194-01-00 CapUr 25v |
61N-44194-01-00 |
US $7.36 |
||
|
02
|
02
61T-44194-00-00
Cap
Ur 30g |
61T-44194-00-00 |
— | ||
| replacement | |||||
|
02
|
02
61T-44194-01-00 CapUr 30g |
61T-44194-01-00 |
US $6.94 |
||
|
03
|
03
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
03
|
03
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
04
|
04
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
05
|
05
61N-85542-00-94 Bracket |
61N-85542-00-94 |
from US $47.94 |
||
|
06
|
06
61N-82317-00-00 Damper, Ignition Coil |
61N-82317-00-00 |
US $4.68 |
||
|
07
|
07
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
07
|
07
90387-06119-00 Collar |
90387-06119-00 |
from US $3.26 |
||
|
08
|
08
90119-06M95-00 Bolt, With Washer |
90119-06M95-00 |
US $3.83 |
||
| replacement | |||||
|
08
|
08
90119-06294-00 Bolt, With Washer |
90119-06294-00 |
from US $2.88 |
||
|
09
|
09
90201-06M30-00 Washer, Plate |
90201-06M30-00 |
from US $1.70 |
||
|
10
|
10
61N-82519-01-00 Wire, Earth Lead |
61N-82519-01-00 |
from US $11.33 |
||
|
11
|
11
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
61N-85540-10-00 C.d.i. Unit Assembly |
61N-85540-10-00 |
US $450.12 |
||
| replacements | |||||
|
13
|
13
61N-85540-13-00 C.d.i. Unit Assy |
61N-85540-13-00 |
US $450.12 |
||
|
13
|
13
61N-85540-12-00 C.d.i. Unit Assy |
61N-85540-12-00 |
US $450.12 |
||
|
13
|
13
999-99045-44-00 CDI UNIT KIT |
999-99045-44-00 |
US $450.12 |
||
|
13
|
13
999-99045-44-00 CDI UNIT KIT |
999-99045-44-00 |
US $450.12 |
||
|
14
|
14
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
14
|
14
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
14
|
14
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
15
|
15
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
15
|
15
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
6H3-81922-00-00 Grommet |
6H3-81922-00-00 |
from US $8.64 |
||
|
18
|
18
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
19
|
19
61N-85570-10-00 Ignition Coil AssemblyFor no. 2 |
61N-85570-10-00 |
from US $79.78 |
||
|
19
|
19
6H5-85570-00-00 Ignition Coil AssyFor no. 1 |
6H5-85570-00-00 |
from US $103.90 |
||
|
20
|
20
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
20
|
20
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
20
|
20
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
21
|
21
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
24
|
24
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
24
|
24
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
24
|
24
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
25
|
25
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
25
|
25
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
26
|
26
61N-41213-00-94
Cam, Accel
|
61N-41213-00-94 |
— | ||
| replacements | |||||
|
26
|
26
61N-41213-01-94
Cam,accel
|
61N-41213-01-94 |
— | ||
|
26
|
26
999-99030-86-00
Accelerator Cam
|
999-99030-86-00 |
— | ||
|
27
|
27
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
28
|
28
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
29
|
29
6J8-81960-00-00 Rectifier & Regulator Assy25vm/30gm |
6J8-81960-00-00 |
from US $120.97 |
||
|
30
|
30
61T-81915-00-00
Plate, Regulator Fitting
25vm/30gm |
61T-81915-00-00 |
— | ||
|
31
|
31
6E5-82582-00-00 Cover, Wire Harness25vm/30gm |
6E5-82582-00-00 |
from US $4.53 |
||
