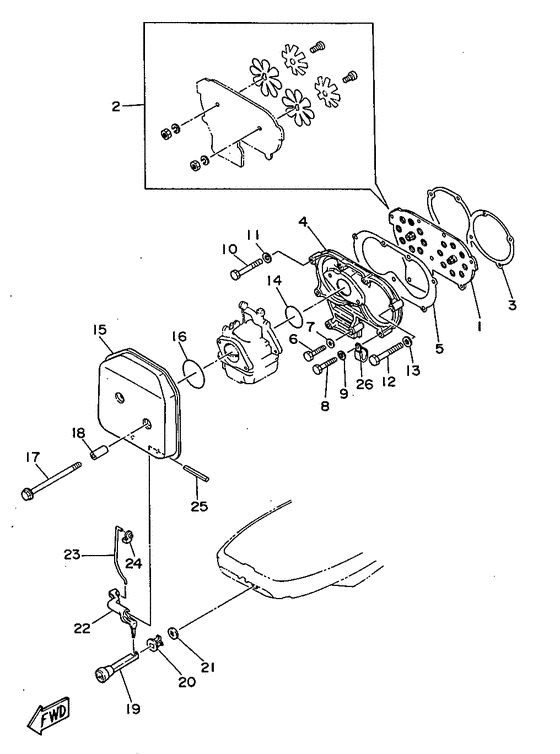

Intake Diagram Yamaha 25 EOS/L
- Year
- 1997
- Model
- 25Q
- Model code
- 61C
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
61N-13610-00-00 Reed Valve AssyUr 25v |
61N-13610-00-00 |
from US $97.09 |
||
|
01
|
01
689-13610-01-00 Reed Valve AssemblyUr 30g |
689-13610-01-00 |
from US $200.48 |
||
|
02
|
02
689-W0004-00-00 Reed Set |
689-W0004-00-00 |
from US $45.46 |
||
|
03
|
03
648-13621-A1-00 Gasket, Valve Seat |
648-13621-A1-00 |
from US $7.08 |
||
|
04
|
04
61N-13641-00-94 Manifold, Intake 1 |
61N-13641-00-94 |
US $88.84 |
||
| replacements | |||||
|
04
|
04
61N-13641-01-1S Manifold, Intake 1 |
61N-13641-01-1S |
US $88.84 |
||
|
04
|
04
61N-13641-01-00 61N1364101 |
61N-13641-01-00 |
from US $55.22 |
||
|
05
|
05
648-13645-A0-00 Gasket, Manifold 1 |
648-13645-A0-00 |
from US $3.04 |
||
|
06
|
06
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
06
|
06
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
08
|
08
970-14060-35-00 Bolt, HexagonUr 30ge |
970-14060-35-00 |
from US $2.41 |
||
|
09
|
09
929-90066-00-00 Washer, Plain (646)Ur 30ge |
929-90066-00-00 |
from US $1.39 |
||
|
10
|
10
97013-06045-00 Bolt25vm/30gm |
97013-06045-00 |
from US $1.57 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646)25vm/30gm |
929-90066-00-00 |
from US $1.39 |
||
|
12
|
12
97313-06050-00 Bolt (661)30ge |
97313-06050-00 |
from US $1.58 |
||
| replacement | |||||
|
12
|
12
97013-06050-00 Bolt30ge |
97013-06050-00 |
from US $1.57 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646)30ge |
929-90066-00-00 |
from US $1.39 |
||
|
14
|
14
61N-14198-00-00 Gasket |
61N-14198-00-00 |
US $4.68 |
||
|
15
|
15
61N-14440-00-00 Silencer Assembly, Intake |
61N-14440-00-00 |
from US $26.64 |
||
|
16
|
16
932-10406-59-00 O-Ring |
932-10406-59-00 |
from US $6.24 |
||
|
17
|
17
90119-06M94-00 Bolt, With Washer |
90119-06M94-00 |
from US $5.24 |
||
| replacement | |||||
|
17
|
17
901-19063-08-00 BOLT WITH WASHER |
901-19063-08-00 |
from US $6.38 |
||
|
18
|
18
90387-06M26-00 Collar |
90387-06M26-00 |
from US $8.32 |
||
|
19
|
19
682-41271-00-00 Knob, Choke |
682-41271-00-00 |
US $4.96 |
||
| replacement | |||||
|
19
|
19
682-41271-01-00 Knob, Choke |
682-41271-01-00 |
from US $4.38 |
||
|
20
|
20
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
21
|
21
6J8-41274-00-00 Grommet 2 |
6J8-41274-00-00 |
US $1.81 |
||
|
22
|
22
689-41252-01-00 Lever, Choke 1 |
689-41252-01-00 |
from US $11.76 |
||
|
23
|
23
61N-41256-00-00 Rod, Choke 1 |
61N-41256-00-00 |
from US $4.53 |
||
|
24
|
24
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
25
|
25
91690-40048-00 Pin, Spring |
91690-40048-00 |
from US $2.98 |
||
|
26
|
26
90465-08M51-00
Clamp
|
90465-08M51-00 |
— | ||
