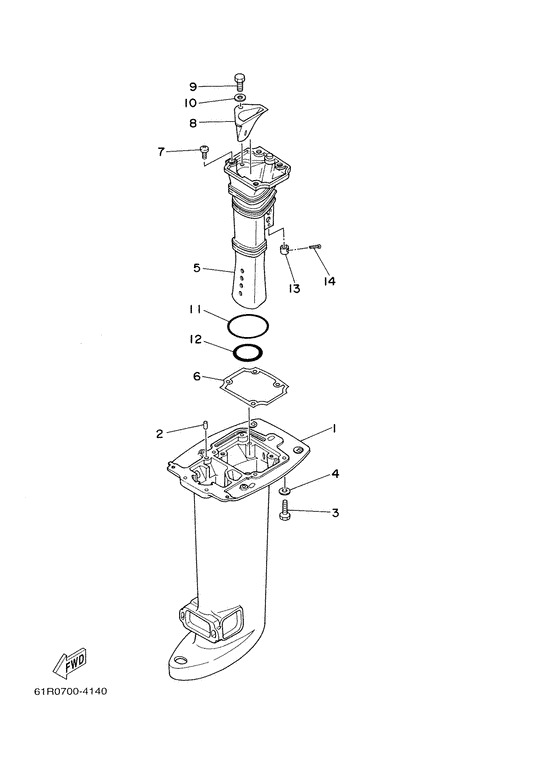

Upper casing Diagram Yamaha 25 MHS/L
- Year
- 2001
- Model
- 25V
- Model code
- 61R
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (General) (160)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-45111-04-4D Casing, UpperS |
689-45111-04-4D |
US $429.70 |
||
| replacement | |||||
|
01
|
01
689-45111-04-8D Casing, UpperS |
689-45111-04-8D |
US $533.59 |
||
|
01
|
01
689-45111-13-4D Casing, UpperL |
689-45111-13-4D |
from US $440.90 |
||
|
02
|
02
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
03
|
03
97075-08030-00 Bolt |
97075-08030-00 |
US $2.91 |
||
| replacement | |||||
|
03
|
03
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
04
|
04
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
04
|
04
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
05
|
05
689-41131-00-5B Manifold, Ext. 1 |
689-41131-00-5B |
US $208.62 |
||
| replacement | |||||
|
05
|
05
6A8-41131-10-5B Manifold, Ext. 1 |
6A8-41131-10-5B |
from US $93.35 |
||
|
06
|
06
664-41134-A0-00 Gasket, Exhaust Manifold |
664-41134-A0-00 |
from US $10.22 |
||
|
07
|
07
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
07
|
07
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
08
|
08
689-41137-00-94
Guide, Exhaust
|
689-41137-00-94 |
— | ||
|
09
|
09
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
10
|
10
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
11
|
11
689-41141-00-00 Seal 1 |
689-41141-00-00 |
from US $11.76 |
||
|
12
|
12
689-41142-00-00 Seal |
689-41142-00-00 |
from US $11.76 |
||
|
13
|
13
6A8-41135-00-00 Gasket, Exhaust ManifoldS |
6A8-41135-00-00 |
from US $4.95 |
||
|
13
|
13
689-41135-00-00 Gasket, Exhaust ManifoldL |
689-41135-00-00 |
US $8.51 |
||
|
14
|
14
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
14
|
14
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
