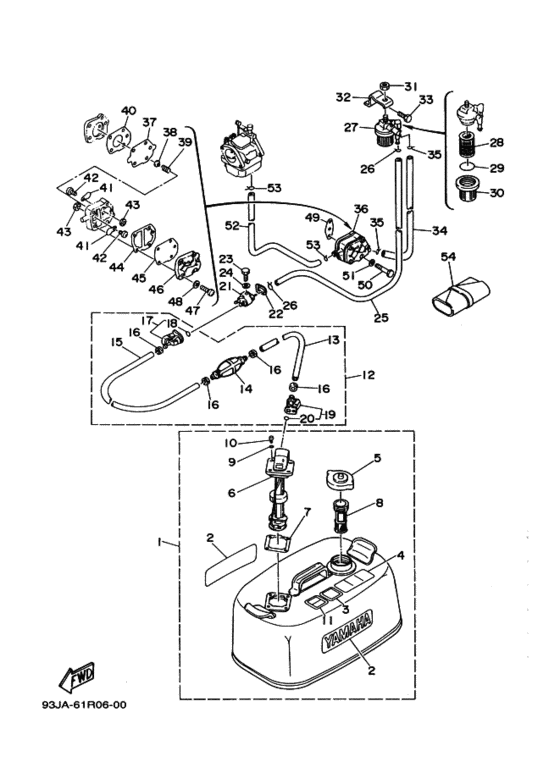

Fuel damper Diagram Yamaha 25 (E)MHS/L
- Year
- 1993
- Model
- 25V
- Model code
- 61R
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y1-W2420-04-24
Fuel Tank Assy
フユエルタンクアセンブリ; |
6Y1-W2420-04-24 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
フユエルタンクアセンブリ; |
999-99999-99-00 |
— | ||
|
2
|
2
6Y1-24246-00-00
Graphic, Side
．グラフイツク，サイド; |
6Y1-24246-00-00 |
— | ||
|
3
|
3
6Y1-24257-00-00
Graphic
．グラフイツク; |
6Y1-24257-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
．グラフイツク; |
999-99999-99-00 |
— | ||
|
4
|
4
6Y1-24258-00-00
Graphic, Fuel Tank 11
．グラフイツク，フユエルタンク １１; |
6Y1-24258-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
．グラフイツク，フユエルタンク １１; |
999-99999-99-00 |
— | ||
|
5
|
5
6Y1-24610-12-00 Cap Assy．キヤツプアセンブリ; |
6Y1-24610-12-00 |
from US $48.91 |
||
|
6
|
6
6Y1-24260-12-00 Fuel Meter Assy．フユエルメ−タアセンブリ; |
6Y1-24260-12-00 |
US $105.14 |
||
| replacements | |||||
|
6
|
6
6Y1-24260-13-00 Fuel Meter Assy．フユエルメ−タアセンブリ; |
6Y1-24260-13-00 |
US $105.14 |
||
|
6
|
6
6Y1-24260-19-00 FUEL METER ASSY．フユエルメ−タアセンブリ; |
6Y1-24260-19-00 |
US $86.48 |
||
|
7
|
7
6Y1-24268-00-00 Gasket, Fuel Meter．ガスケツト，フユエルメ−タ; |
6Y1-24268-00-00 |
US $3.94 |
||
|
8
|
8
6Y1-24167-00-00 Strainer．ストレ−ナ; |
6Y1-24167-00-00 |
US $21.39 |
||
|
9
|
9
6Y1-24329-00-00 Seal．シ−ル; |
6Y1-24329-00-00 |
from US $1.70 |
||
|
10
|
10
98586-05016-00 Screw, Pan Head．スクリユ，パンヘツド; |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
90157-05M19-00 Screw, Pan Head．スクリユ，パンヘツド; |
90157-05M19-00 |
from US $1.42 |
||
|
11
|
11
6Y1-24254-60-00 Graphic．グラフイツク; |
6Y1-24254-60-00 |
US $5.95 |
||
|
12
|
12
6Y1-24306-51-00 Fuel Pipe Comp. 1フユエルパイプコンプリ−ト １; |
6Y1-24306-51-00 |
US $88.70 |
||
| replacement | |||||
|
12
|
12
6YL-24306-64-00 Fuel Pipe Comp. 1フユエルパイプコンプリ−ト １; |
6YL-24306-64-00 |
from US $268.03 |
||
|
13
|
13
90445-11M06-00 Hose．ホ−ス ; Ｌ：２０５０ＭＭ; ３０Ｍロールが利用できます。（部品番号９０８９０−５６８７８） |
90445-11M06-00 |
US $34.57 |
||
| replacement | |||||
|
13
|
13
90445-11M81-00 Hose (L3000)．ホ−ス ; Ｌ：２０５０ＭＭ; ３０Ｍロールが利用できます。（部品番号９０８９０−５６８７８） |
90445-11M81-00 |
from US $34.57 |
||
|
14
|
14
6Y1-24360-51-00 Primer Pump Assy．プライマポンプアセンブリ; |
6Y1-24360-51-00 |
US $32.59 |
||
| replacement | |||||
|
14
|
14
6YL-24360-63-00 PIPE, JOINT 2．プライマポンプアセンブリ; |
6YL-24360-63-00 |
from US $54.97 |
||
|
15
|
15
90445-11M05-00 Hose．ホ−ス ; Ｌ：８５０ＭＭ; ３０Ｍロールが利用できます。（部品番号９０８９０−５６８７８） |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
15
|
15
90445-11M78-00 Hose．ホ−ス ; Ｌ：８５０ＭＭ; ３０Ｍロールが利用できます。（部品番号９０８９０−５６８７８） |
90445-11M78-00 |
US $10.34 |
||
|
16
|
16
650-24351-51-00 Band 1．バンド １; |
650-24351-51-00 |
from US $2.98 |
||
|
17
|
17
6G1-24305-01-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6G1-24305-01-00 |
US $28.34 |
||
| replacement | |||||
|
17
|
17
6G1-24305-05-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6G1-24305-05-00 |
from US $25.26 |
||
|
18
|
18
93210-08287-00 O-Ring．．Ｏ−リング; |
93210-08287-00 |
from US $3.83 |
||
|
19
|
19
6Y1-24305-02-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6Y1-24305-02-00 |
US $25.08 |
||
| replacements | |||||
|
19
|
19
6G1-24305-05-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6G1-24305-05-00 |
from US $25.26 |
||
|
19
|
19
6Y1-24305-06-00 Fuel Pipe Joint Comp 2．フユエルパイプジヨイントコンプリ−ト ２; |
6Y1-24305-06-00 |
from US $25.08 |
||
|
20
|
20
93210-08287-00 O-Ring．．Ｏ−リング; |
93210-08287-00 |
from US $3.83 |
||
|
21
|
21
6G1-24304-02-00 Fuel Pipe Joint Comp. 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
21
|
21
6G1-24304-10-00 Fuel Pipe Joint Comp. 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-10-00 |
US $32.74 |
||
|
21
|
21
6G1-24304-11-00 FUEL PIPE JOINT COMP 1フユエルパイプジヨイントコンプリ−ト １; |
6G1-24304-11-00 |
from US $26.03 |
||
|
22
|
22
61N-24329-00-00 Seal |
61N-24329-00-00 |
US $3.26 |
||
| replacement | |||||
|
22
|
22
61N-24329-01-00 Seal |
61N-24329-01-00 |
from US $3.26 |
||
|
23
|
23
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
23
|
23
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
25
|
25
90445-09M75-00 Hose (L370)ホ−ス; |
90445-09M75-00 |
from US $6.52 |
||
| replacements | |||||
|
25
|
25
904-45090-F6-00 Hose (L1500)ホ−ス; |
904-45090-F6-00 |
from US $7.76 |
||
|
25
|
25
904-45092-K1-00 Hose (L420)ホ−ス; |
904-45092-K1-00 |
from US $5.40 |
||
|
26
|
26
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
27
|
27
655-24560-01-00 Filter Assemblyフイルタアセンブリ; |
655-24560-01-00 |
US $42.69 |
||
| replacement | |||||
|
27
|
27
61N-24560-10-00 Filter Assyフイルタアセンブリ; |
61N-24560-10-00 |
from US $25.92 |
||
|
28
|
28
6F5-24563-00-00 Element, Filter．エレメント，フイルタ; |
6F5-24563-00-00 |
from US $8.08 |
||
|
29
|
29
93210-37M25-00 O-Ring．Ｏ−リング; |
93210-37M25-00 |
from US $4.68 |
||
|
30
|
30
655-24521-01-00
Cup, Filter
．カツプ，フイルタ; |
655-24521-01-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
．カツプ，フイルタ; |
999-99999-99-00 |
— | ||
|
31
|
31
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
31
|
31
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
31
|
31
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
32
|
32
61N-24566-01-00 Bracket, Filterブラケツト，フイルタ; |
61N-24566-01-00 |
from US $10.63 |
||
|
33
|
33
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
33
|
33
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
34
|
34
689-24311-00-00 Pipe, Fuel 1パイプ，フユエル １; |
689-24311-00-00 |
from US $5.67 |
||
|
35
|
35
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
36
|
36
6A0-24410-05-00 Fuel Pump Assemblyフユエルポンプアセンブリ; |
6A0-24410-05-00 |
US $131.67 |
||
| replacements | |||||
|
36
|
36
692-24410-00-00 Fuel Pump Assyフユエルポンプアセンブリ; |
692-24410-00-00 |
US $131.67 |
||
|
36
|
36
692-24410-01-00 FUEL PUMP ASSYフユエルポンプアセンブリ; |
692-24410-01-00 |
from US $67.03 |
||
|
37
|
37
648-24411-00-00 Diaphragm．ダイヤフラム; |
648-24411-00-00 |
from US $22.56 |
||
|
38
|
38
648-24424-00-00 Seat, Spring．シ−ト，スプリング; |
648-24424-00-00 |
from US $3.68 |
||
|
39
|
39
648-24423-00-00 Spring, Diaphragm．スプリング，ダイヤフラム; |
648-24423-00-00 |
from US $3.68 |
||
|
40
|
40
648-24434-01-00 Gasket, Body．ガスケツト，ボデ−; |
648-24434-01-00 |
from US $4.72 |
||
|
41
|
41
6A0-24421-01-00 Valve,check．バルブ，チエツク; |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
41
|
41
62Y-24421-01-00 Valve, Check．バルブ，チエツク; |
62Y-24421-01-00 |
from US $8.08 |
||
|
42
|
42
6A0-14325-00-00 Screw, Pan Head．スクリユ，パンヘツド; |
6A0-14325-00-00 |
from US $4.11 |
||
|
43
|
43
95380-03600-00 Nut．ナツト; |
95380-03600-00 |
from US $1.56 |
||
|
44
|
44
648-24435-02-00 Gasket, Body 2．ガスケツト，ボデ− ２; |
648-24435-02-00 |
from US $13.32 |
||
|
45
|
45
663-24411-00-00 Diaphragm．ダイヤフラム; |
663-24411-00-00 |
from US $9.44 |
||
|
46
|
46
648-24413-01-00 Cover, Pump．ボデ− ２; |
648-24413-01-00 |
from US $17.65 |
||
|
47
|
47
98580-05530-00 Screw, Pan Head．スクリユ，パンヘツド; |
98580-05530-00 |
from US $2.27 |
||
|
48
|
48
92990-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92990-05100-00 |
from US $1.21 |
||
|
49
|
49
650-24431-A0-00 Gasket, Fuel Pump 1ガスケツト，フユエルポンプ １; |
650-24431-A0-00 |
from US $1.70 |
||
|
50
|
50
973-95060-40-00
Bolt (682)
|
973-95060-40-00 |
— | ||
| replacement | |||||
|
50
|
50
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
51
|
51
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.39 |
||
|
52
|
52
648-24312-01-00 Pipe 2 |
648-24312-01-00 |
US $9.92 |
||
| replacement | |||||
|
52
|
52
4KN-24311-01-00 Pipe, Fuel 1 |
4KN-24311-01-00 |
from US $9.92 |
||
|
53
|
53
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
54
|
54
656-W2810-02-00 Tool Kitツ−ルキツト; |
656-W2810-02-00 |
US $40.62 |
||
| replacements | |||||
|
54
|
54
656-W2810-03-00 Tool Kitツ−ルキツト; |
656-W2810-03-00 |
from US $40.62 |
||
|
54
|
54
656-W2810-03-00 Tool Kitツ−ルキツト; |
656-W2810-03-00 |
from US $40.62 |
||
