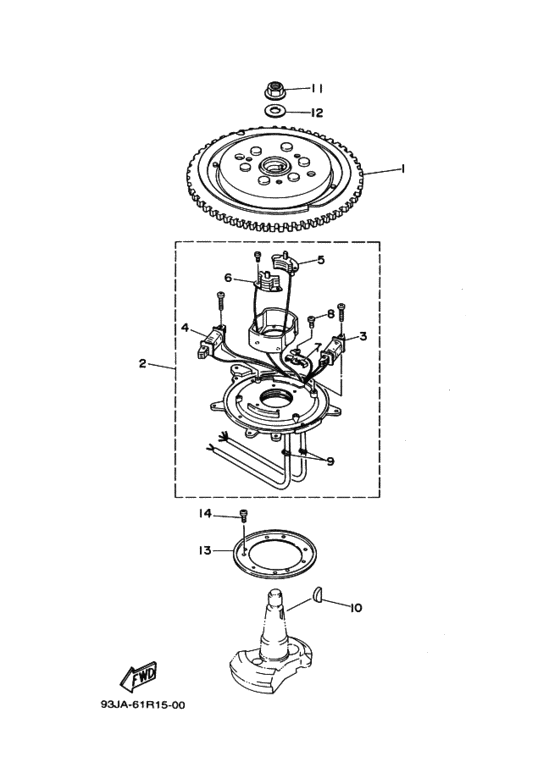

Generator Diagram Yamaha 25 (E)MHS/L
- Year
- 1993
- Model
- 25V
- Model code
- 61R
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61T-85550-00-00
Rotor Assembly
ロ−タアセンブリ; |
61T-85550-00-00 |
— | ||
|
2
|
2
61N-85560-00-00
Base Assembly
ベースアセンブリ; |
61N-85560-00-00 |
— | ||
|
3
|
3
61N-85541-09-00 Coil, Charge．コイル，チヤ−ジ; ターミナル非装置 |
61N-85541-09-00 |
from US $226.10 |
||
|
4
|
4
61N-81313-09-00 Coil, Lighting 1．コイル，ライテイング １; ターミナル非装置 |
61N-81313-09-00 |
from US $64.24 |
||
|
5
|
5
61N-85543-09-00 Coil Pulser．コイル，パルサ; ターミナル非装置 |
61N-85543-09-00 |
from US $84.84 |
||
|
6
|
6
61N-85543-19-00 Coil Pulser．コイル，パルサ; ターミナル非装置 |
61N-85543-19-00 |
from US $86.18 |
||
|
7
|
7
6E9-81328-70-00 Clamp．クランプ; |
6E9-81328-70-00 |
from US $6.23 |
||
|
8
|
8
985-01040-06-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-01040-06-00 |
— | ||
| replacements | |||||
|
8
|
8
985-17040-16-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-17040-16-00 |
from US $1.52 |
||
|
8
|
8
901-59041-44-00
Screw, With Washer
．スクリユ，パンヘツド; |
901-59041-44-00 |
— | ||
|
8
|
8
98517-04006-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-04006-00 |
from US $1.28 |
||
|
8
|
8
99999-04427-00 Screw,pan Head W/washer．スクリユ，パンヘツド; |
99999-04427-00 |
US $3.04 |
||
|
9
|
9
6E9-85516-70-00 Spacer．グロメツト; |
6E9-85516-70-00 |
from US $6.38 |
||
|
10
|
10
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
11
|
11
90179-16M05-00 Nut |
90179-16M05-00 |
from US $10.83 |
||
|
12
|
12
90201-16M44-00 Washer, Plate |
90201-16M44-00 |
from US $4.72 |
||
|
13
|
13
689-41612-01-00 Retainer, Magneto Baseリテ−ナ，マグネツトベ−ス; |
689-41612-01-00 |
US $18.42 |
||
|
14
|
14
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
