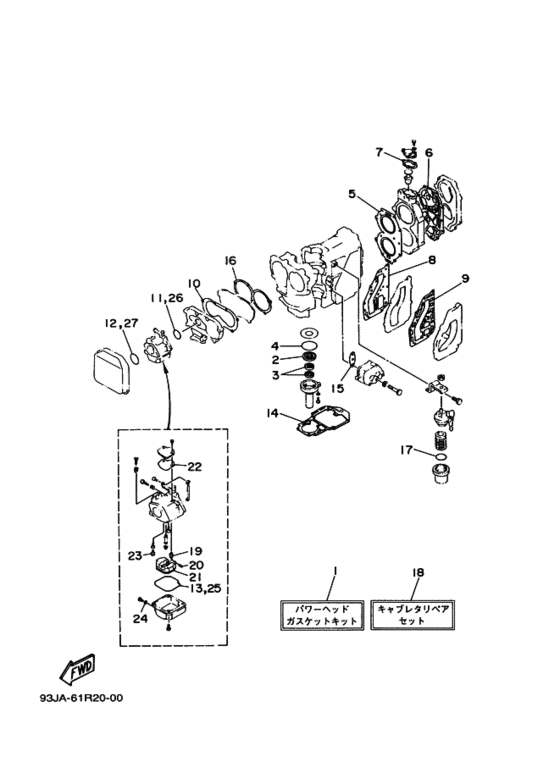

ﾘﾍﾟｱｷﾂﾄ 1 Diagram Yamaha 25 (E)MHS/L
- Year
- 1993
- Model
- 25V
- Model code
- 61R
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61T-W0001-00-00
Gasket Kit
パワーヘツドガスケツトキツト; |
61T-W0001-00-00 |
— | ||
|
2
|
2
931-0225M-28-00 Oil Seal(6H4)．オイルシ−ル; |
931-0225M-28-00 |
from US $9.44 |
||
|
3
|
3
931-0116M-36-00 Oil Seal．オイルシ−ル; |
931-0116M-36-00 |
from US $5.06 |
||
|
4
|
4
932-1057M-09-00 O-Ring．Ｏ−リング; |
932-1057M-09-00 |
from US $3.04 |
||
|
5
|
5
61N-11181-A0-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
61N-11181-A0-00 |
US $47.11 |
||
| replacement | |||||
|
5
|
5
61N-11181-A2-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
61N-11181-A2-00 |
from US $35.70 |
||
|
6
|
6
61T-11193-A0-00 Gasket, Head Cover 1．ガスケツト，ヘツドカバ− １; |
61T-11193-A0-00 |
US $11.90 |
||
| replacement | |||||
|
6
|
6
61T-11193-A1-00 Gasket, Head Cover 1．ガスケツト，ヘツドカバ− １; |
61T-11193-A1-00 |
from US $11.90 |
||
|
7
|
7
655-12414-00-00 Gasket, Cover．ガスケツト，カバ−; |
655-12414-00-00 |
US $3.83 |
||
| replacement | |||||
|
7
|
7
655-12414-A1-00 Gasket, Cover．ガスケツト，カバ−; |
655-12414-A1-00 |
from US $3.72 |
||
|
8
|
8
6K8-41122-A1-00 Gasket, Exhaust Inner Cover．ガスケット，エギゾーストインナカバー; |
6K8-41122-A1-00 |
from US $12.12 |
||
|
9
|
9
6K8-41124-A1-00 Gasket, Exhaust Outer Cover．ガスケット，エギゾーストアウタカバー; |
6K8-41124-A1-00 |
from US $10.78 |
||
|
10
|
10
648-13645-00-00 Gasket, Manifold 1．ガスケツト，マニホ−ルド １; |
648-13645-00-00 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
648-13645-A0-00 Gasket, Manifold 1．ガスケツト，マニホ−ルド １; |
648-13645-A0-00 |
from US $3.04 |
||
|
11
|
11
61N-14198-00-00 Gasket．ガスケツト; |
61N-14198-00-00 |
US $4.68 |
||
|
12
|
12
932-10406-59-00 O-Ring．Ｏ−リング; |
932-10406-59-00 |
from US $6.24 |
||
|
13
|
13
6L2-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
6L2-14384-00-00 |
US $6.24 |
||
| replacement | |||||
|
13
|
13
6L2-14384-01-00 GASKET FLOAT CHAMBER．ガスケツト，フロ−トチヤンバ; |
6L2-14384-01-00 |
from US $6.24 |
||
|
14
|
14
61T-45113-A0-00 Gasket, Upper Casing．ガスケツト，アツパ−ケ−シング; |
61T-45113-A0-00 |
from US $16.37 |
||
|
15
|
15
650-24431-A0-00 Gasket, Fuel Pump 1．ガスケツト，フユエルポンプ １; |
650-24431-A0-00 |
from US $1.70 |
||
|
16
|
16
648-13621-00-00 Gasket, Valve Seat．ガスケツト，バルブシ−ト; |
648-13621-00-00 |
US $8.50 |
||
| replacement | |||||
|
16
|
16
648-13621-A1-00 Gasket, Valve Seat．ガスケツト，バルブシ−ト; |
648-13621-A1-00 |
from US $7.08 |
||
|
17
|
17
93210-37M25-00 O-Ring．Ｏ−リング; |
93210-37M25-00 |
from US $4.68 |
||
|
18
|
18
61N-W0093-00-00 Carburetor Repair Kitキヤブレタリペアセツト; |
61N-W0093-00-00 |
US $99.89 |
||
|
19
|
19
61N-14392-00-00
Valve, Needle
．バルブ，ニ−ドル; |
61N-14392-00-00 |
— | ||
| replacement | |||||
|
19
|
19
62Y-14392-00-00 Valve, Needle．バルブ，ニ−ドル; |
62Y-14392-00-00 |
from US $15.12 |
||
|
20
|
20
6E5-14386-01-00 Pin, Float．ピン，フロ−ト; |
6E5-14386-01-00 |
from US $3.05 |
||
|
21
|
21
6L2-14385-00-00 Float．フロ−ト; |
6L2-14385-00-00 |
from US $22.89 |
||
|
22
|
22
6L2-14399-00-00 Gasket．ガスケツト; |
6L2-14399-00-00 |
US $5.97 |
||
|
23
|
23
50M-14355-00-00
Plug
．プラグ; |
50M-14355-00-00 |
— | ||
| replacement | |||||
|
23
|
23
50M-14355-01-00 PLUG．プラグ; |
50M-14355-01-00 |
from US $2.70 |
||
|
24
|
24
6L2-14398-00-00 Gasket．ガスケツト; |
6L2-14398-00-00 |
from US $1.98 |
||
|
25
|
25
6L2-14384-00-00 Gasket, Float Chamber．ガスケツト，フロ−トチヤンバ; |
6L2-14384-00-00 |
US $6.24 |
||
| replacement | |||||
|
25
|
25
6L2-14384-01-00 GASKET FLOAT CHAMBER．ガスケツト，フロ−トチヤンバ; |
6L2-14384-01-00 |
from US $6.24 |
||
|
26
|
26
61N-14198-00-00 Gasket．ガスケツト; |
61N-14198-00-00 |
US $4.68 |
||
|
27
|
27
932-10406-59-00 O-Ring．Ｏ−リング; |
932-10406-59-00 |
from US $6.24 |
||
