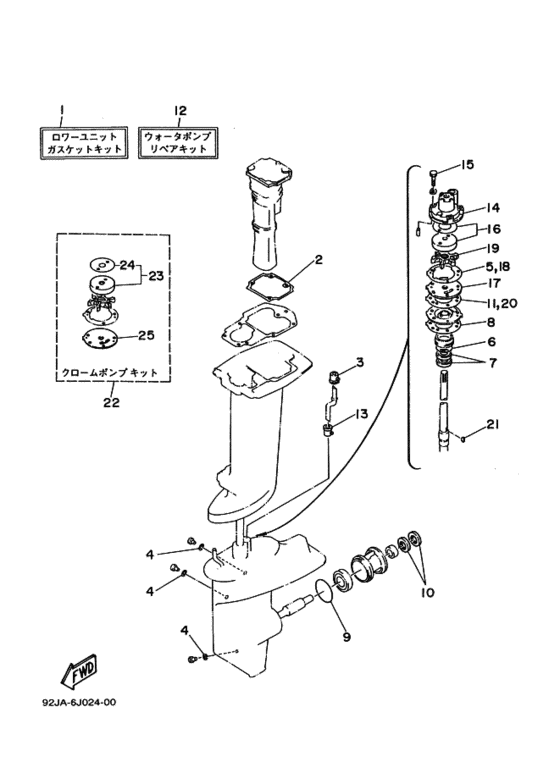

ﾘﾍﾟｱｷﾂﾄ 2 Diagram Yamaha 25 E(M)KS/L
- Year
- 1993
- Model
- 25H
- Model code
- 6J0
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-W0001-22-00 Gasket Kitロワ−ユニツトガスケツトキツト; |
689-W0001-22-00 |
US $86.56 |
||
| replacement | |||||
|
1
|
1
689-W0001-C2-00 Gasket Kit, Lower Unitロワ−ユニツトガスケツトキツト; |
689-W0001-C2-00 |
from US $74.52 |
||
|
2
|
2
664-41134-00-00 Gasket, Exh.mani.2．ガスケツト，エキゾ−ストマニホ−ルド; |
664-41134-00-00 |
US $19.13 |
||
| replacement | |||||
|
2
|
2
664-41134-A0-00 Gasket, Exhaust Manifold．ガスケツト，エキゾ−ストマニホ−ルド; |
664-41134-A0-00 |
from US $10.22 |
||
|
3
|
3
689-44366-00-00 Damper, Water Seal 2．ダンパ，ウオータシール; |
689-44366-00-00 |
US $1.35 |
||
|
4
|
4
904-30080-20-00 Gasket．ガスケツト; |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
4
|
4
90430-08003-00 Gasket．ガスケツト; |
90430-08003-00 |
from US $1.36 |
||
|
5
|
5
689-44324-01-00 Gasket, Cartridge．ガスケツト，カ−トリツジ; |
689-44324-01-00 |
US $8.08 |
||
| replacement | |||||
|
5
|
5
689-44324-A0-00 Gasket, Cartridge．ガスケツト，カ−トリツジ; |
689-44324-A0-00 |
from US $8.08 |
||
|
6
|
6
93210-40M10-00 O-Ring．Ｏ−リング; |
93210-40M10-00 |
from US $3.60 |
||
|
7
|
7
931-01220-67-00 Oil Seal．オイルシ−ル; |
931-01220-67-00 |
from US $8.05 |
||
|
8
|
8
689-44315-01-00 Gasket, Water Pump．ガスケツト，ウオ−タポンプ; |
689-44315-01-00 |
US $9.63 |
||
| replacement | |||||
|
8
|
8
689-44315-A0-00 Gasket, Water Pump．ガスケツト，ウオ−タポンプ; |
689-44315-A0-00 |
from US $8.69 |
||
|
9
|
9
93210-60M17-00 O-Ring．Ｏ−リング; |
93210-60M17-00 |
US $6.09 |
||
| replacement | |||||
|
9
|
9
93210-60MA3-00 O-Ring．Ｏ−リング; |
93210-60MA3-00 |
from US $6.09 |
||
|
10
|
10
931-0120M-07-00 Oil Seal．オイルシ−ル; |
931-0120M-07-00 |
from US $5.74 |
||
|
11
|
11
689-44316-00-00 Gasket, Water Pump Pump．ガスケツト，ウオ−タポンプ; |
689-44316-00-00 |
US $6.94 |
||
| replacement | |||||
|
11
|
11
689-44316-A0-00 Gasket, Water Pump．ガスケツト，ウオ−タポンプ; |
689-44316-A0-00 |
from US $6.94 |
||
|
12
|
12
689-W0078-05-00
Water Pump Repair Kit
ウオ−タポンプリペアキツト; |
689-W0078-05-00 |
— | ||
| replacement | |||||
|
12
|
12
689-W0078-A6-00 Water Pump Repair Kitウオ−タポンプリペアキツト; |
689-W0078-A6-00 |
from US $65.30 |
||
|
13
|
13
626-44365-01-00 Damper, Water Seal 1．ダンパ，ウオータシール; |
626-44365-01-00 |
US $3.54 |
||
|
14
|
14
689-44311-03-00 Housing, Water Pump．ハウジング，ウオ−タポンプ; |
689-44311-03-00 |
from US $47.99 |
||
|
15
|
15
90101-06M56-00 Bolt．ボルト，ヘキサゴン; |
90101-06M56-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
97080-06030-00 Bolt．ボルト，ヘキサゴン; |
97080-06030-00 |
from US $2.83 |
||
|
16
|
16
689-W4432-02-00 Insert Cartridge Comp．インサ−ト，カ−トリツジ; |
689-W4432-02-00 |
from US $35.33 |
||
|
17
|
17
689-44323-03-00 Outer Plate, Cartridge．アウタプレ−ト，カ−トリツジ; |
689-44323-03-00 |
from US $15.19 |
||
|
18
|
18
689-44324-01-00 Gasket, Cartridge．ガスケツト，カ−トリツジ; |
689-44324-01-00 |
US $8.08 |
||
| replacement | |||||
|
18
|
18
689-44324-A0-00 Gasket, Cartridge．ガスケツト，カ−トリツジ; |
689-44324-A0-00 |
from US $8.08 |
||
|
19
|
19
689-44352-02-00 Impeller．インペラ; |
689-44352-02-00 |
from US $24.23 |
||
|
20
|
20
689-44316-00-00 Gasket, Water Pump Pump．ガスケツト，ウオ−タポンプ; |
689-44316-00-00 |
US $6.94 |
||
| replacement | |||||
|
20
|
20
689-44316-A0-00 Gasket, Water Pump．ガスケツト，ウオ−タポンプ; |
689-44316-A0-00 |
from US $6.94 |
||
|
21
|
21
664-44338-00-00 Key, Woodruff．キ−，ウツドラフ; |
664-44338-00-00 |
from US $6.11 |
||
|
22
|
22
689-W0078-3A-00 Chrome Pump Kitクロ−ムポンプキツト; |
689-W0078-3A-00 |
from US $125.17 |
||
|
23
|
23
689-W4432-61-00 Insert Cartridge Comp．インサ−ト，カ−トリツジ; クロ−ム |
689-W4432-61-00 |
from US $66.59 |
||
|
24
|
24
689-44367-01-00 Damper, Water Seal 3．．ダンパ，ウオータシール; |
689-44367-01-00 |
from US $6.94 |
||
|
25
|
25
689-44323-43-00 Outer Plate, Cartridge．アウタプレ−ト，カ−トリツジ; クロ−ム |
689-44323-43-00 |
from US $58.58 |
||
