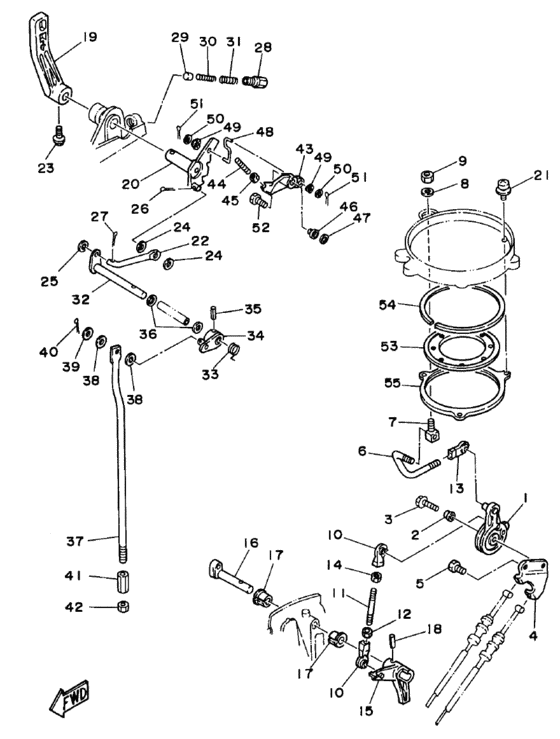

Control Diagram Yamaha 25 MS/LH
- Year
- 1997
- Model
- C25
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
664-41631-00-94 Lever, Magneto Control |
664-41631-00-94 |
US $49.05 |
||
| replacement | |||||
|
1
|
1
664-41631-00-00 Lever, Magneto Control |
664-41631-00-00 |
from US $26.93 |
||
|
2
|
2
90387-06M02-00 Collar |
90387-06M02-00 |
from US $5.81 |
||
|
3
|
3
90119-06M49-00 Bolt, With Washer |
90119-06M49-00 |
US $3.68 |
||
| replacement | |||||
|
3
|
3
90119-06288-00 Bolt, With Washer |
90119-06288-00 |
from US $2.64 |
||
|
4
|
4
664-14497-00-00 Stay, Throttle Wire |
664-14497-00-00 |
from US $11.75 |
||
|
5
|
5
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
6
|
6
664-41636-00-00 Rod, Magneto Control |
664-41636-00-00 |
US $8.66 |
||
|
7
|
7
648-41635-00-00
Shaft, Link Connecting
|
648-41635-00-00 |
— | ||
|
8
|
8
90201-05556-00 Washer, Plate |
90201-05556-00 |
from US $1.42 |
||
|
9
|
9
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
11
|
11
901-16052-20-00 Bolt, Stud |
901-16052-20-00 |
US $4.56 |
||
|
12
|
12
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
13
|
13
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
14
|
14
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
15
|
15
695-42154-00-94 Lever, Throttle Control |
695-42154-00-94 |
US $36.20 |
||
| replacement | |||||
|
15
|
15
695-42154-00-00 Lever, Throttle Control |
695-42154-00-00 |
from US $20.56 |
||
|
15
|
15
695-42154-71-94
Lever, Throttle Control
|
695-42154-71-94 |
— | ||
|
16
|
16
656-42153-00-94 Shaft, Throttle Control |
656-42153-00-94 |
from US $15.40 |
||
|
17
|
17
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
18
|
18
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
|
19
|
19
689-44111-01-4D Handle, Gear Shift |
689-44111-01-4D |
US $37.72 |
||
| replacement | |||||
|
19
|
19
689-44111-01-8D Gear Shift Handle |
689-44111-01-8D |
from US $37.72 |
||
|
20
|
20
664-44113-01-00 Cam Plate, Handle |
664-44113-01-00 |
from US $40.10 |
||
|
21
|
21
97985-05210-00 Screw, With Washer |
97985-05210-00 |
from US $1.98 |
||
|
22
|
22
664-44142-00-00 Joint |
664-44142-00-00 |
from US $13.88 |
||
|
23
|
23
90105-06M07-00 Bolt, Flange |
90105-06M07-00 |
from US $2.16 |
||
|
24
|
24
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
25
|
25
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
26
|
26
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
27
|
27
91490-12012-00 Pin. Cotter |
91490-12012-00 |
from US $1.98 |
||
|
28
|
28
664-42715-00-00 Bushing |
664-42715-00-00 |
from US $7.76 |
||
|
29
|
29
664-44167-00-00 Plunger, Shift Cam |
664-44167-00-00 |
US $7.93 |
||
| replacement | |||||
|
29
|
29
664-44167-01-00 Plunger, Shift Cam |
664-44167-01-00 |
from US $7.93 |
||
|
30
|
30
90501-14M07-00 Spring, Compression |
90501-14M07-00 |
from US $4.11 |
||
|
31
|
31
90501-09M08-00 Spring, Compression |
90501-09M08-00 |
from US $3.38 |
||
|
32
|
32
689-44121-01-00 Lever, Shift Rod |
689-44121-01-00 |
from US $20.69 |
||
|
33
|
33
90508-14M13-00 Spring, Torsion |
90508-14M13-00 |
from US $4.53 |
||
|
34
|
34
689-44125-00-00 Lever, Shift Rod |
689-44125-00-00 |
from US $23.94 |
||
|
35
|
35
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
36
|
36
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
37
|
37
6G0-44143-00-00 Rod, Shift |
6G0-44143-00-00 |
from US $39.65 |
||
|
38
|
38
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
39
|
39
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
40
|
40
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
41
|
41
648-44146-00-00 Connector, Shift Rod 2 |
648-44146-00-00 |
from US $12.61 |
||
|
42
|
42
90170-07021-00 Nut |
90170-07021-00 |
from US $3.97 |
||
|
43
|
43
695-15746-71-94
Arm
|
695-15746-71-94 |
— | ||
|
44
|
44
90113-05M04-00
Bolt, Set
|
90113-05M04-00 |
— | ||
|
45
|
45
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
46
|
46
90387-06M02-00 Collar |
90387-06M02-00 |
from US $5.81 |
||
|
47
|
47
903-87062-98-00
Collar
|
903-87062-98-00 |
— | ||
|
48
|
48
689-15747-70-00 Link |
689-15747-70-00 |
from US $8.50 |
||
|
49
|
49
90206-05005-00 Washer, Wave |
90206-05005-00 |
from US $2.55 |
||
|
50
|
50
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
51
|
51
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
52
|
52
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
52
|
52
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
53
|
53
695-41612-00-00
Retainer, Magneto Base
|
695-41612-00-00 |
— | ||
|
54
|
54
695-41613-00-00 Plate, Base Friction |
695-41613-00-00 |
from US $18.43 |
||
| replacement | |||||
|
54
|
54
6N0-G1613-00-00 Plate Base Friction |
6N0-G1613-00-00 |
US $19.27 |
||
|
55
|
55
695-41611-00-94 Retainer, Magneto Base |
695-41611-00-94 |
US $21.88 |
||
