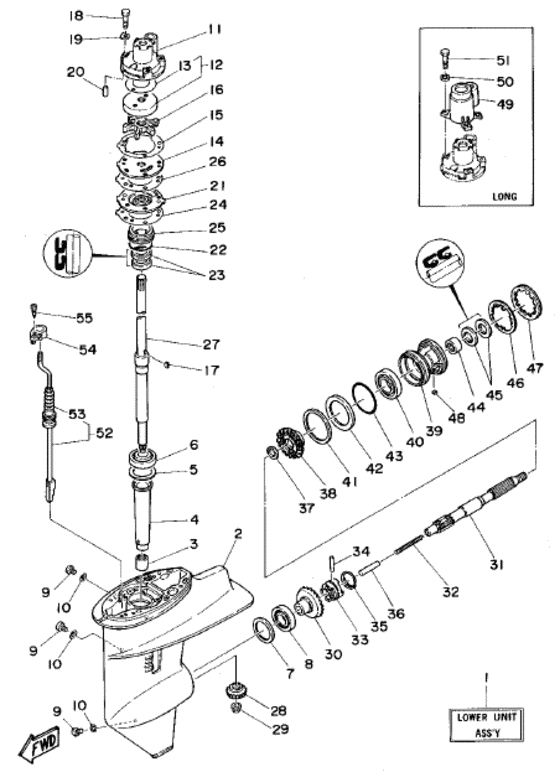

Lower casing drive Diagram Yamaha 25 MS/LH
- Year
- 1994
- Model
- C25
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-45300-16-4D Lower Unit Assembly (Ref. #2~17, 19~54)Lower unit assy (ref.no.2-21, 23-54) 19~54 |
689-45300-16-4D |
US $2,125.20 |
||
| replacement | |||||
|
1
|
1
689-45300-18-8D LOWER UNIT ASSY19~54 |
689-45300-18-8D |
US $1,609.56 |
||
|
1
|
1
689-45300-06-4D Lower Unit Assembly (Ref. #2~47, 51~54)Lower unit assy (ref.no.2-22, 25-53) 51~54 |
689-45300-06-4D |
US $1,392.42 |
||
| replacements | |||||
|
1
|
1
689-45300-07-4D Lower Unit Assy51~54 |
689-45300-07-4D |
US $1,392.42 |
||
|
1
|
1
689-45300-08-8D Lower Unit Assy51~54 |
689-45300-08-8D |
US $2,422.26 |
||
|
2
|
2
689-45311-03-4D Casing, Lower |
689-45311-03-4D |
US $551.47 |
||
| replacement | |||||
|
2
|
2
689-45311-04-4D
Casing, Lower
|
689-45311-04-4D |
— | ||
|
3
|
3
93315-017U4-00 Bearing |
93315-017U4-00 |
from US $52.31 |
||
|
4
|
4
689-45536-00-00 Sleeve, Drive Shaft |
689-45536-00-00 |
US $15.42 |
||
|
5
|
5
664-45587-01-10 Shim (T:0.10Mm) |
664-45587-01-10 |
US $5.81 |
||
| replacement | |||||
|
5
|
5
664-45587-01-00 Shim (T:0.10Mm) |
664-45587-01-00 |
from US $5.09 |
||
|
5
|
5
664-45587-01-12 Shim (T:0.12Mm) |
664-45587-01-12 |
US $5.81 |
||
| replacement | |||||
|
5
|
5
664-45587-10-00 Shim (T:0.12Mm) |
664-45587-10-00 |
from US $5.09 |
||
|
5
|
5
664-45587-01-15 Shim (T:0.15Mm) |
664-45587-01-15 |
US $5.81 |
||
| replacement | |||||
|
5
|
5
664-45587-20-00 Shim (T:0.15Mm) |
664-45587-20-00 |
from US $5.09 |
||
|
5
|
5
664-45587-01-18 Shim (T:0.18Mm) |
664-45587-01-18 |
US $5.81 |
||
| replacement | |||||
|
5
|
5
664-45587-30-00 Shim (T:0.18Mm) |
664-45587-30-00 |
from US $5.09 |
||
|
5
|
5
664-45587-01-30 Shim (T:0.30Mm) |
664-45587-01-30 |
US $5.81 |
||
| replacement | |||||
|
5
|
5
664-45587-40-00 Shim (T:0.30Mm) |
664-45587-40-00 |
from US $5.09 |
||
|
5
|
5
664-45587-01-40 Shim (T:0.40Mm) |
664-45587-01-40 |
US $5.81 |
||
| replacement | |||||
|
5
|
5
664-45587-50-00 Shim (T:0.40Mm) |
664-45587-50-00 |
from US $5.09 |
||
|
5
|
5
664-45587-01-50 Shim (T:0.50Mm) |
664-45587-01-50 |
US $5.81 |
||
| replacement | |||||
|
5
|
5
664-45587-60-00 Shim (T:0.50Mm) |
664-45587-60-00 |
from US $5.09 |
||
|
6
|
6
93332-000U4-00 Bearing |
93332-000U4-00 |
from US $40.48 |
||
|
7
|
7
664-45567-01-10 Shim (T:0.10Mm) |
664-45567-01-10 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
664-45567-01-00 Shim (T:0.10Mm) |
664-45567-01-00 |
from US $5.09 |
||
|
7
|
7
664-45567-01-12 Shim (T:0.12Mm) |
664-45567-01-12 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
664-45567-10-00 Shim (T:0.12Mm) |
664-45567-10-00 |
from US $5.09 |
||
|
7
|
7
664-45567-01-15 Shim (T:0.15Mm) |
664-45567-01-15 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
664-45567-20-00 Shim (T:0.15Mm) |
664-45567-20-00 |
from US $5.09 |
||
|
7
|
7
664-45567-01-18 Shim (T:0.18Mm) |
664-45567-01-18 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
664-45567-30-00 Shim (T:0.18Mm) |
664-45567-30-00 |
from US $5.09 |
||
|
7
|
7
664-45567-01-40 Shim (T:0.40Mm) |
664-45567-01-40 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
664-45567-50-00 Shim (T:0.40Mm) |
664-45567-50-00 |
from US $5.09 |
||
|
7
|
7
664-45567-01-50 Shim (T:0.50Mm) |
664-45567-01-50 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
664-45567-60-00 Shim (T:0.50Mm) |
664-45567-60-00 |
from US $5.09 |
||
|
7
|
7
664-45567-01-30 Shim (T0.30Mm) |
664-45567-01-30 |
US $5.81 |
||
| replacement | |||||
|
7
|
7
664-45567-40-00 Shim (T:0.30Mm) |
664-45567-40-00 |
from US $5.09 |
||
|
8
|
8
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
9
|
9
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
9
|
9
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
10
|
10
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
10
|
10
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
11
|
11
689-44311-03-00 Housing, Water Pump |
689-44311-03-00 |
from US $47.99 |
||
|
12
|
12
689-W4432-02-00 Insert Cartridge Comp |
689-W4432-02-00 |
from US $35.33 |
||
|
13
|
13
689-44367-01-00 Damper, Water Seal 3 |
689-44367-01-00 |
from US $6.94 |
||
|
14
|
14
689-44323-03-00 Outer Plate, Cartridge |
689-44323-03-00 |
from US $15.19 |
||
|
15
|
15
689-44324-A0-00 Gasket, Cartridge |
689-44324-A0-00 |
from US $8.08 |
||
|
16
|
16
689-44352-02-00 Impeller |
689-44352-02-00 |
from US $24.23 |
||
|
17
|
17
664-44338-00-00 Key, Woodruff |
664-44338-00-00 |
from US $6.11 |
||
|
18
|
18
90101-06M56-00 Bolt |
90101-06M56-00 |
from US $2.83 |
||
| replacement | |||||
|
18
|
18
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
19
|
19
90209-06M04-00
Washer
|
90209-06M04-00 |
— | ||
|
20
|
20
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
21
|
21
689-44325-02-5B
Protector, Oil Seal
|
689-44325-02-5B |
— | ||
| replacement | |||||
|
21
|
21
689-44325-02-CA
Protector, Oil Seal
|
689-44325-02-CA |
— | ||
|
22
|
22
93210-40M10-00 O-Ring |
93210-40M10-00 |
from US $3.60 |
||
|
23
|
23
931-01220-67-00 Oil Seal |
931-01220-67-00 |
from US $8.05 |
||
|
24
|
24
689-44315-A0-00 Gasket, Water Pump |
689-44315-A0-00 |
from US $8.69 |
||
|
25
|
25
689-45344-00-94 Cover, Oil Seal |
689-45344-00-94 |
from US $47.53 |
||
|
26
|
26
689-44316-A0-00 Gasket, Water Pump |
689-44316-A0-00 |
from US $6.94 |
||
|
27
|
27
689-45501-00-00 Drive Shaft Comp |
689-45501-00-00 |
from US $421 |
||
|
27
|
27
689-45501-10-00 Drive Shaft Comp |
689-45501-10-00 |
from US $415.33 |
||
|
28
|
28
689-45551-00-00 Pinion (13T) |
689-45551-00-00 |
from US $107.07 |
||
|
29
|
29
90179-09M02-00 Nut |
90179-09M02-00 |
from US $5.74 |
||
|
30
|
30
689-45560-00-00 Gear |
689-45560-00-00 |
US $236.25 |
||
| replacement | |||||
|
30
|
30
689-45560-10-00 Gear |
689-45560-10-00 |
from US $236.25 |
||
|
31
|
31
689-45611-01-00
Shaft, Propeller
|
689-45611-01-00 |
— | ||
|
32
|
32
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $3.04 |
||
|
33
|
33
664-45631-00-00 Clutch, Dog |
664-45631-00-00 |
US $50.57 |
||
| replacement | |||||
|
33
|
33
6FM-45631-00-00 CLUTCH, DOG |
6FM-45631-00-00 |
from US $43.10 |
||
|
34
|
34
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
35
|
35
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
35
|
35
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
36
|
36
648-45635-00-00 Plunger, Shift |
648-45635-00-00 |
from US $4.04 |
||
|
37
|
37
90201-20417-00 Washer, Plate |
90201-20417-00 |
from US $5.06 |
||
|
38
|
38
689-45571-00-00 Gear 2 (24T) |
689-45571-00-00 |
from US $222.44 |
||
|
39
|
39
689-45331-01-94 Housing, Bearing |
689-45331-01-94 |
US $129.18 |
||
| replacement | |||||
|
39
|
39
689-45331-01-00 Housing, Bearing |
689-45331-01-00 |
from US $80.19 |
||
|
40
|
40
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $22.75 |
||
|
41
|
41
664-45577-01-10 Shim (T:0.10Mm) |
664-45577-01-10 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
664-45577-01-00 Shim (T:0.10Mm) |
664-45577-01-00 |
from US $7.37 |
||
|
41
|
41
664-45577-01-12 Shim (T:0.12Mm) |
664-45577-01-12 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
664-45577-10-00 Shim (T:0.12Mm) |
664-45577-10-00 |
from US $7.37 |
||
|
41
|
41
664-45577-01-15 Shim (T:0.15Mm) |
664-45577-01-15 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
664-45577-20-00 Shim (T:0.15Mm) |
664-45577-20-00 |
from US $7.37 |
||
|
41
|
41
664-45577-01-18 Shim (T:0.18Mm) |
664-45577-01-18 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
664-45577-30-00 Shim (T:0.18Mm) |
664-45577-30-00 |
from US $6.35 |
||
|
41
|
41
664-45577-01-30 Shim (T:0.30Mm) |
664-45577-01-30 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
664-45577-40-00 Shim (T:0.30Mm) |
664-45577-40-00 |
from US $7.37 |
||
|
41
|
41
664-45577-01-40 Shim (T:0.40Mm) |
664-45577-01-40 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
664-45577-50-00 Shim (T:0.40Mm) |
664-45577-50-00 |
from US $6.35 |
||
|
41
|
41
664-45577-01-50 Shim (T:0.50Mm) |
664-45577-01-50 |
US $7.37 |
||
| replacement | |||||
|
41
|
41
664-45577-60-00 Shim (T:0.50Mm) |
664-45577-60-00 |
from US $7.37 |
||
|
42
|
42
664-45576-00-00 Washer, Thrust 2 |
664-45576-00-00 |
from US $12.18 |
||
|
43
|
43
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $4.72 |
||
|
44
|
44
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.40 |
||
|
45
|
45
931-0120M-07-00 Oil Seal |
931-0120M-07-00 |
from US $5.74 |
||
|
46
|
46
90214-45M02-00 Washer, Claw |
90214-45M02-00 |
from US $7.51 |
||
|
47
|
47
664-45384-00-00 Ecrou |
664-45384-00-00 |
US $42.14 |
||
| replacement | |||||
|
47
|
47
664-45384-02-00 Nut |
664-45384-02-00 |
from US $29.86 |
||
|
48
|
48
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.60 |
||
|
49
|
49
689-44312-00-5B Cover, Water Pump Housing |
689-44312-00-5B |
US $59.13 |
||
| replacement | |||||
|
49
|
49
689-44312-00-CA Cover, Water Pump Housing |
689-44312-00-CA |
US $33.48 |
||
|
50
|
50
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
51
|
51
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
51
|
51
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
52
|
52
695-44150-00-00 Shift Cam Assembly |
695-44150-00-00 |
US $51.74 |
||
|
52
|
52
695-44150-10-00 Shift Cam Assembly |
695-44150-10-00 |
from US $56.41 |
||
|
53
|
53
664-44147-00-00 Boot, Shift Rod |
664-44147-00-00 |
from US $9.49 |
||
|
54
|
54
689-44176-01-00
Bracket
|
689-44176-01-00 |
— | ||
|
55
|
55
97780-50110-00 Screw, Pan Head |
97780-50110-00 |
from US $2.27 |
||
| replacement | |||||
|
55
|
55
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
