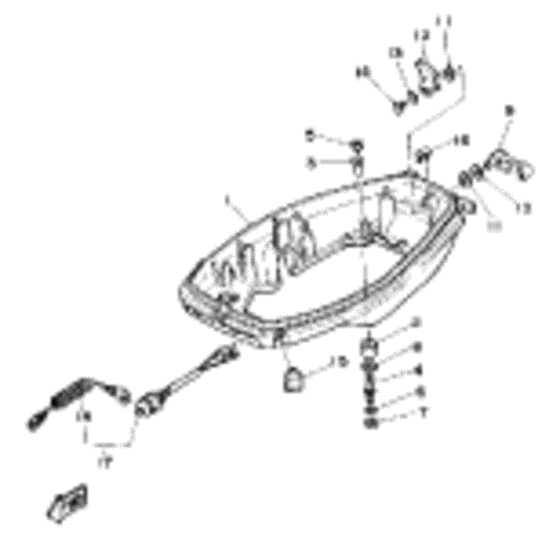

Bottom cowling Diagram Yamaha 25 ES/LH
- Year
- 1990
- Model
- CV25
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-42711-01-EJ Bottom Cowling |
689-42711-01-EJ |
US $486.61 |
||
| replacement | |||||
|
1
|
1
689-42711-02-EJ
Bottom Cowl
|
689-42711-02-EJ |
— | ||
|
2
|
2
90480-15M06-00 Grommet |
90480-15M06-00 |
from US $2.36 |
||
|
3
|
3
90387-08M25-00 Collar |
90387-08M25-00 |
from US $6.38 |
||
|
4
|
4
6G0-42796-00-00 Bolt 1 |
6G0-42796-00-00 |
from US $9.07 |
||
|
5
|
5
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
7
|
7
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
8
|
8
90201-08M87-00 Washer, Plate |
90201-08M87-00 |
from US $4.96 |
||
|
9
|
9
689-42815-00-00 Lever, Clamp |
689-42815-00-00 |
from US $21.54 |
||
|
10
|
10
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
11
|
11
90386-12069-00 Bush |
90386-12069-00 |
from US $1.94 |
||
|
12
|
12
689-42816-00-00 Lever, Clamp |
689-42816-00-00 |
from US $17.14 |
||
|
13
|
13
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
14
|
14
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
14
|
14
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
15
|
15
689-42725-00-00 Grommet |
689-42725-00-00 |
US $10.20 |
||
| replacements | |||||
|
15
|
15
689-42725-01-00 Grommet |
689-42725-01-00 |
US $10.20 |
||
|
15
|
15
689-42725-02-00 Grommet |
689-42725-02-00 |
from US $9.59 |
||
|
16
|
16
647-42523-00-00 Spacer, Friction |
647-42523-00-00 |
from US $4.53 |
||
|
17
|
17
689-82575-03-00 Engine Stop Switch Assembly (689-82575-02-00)689-82575-02-00 |
689-82575-03-00 |
US $82.48 |
||
| replacement | |||||
|
17
|
17
6E9-82575-02-00 Engine Stop Switch Assy689-82575-02-00 |
6E9-82575-02-00 |
from US $49.99 |
||
|
18
|
18
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
