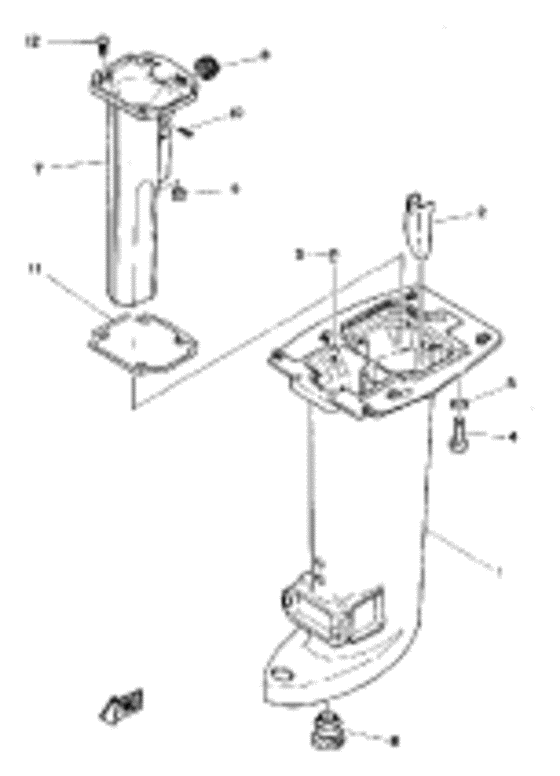

Upper casing Diagram Yamaha 25 ES/LH
- Year
- 1990
- Model
- CV25
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61N-W4511-11-EJ
Casing, Upper
|
61N-W4511-11-EJ |
— | ||
| replacement | |||||
|
1
|
1
689-45101-13-EJ
Casing, Upper (Long,ej)(61N)
|
689-45101-13-EJ |
— | ||
|
2
|
2
689-41132-10-94
Manifold, Exhaust
|
689-41132-10-94 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
4
|
4
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
4
|
4
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
6
|
6
689-45127-00-00
Seal
|
689-45127-00-00 |
— | ||
|
7
|
7
664-41131-01-94 Manifold, Ext. 1 |
664-41131-01-94 |
US $179.61 |
||
| replacement | |||||
|
7
|
7
664-41131-01-00 MANIFOLD, EXT. 1 |
664-41131-01-00 |
from US $99.25 |
||
|
8
|
8
664-41133-00-00 Gasket, Exhaust Manifold 1 |
664-41133-00-00 |
from US $15.80 |
||
|
9
|
9
664-41135-00-00 Gasket, Exhaust Manifold |
664-41135-00-00 |
from US $11.03 |
||
|
10
|
10
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
11
|
11
664-41134-00-00 Gasket, Exh.mani.2 |
664-41134-00-00 |
US $19.13 |
||
| replacement | |||||
|
11
|
11
664-41134-A0-00 Gasket, Exhaust Manifold |
664-41134-A0-00 |
from US $10.22 |
||
|
12
|
12
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
