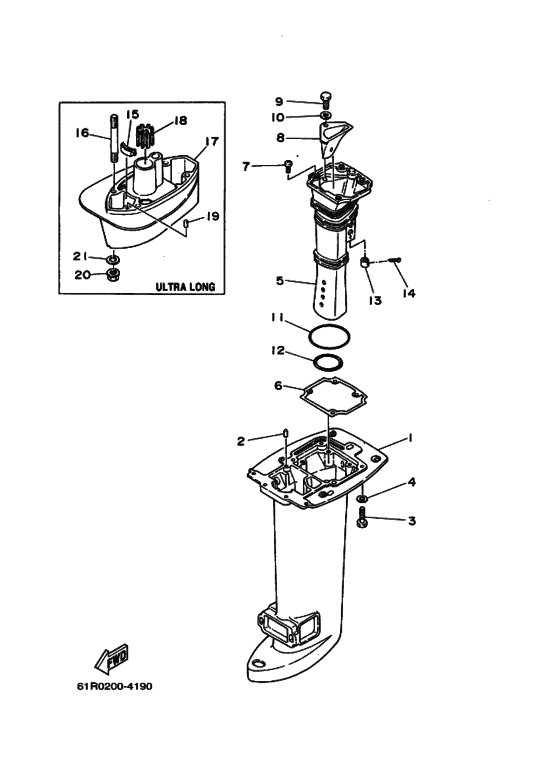

Upper casing Diagram Yamaha 25 (E)MHS/L
- Year
- 2001
- Model
- E25A
- Model code
- 61N
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-45111-04-4D Casing, UpperS S |
689-45111-04-4D |
US $429.70 |
||
| replacement | |||||
|
1
|
1
689-45111-04-8D Casing, UpperS S |
689-45111-04-8D |
US $533.59 |
||
|
1
|
1
689-45111-13-4D Casing, UpperL,X L |
689-45111-13-4D |
from US $440.90 |
||
|
2
|
2
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
3
|
3
97075-08030-00 Bolt |
97075-08030-00 |
US $2.91 |
||
| replacement | |||||
|
3
|
3
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
4
|
4
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
4
|
4
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
5
|
5
6A8-41131-00-5B
Manifold, Ext. 1
S |
6A8-41131-00-5B |
— | ||
|
5
|
5
6A8-41131-10-5B Manifold, Ext. 1L,X |
6A8-41131-10-5B |
from US $93.35 |
||
|
6
|
6
664-41134-A0-00 Gasket, Exhaust Manifold |
664-41134-A0-00 |
from US $10.22 |
||
|
7
|
7
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
7
|
7
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
8
|
8
689-41137-00-94
Guide, Exhaust
|
689-41137-00-94 |
— | ||
|
9
|
9
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.64 |
||
|
10
|
10
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
11
|
11
689-41141-00-00 Seal 1 |
689-41141-00-00 |
from US $11.76 |
||
|
12
|
12
689-41142-00-00 Seal |
689-41142-00-00 |
from US $11.76 |
||
|
13
|
13
6A8-41135-00-00 Gasket, Exhaust ManifoldS |
6A8-41135-00-00 |
from US $4.95 |
||
|
13
|
13
689-41135-00-00 Gasket, Exhaust ManifoldL,X L |
689-41135-00-00 |
US $8.51 |
||
|
14
|
14
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
14
|
14
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
15
|
15
61N-45375-00-00 Damper, SealX |
61N-45375-00-00 |
US $6.38 |
||
|
16
|
16
90116-10M33-00 Bolt, StudX |
90116-10M33-00 |
US $14.59 |
||
|
17
|
17
61N-45211-31-4D ExtensionX X |
61N-45211-31-4D |
US $673.20 |
||
|
18
|
18
689-45318-00-00 Bushing, Drive ShaftX |
689-45318-00-00 |
US $35.99 |
||
|
19
|
19
93606-11M24-00 Pin, DowelX |
93606-11M24-00 |
from US $3.38 |
||
|
20
|
20
90179-10M03-00 NutX |
90179-10M03-00 |
US $10.48 |
||
|
21
|
21
92995-10600-00 Washer, PlateX |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
21
|
21
929-90106-00-00 Washer, PlateX |
929-90106-00-00 |
from US $1.18 |
||
