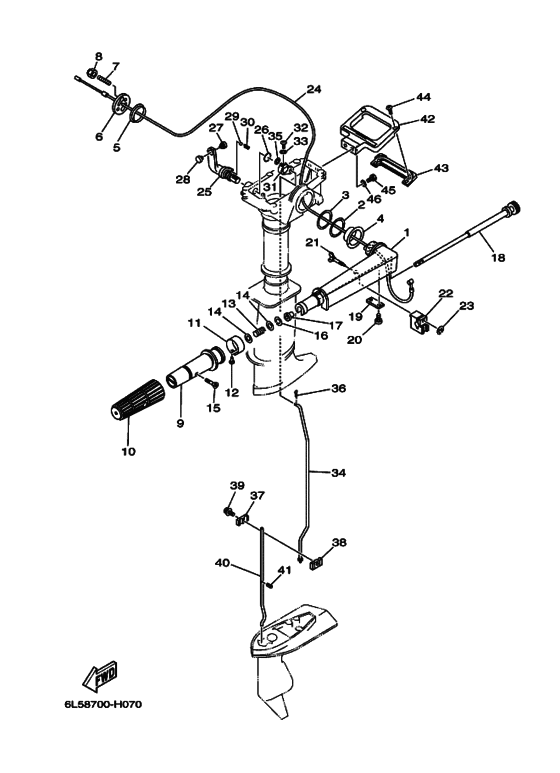

Control Diagram Yamaha 3 (Malta) MHS
- Year
- 2010
- Model
- 3A
- Model code
- 6L59
- Year
- 2010
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 3
- Sales region
- Finland (100)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-42111-12-4D Handle, Steering |
6G1-42111-12-4D |
US $100.03 |
||
| replacement | |||||
|
1
|
1
6G1-42111-12-8D HANDLE, STEERING |
6G1-42111-12-8D |
from US $100.03 |
||
|
2
|
2
90206-36M21-00 Washer, Wave |
90206-36M21-00 |
from US $7.21 |
||
|
3
|
3
90202-36M55-00 Washer, Plate |
90202-36M55-00 |
from US $2.77 |
||
|
4
|
4
90386-34M97-00 Bush |
90386-34M97-00 |
from US $4.04 |
||
|
5
|
5
90386-33M96-00 Bush |
90386-33M96-00 |
from US $3.38 |
||
|
6
|
6
6G1-42131-02-00 Cover, Handle Steering |
6G1-42131-02-00 |
from US $9.78 |
||
|
7
|
7
90116-08016-00 Bolt, Stud |
90116-08016-00 |
from US $7.51 |
||
|
8
|
8
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
8
|
8
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
9
|
9
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
10
|
10
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
10
|
10
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
11
|
11
6L5-42137-20-00
Indicator, Throttle
|
6L5-42137-20-00 |
— | ||
|
12
|
12
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
13
|
13
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
14
|
14
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
|
15
|
15
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
15
|
15
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
16
|
16
90209-08M17-00 Washer |
90209-08M17-00 |
from US $2.41 |
||
|
17
|
17
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
18
|
18
6G1-42138-01-00 Lever, Throttle |
6G1-42138-01-00 |
from US $46.42 |
||
| replacement | |||||
|
18
|
18
6EG-G2138-00-00 Lever, Throttle |
6EG-G2138-00-00 |
from US $23.66 |
||
|
19
|
19
6E0-42159-02-00 Stay |
6E0-42159-02-00 |
from US $6.38 |
||
|
20
|
20
978-85050-12-00 Screw, Pan Head |
978-85050-12-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
21
|
21
6L5-42125-00-00 Bolt, Friction Adjusting |
6L5-42125-00-00 |
from US $14.89 |
||
|
22
|
22
6G1-42126-00-00 Friction, Steering Handle Grip |
6G1-42126-00-00 |
from US $8.64 |
||
| replacement | |||||
|
22
|
22
6EE-G2126-00-00 Friction, Steering |
6EE-G2126-00-00 |
from US $2.98 |
||
|
23
|
23
99080-03600-00 Circlip |
99080-03600-00 |
from US $1.50 |
||
|
24
|
24
6L5-26301-01-00 Throttle Cable Assy |
6L5-26301-01-00 |
US $19.56 |
||
| replacement | |||||
|
24
|
24
6GE-F6301-00-00 Throttle Cable Assy |
6GE-F6301-00-00 |
from US $17.65 |
||
|
25
|
25
6L5-44111-00-00 Handle, Gear Shift |
6L5-44111-00-00 |
from US $12.47 |
||
|
26
|
26
93210-12327-00 O-Ring |
93210-12327-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.70 |
||
|
27
|
27
6L5-44196-20-00 Indicator 3 |
6L5-44196-20-00 |
US $3.12 |
||
|
28
|
28
6L5-44197-20-00 Indicator 4 |
6L5-44197-20-00 |
US $3.40 |
||
|
29
|
29
93505-16024-00 Ball, Steel |
93505-16024-00 |
from US $2.45 |
||
|
30
|
30
90501-12274-00 1090 Spring, Compression |
90501-12274-00 |
from US $1.98 |
||
|
31
|
31
6L5-44121-00-00 Lever, Shift Rod |
6L5-44121-00-00 |
US $10.48 |
||
| replacement | |||||
|
31
|
31
6GE-G4121-00-00 Lever, Shift Rod |
6GE-G4121-00-00 |
from US $8.89 |
||
|
32
|
32
97780-40520-00 Screw, Tapping |
97780-40520-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
97780-40120-00 Ybs83-420 Screw,panh,tapping |
97780-40120-00 |
from US $1.42 |
||
|
33
|
33
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
34
|
34
6L5-44143-00-00 Rod, Shift |
6L5-44143-00-00 |
US $22.39 |
||
|
35
|
35
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
36
|
36
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
37
|
37
6E0-44145-00-00 Connector, Shift Rod 1 |
6E0-44145-00-00 |
from US $12.61 |
||
|
38
|
38
6E0-44146-00-00 Connector, Shift Rod 2 |
6E0-44146-00-00 |
from US $12.61 |
||
|
39
|
39
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
39
|
39
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
39
|
39
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
39
|
39
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
40
|
40
6L5-44144-00-00 Rod, ShiftS(17.4") |
6L5-44144-00-00 |
US $8.64 |
||
| replacement | |||||
|
40
|
40
6EG-G4144-00-00 Rod, ShiftS(17.4") |
6EG-G4144-00-00 |
from US $8.64 |
||
|
41
|
41
91609-25014-00 Pin, Spring |
91609-25014-00 |
US $1.56 |
||
| replacement | |||||
|
41
|
41
91690-25014-00
Pin, Spring
|
91690-25014-00 |
— | ||
|
42
|
42
6L5-42731-00-4D Carrying Handle |
6L5-42731-00-4D |
US $56.92 |
||
| replacement | |||||
|
42
|
42
6L5-42731-00-8D CARRYING HANDLE |
6L5-42731-00-8D |
from US $35.69 |
||
|
43
|
43
6L5-42735-20-00 Protector |
6L5-42735-20-00 |
US $7.37 |
||
|
44
|
44
90161-04M02-00 Screw, Tapping |
90161-04M02-00 |
US $1.84 |
||
|
45
|
45
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
45
|
45
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
46
|
46
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
46
|
46
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
