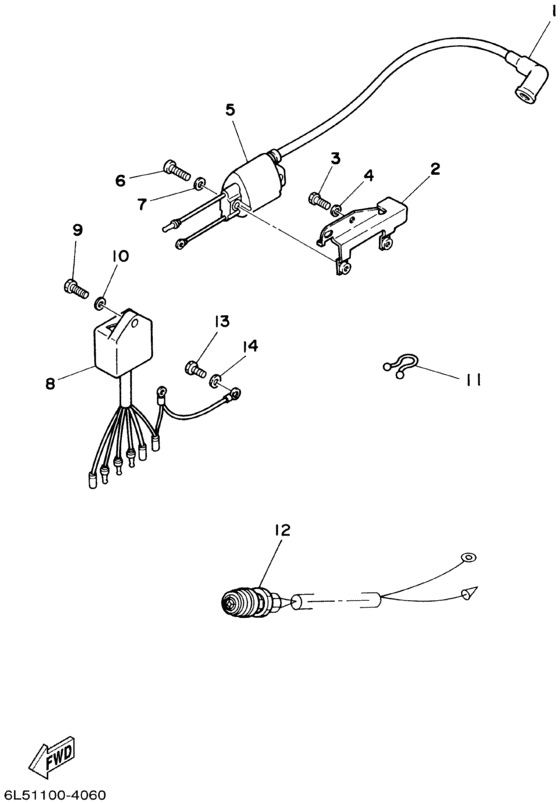

Electrical Diagram Yamaha 3 (Malta) MS/LH
- Year
- 2002
- Model
- 3
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 3
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-82370-01-00 Plug Cap Assy |
663-82370-01-00 |
from US $6.62 |
||
|
2
|
2
6L5-82316-00-00 Bracket, Ignition Coil |
6L5-82316-00-00 |
US $11.48 |
||
| replacement | |||||
|
2
|
2
6GE-H2316-00-00 Bracket, Ignition Co |
6GE-H2316-00-00 |
US $19.33 |
||
|
3
|
3
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
3
|
3
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
4
|
4
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
6L5-85570-M0-00 Ignition Coil Assy |
6L5-85570-M0-00 |
US $72.40 |
||
|
6
|
6
97880-06016-00 Screw, Pan Head |
97880-06016-00 |
US $2.77 |
||
| replacement | |||||
|
6
|
6
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
6L5-85540-M0-00 C.d.i. Unit Assy |
6L5-85540-M0-00 |
US $143.69 |
||
| replacement | |||||
|
8
|
8
6L5-85540-M1-00 C.d.i. Unit Assy |
6L5-85540-M1-00 |
US $120.49 |
||
|
9
|
9
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
9
|
9
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
12
|
12
6L5-82550-00-00 Engine Stop Switch Assy |
6L5-82550-00-00 |
US $28.62 |
||
| replacement | |||||
|
12
|
12
6A0-82550-01-00 Engine Stop Switch Assembly |
6A0-82550-01-00 |
from US $17.86 |
||
|
13
|
13
97090-06012-00 Bolt |
97090-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
