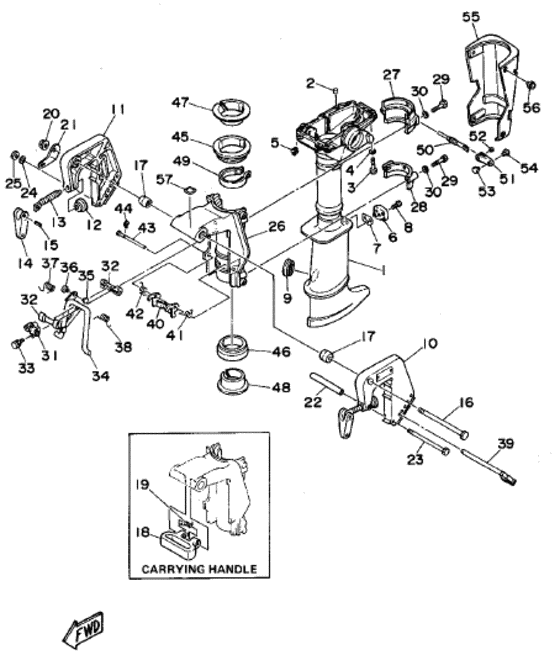

Upper casing bracket Diagram Yamaha 3 (Malta) MS/LH
- Year
- 1994
- Model
- 3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 3
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L5-45111-01-4D
Casing, Upper
|
6L5-45111-01-4D |
— | ||
|
2
|
2
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
3
|
3
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
3
|
3
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
6
|
6
6L5-45152-00-00 Cover, Upper Casing 2 |
6L5-45152-00-00 |
from US $6.66 |
||
|
7
|
7
6L5-45115-A0-00 Gasket, Upper Casing |
6L5-45115-A0-00 |
from US $4.55 |
||
|
8
|
8
90149-05M08-00 Screw |
90149-05M08-00 |
from US $1.39 |
||
| replacement | |||||
|
8
|
8
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
9
|
9
647-45151-01-00 Cover, Upper Casing |
647-45151-01-00 |
US $4.96 |
||
|
10
|
10
6L5-43111-00-4D Bracket, Clamp 1 |
6L5-43111-00-4D |
US $78.06 |
||
| replacements | |||||
|
10
|
10
6L5-43111-01-8D BRACKET, CLAMP 1 |
6L5-43111-01-8D |
US $63.53 |
||
|
10
|
10
6GE-G3111-00-8D Bracket, Clamp 1 |
6GE-G3111-00-8D |
US $89.10 |
||
|
11
|
11
6L5-43112-00-4D Bracket, Clamp 2 |
6L5-43112-00-4D |
US $78.06 |
||
| replacement | |||||
|
11
|
11
6GE-G3112-00-8D Bracket, Clamp 2 |
6GE-G3112-00-8D |
US $115.33 |
||
|
12
|
12
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
13
|
13
6E0-43116-01-00 Screw, Transom Clamp |
6E0-43116-01-00 |
from US $14.84 |
||
|
14
|
14
6E0-43118-00-00 Handle, Transom Clp |
6E0-43118-00-00 |
US $12.18 |
||
| replacements | |||||
|
14
|
14
6L8-G3118-01-00 Handle Transom Clamp |
6L8-G3118-01-00 |
US $11.93 |
||
|
14
|
14
6E0-43118-01-00
Handle, Transom Clamp
|
6E0-43118-01-00 |
— | ||
|
14
|
14
6EE-G3118-00-00 Handle, Transom Clamp |
6EE-G3118-00-00 |
from US $6.89 |
||
|
15
|
15
90254-04M00-00 Pin, Spring Type |
90254-04M00-00 |
US $2.41 |
||
| replacement | |||||
|
15
|
15
90243-04M01-00 Pin |
90243-04M01-00 |
from US $2.64 |
||
|
16
|
16
90101-08M10-00 Bolt |
90101-08M10-00 |
from US $5.67 |
||
|
17
|
17
6G8-43136-00-00 Friction |
6G8-43136-00-00 |
US $10.34 |
||
| replacement | |||||
|
17
|
17
6G1-43136-00-00 Piece, Friction |
6G1-43136-00-00 |
from US $10.34 |
||
|
18
|
18
6L5-42121-00-00 Bracket |
6L5-42121-00-00 |
from US $9.78 |
||
|
19
|
19
90508-16M30-00 Spring, Torsion |
90508-16M30-00 |
from US $2.64 |
||
|
20
|
20
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
21
|
21
6A1-43113-01-00 Plate, Clamp Bracket |
6A1-43113-01-00 |
from US $6.94 |
||
|
22
|
22
903-8706M-11-00
Collar
|
903-8706M-11-00 |
— | ||
| replacement | |||||
|
22
|
22
6EE-G3122-00-00 Collar Clamp Brack |
6EE-G3122-00-00 |
US $23.80 |
||
|
23
|
23
90101-06335-00 Bolt |
90101-06335-00 |
from US $8.22 |
||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
25
|
25
956-01062-00-00
Nut, U-Flange
|
956-01062-00-00 |
— | ||
| replacement | |||||
|
25
|
25
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
26
|
26
6L5-43311-01-4D Bracket, Swivel 1 |
6L5-43311-01-4D |
US $102.24 |
||
| replacements | |||||
|
26
|
26
6L5-43311-01-8D
Bracket, Swivel 1
|
6L5-43311-01-8D |
— | ||
|
26
|
26
6GE-G3311-00-8D Bracket Swivel 1 |
6GE-G3311-00-8D |
US $213.64 |
||
|
27
|
27
6L5-44511-00-4D Cover, Upper Mount |
6L5-44511-00-4D |
US $25.22 |
||
| replacement | |||||
|
27
|
27
6L5-44511-00-8D Cover, Upper Mount |
6L5-44511-00-8D |
US $58.63 |
||
|
28
|
28
6L5-44553-00-4D Cover, Lower Mount |
6L5-44553-00-4D |
US $37.99 |
||
|
29
|
29
97095-06035-00 Bolt(6R8) |
97095-06035-00 |
from US $2.69 |
||
| replacement | |||||
|
29
|
29
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
30
|
30
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
31
|
31
6E0-43313-00-94 Bracket, Swivel 3 |
6E0-43313-00-94 |
from US $11.33 |
||
|
32
|
32
620-43189-00-00 Bushing |
620-43189-00-00 |
from US $6.52 |
||
|
33
|
33
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
33
|
33
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
33
|
33
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
33
|
33
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
34
|
34
6L5-43181-00-00 Lever, Tilt Stop 1 |
6L5-43181-00-00 |
US $32.87 |
||
|
35
|
35
6L5-44196-00-00 Indicator 3 |
6L5-44196-00-00 |
from US $1.98 |
||
|
36
|
36
6L5-44197-00-00 Indicator 4 |
6L5-44197-00-00 |
from US $2.13 |
||
|
37
|
37
90508-16020-00 Spring, Torsion |
90508-16020-00 |
from US $6.80 |
||
|
38
|
38
90508-16021-00 Spring, Torsion |
90508-16021-00 |
from US $4.11 |
||
|
39
|
39
6L5-43160-00-00 Tilt Rod Assy |
6L5-43160-00-00 |
from US $17.71 |
||
|
40
|
40
6L5-43614-00-00 Plate, Tilt Lock |
6L5-43614-00-00 |
US $8.50 |
||
|
41
|
41
90508-08M26-00 Spring, Torsion |
90508-08M26-00 |
US $1.84 |
||
|
42
|
42
90508-08M27-00 Spring, Torsion |
90508-08M27-00 |
US $1.84 |
||
|
43
|
43
6L5-43659-00-00 Shaft, Reverse Lock |
6L5-43659-00-00 |
from US $7.93 |
||
|
44
|
44
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.66 |
||
|
45
|
45
6L5-42537-00-00 Bushing, Pivot Shaft |
6L5-42537-00-00 |
from US $10.20 |
||
|
46
|
46
6L5-42538-00-00 Bushing, Pivot Shaft |
6L5-42538-00-00 |
from US $16.61 |
||
|
47
|
47
6L5-42539-00-00 Bushing, Pivot Shaft |
6L5-42539-00-00 |
from US $13.88 |
||
|
48
|
48
6L5-42549-00-00 Bushing, Pivot Shaft |
6L5-42549-00-00 |
from US $9.57 |
||
|
49
|
49
6E0-42528-03-00 Plate, Friction |
6E0-42528-03-00 |
US $12.04 |
||
| replacement | |||||
|
49
|
49
6E0-42528-04-00 Plate, Friction |
6E0-42528-04-00 |
from US $12.04 |
||
|
50
|
50
6L5-42529-01-00 Screw, Friction Piece |
6L5-42529-01-00 |
from US $10.20 |
||
|
51
|
51
6L5-42561-00-00 Knob, Steering Lock |
6L5-42561-00-00 |
from US $6.23 |
||
|
52
|
52
90266-04M05-00 Rivet |
90266-04M05-00 |
from US $1.84 |
||
|
53
|
53
6L5-44196-00-00 Indicator 3 |
6L5-44196-00-00 |
from US $1.98 |
||
|
54
|
54
6L5-44197-00-00 Indicator 4 |
6L5-44197-00-00 |
from US $2.13 |
||
|
55
|
55
6L5-43318-11-00 Cover |
6L5-43318-11-00 |
US $28.48 |
||
|
56
|
56
90159-06M10-00 Screw, With Washer |
90159-06M10-00 |
from US $1.98 |
||
|
57
|
57
6A1-42792-01-00
Mark (100:1)
100:1 |
6A1-42792-01-00 |
— | ||
| replacement | |||||
|
57
|
57
999-99999-99-00
Not Available
100:1 |
999-99999-99-00 |
— | ||
