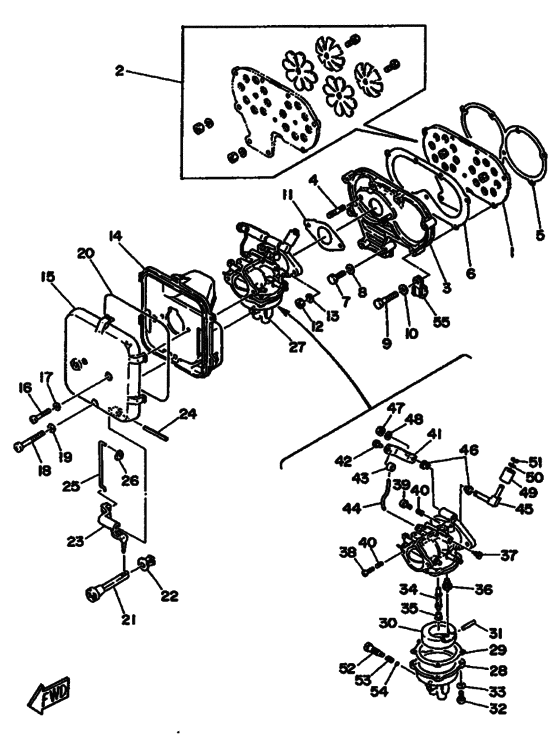

Intake Diagram Yamaha 30 MHS/L
- Year
- 1990
- Model
- 30A
- Model code
- 689
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-13610-01-00 Reed Valve Assembly |
689-13610-01-00 |
from US $200.48 |
||
|
2
|
2
689-W0004-00-00 Reed Set |
689-W0004-00-00 |
from US $45.46 |
||
|
3
|
3
648-13641-01-94 Manifold, Intake 1 |
648-13641-01-94 |
US $210 |
||
| replacement | |||||
|
3
|
3
648-13641-02-1S Manifold 1 |
648-13641-02-1S |
US $168.56 |
||
|
4
|
4
90116-06M30-00 Bolt, Stud |
90116-06M30-00 |
from US $1.98 |
||
|
5
|
5
648-16321-00-00
Plate, Friction
|
648-16321-00-00 |
— | ||
|
6
|
6
648-13645-00-00 Gasket, Manifold 1 |
648-13645-00-00 |
US $6.52 |
||
| replacement | |||||
|
6
|
6
648-13645-A0-00 Gasket, Manifold 1 |
648-13645-A0-00 |
from US $3.04 |
||
|
7
|
7
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
7
|
7
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
9
|
9
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
9
|
9
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
648-14198-00-00 Gasket |
648-14198-00-00 |
US $3.40 |
||
| replacement | |||||
|
11
|
11
648-14198-A0-00 Gasket |
648-14198-A0-00 |
from US $3.40 |
||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
14
|
14
689-14417-01-00
Cover 1
|
689-14417-01-00 |
— | ||
|
15
|
15
689-14418-01-00
Cover 2
|
689-14418-01-00 |
— | ||
|
16
|
16
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
98580-05550-00 Screw, Pan Head |
98580-05550-00 |
from US $4.11 |
||
|
19
|
19
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
20
|
20
932-1162M-24-00 O-Ring |
932-1162M-24-00 |
from US $16.57 |
||
|
21
|
21
682-41271-00-00 Knob, Choke |
682-41271-00-00 |
US $4.96 |
||
| replacement | |||||
|
21
|
21
682-41271-01-00 Knob, Choke |
682-41271-01-00 |
from US $4.38 |
||
|
22
|
22
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
23
|
23
689-41252-01-00 Lever, Choke 1 |
689-41252-01-00 |
from US $11.76 |
||
|
24
|
24
91690-40048-00 Pin, Spring |
91690-40048-00 |
from US $2.98 |
||
|
25
|
25
689-41256-00-00 Rod, Choke 1 |
689-41256-00-00 |
US $5.29 |
||
|
26
|
26
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
27
|
27
689-14301-81-00
Carburetor Assy 1
|
689-14301-81-00 |
— | ||
|
28
|
28
689-14381-00-00
Body, Float Chamber
|
689-14381-00-00 |
— | ||
| replacement | |||||
|
28
|
28
689-14381-01-00
Body, Float Chamber
|
689-14381-01-00 |
— | ||
|
29
|
29
648-14384-01-00 Gasket, Float Chamber |
648-14384-01-00 |
from US $10.34 |
||
|
30
|
30
648-14385-00-00 Float |
648-14385-00-00 |
from US $28.76 |
||
|
31
|
31
6E5-14386-01-00 Pin, Float |
6E5-14386-01-00 |
from US $3.05 |
||
|
32
|
32
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
33
|
33
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
34
|
34
689-14341-00-00 Nozzle, Main |
689-14341-00-00 |
US $38.25 |
||
|
35
|
35
689-14343-67-00 Jet, Main 135Jet, main (135) |
689-14343-67-00 |
US $15.87 |
||
| replacement | |||||
|
35
|
35
689-14343-68-00 Jet, Main (#135) |
689-14343-68-00 |
from US $10.35 |
||
|
36
|
36
648-14390-14-00 Needle Valve AssyValve seat assy (1.4[) |
648-14390-14-00 |
from US $50.11 |
||
|
37
|
37
689-14342-27-00
Jet, Pilot Xx
|
689-14342-27-00 |
— | ||
|
38
|
38
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
38
|
38
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
39
|
39
647-14323-00-00 Screw, Air Adjusting |
647-14323-00-00 |
from US $6.21 |
||
|
40
|
40
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
41
|
41
689-41210-00-00
Axle Arm Assembly.carb
|
689-41210-00-00 |
— | ||
|
42
|
42
677-14327-00-00 Screw |
677-14327-00-00 |
US $2.35 |
||
|
43
|
43
689-41226-00-00
Lever End, Throttle Lever
|
689-41226-00-00 |
— | ||
|
44
|
44
689-41241-00-00
Rod 1
|
689-41241-00-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
748-W4121-00-00
Sheave Shaft, Accel. Link
|
748-W4121-00-00 |
— | ||
|
46
|
46
90386-05002-00 Bush |
90386-05002-00 |
from US $2.41 |
||
|
47
|
47
95303-05700-00 Nut |
95303-05700-00 |
US $1.98 |
||
| replacement | |||||
|
47
|
47
95380-05700-00 Nut |
95380-05700-00 |
from US $2.22 |
||
|
48
|
48
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
49
|
49
664-41231-00-00 Collar, Guide Pin |
664-41231-00-00 |
US $3.24 |
||
|
50
|
50
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
51
|
51
93430-04031-00 Circlip |
93430-04031-00 |
from US $2.83 |
||
|
52
|
52
646-14394-00-00 Valve, Drain |
646-14394-00-00 |
US $9.11 |
||
