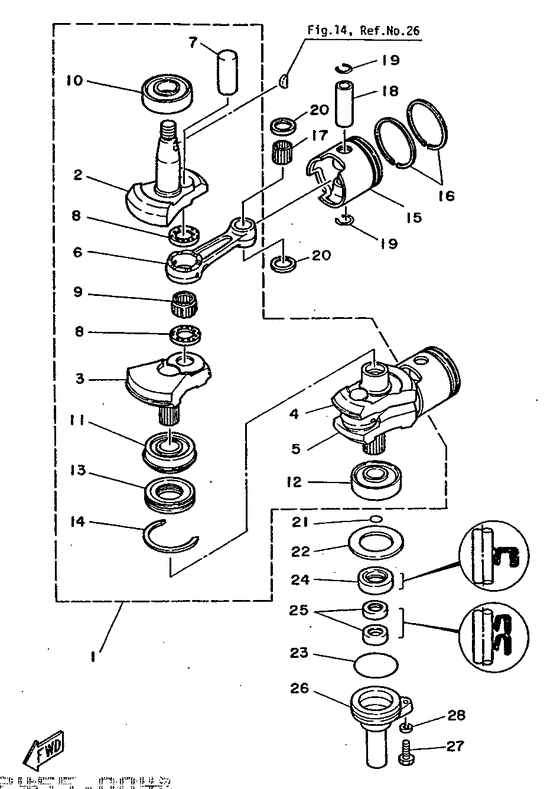

Crankshaft & Piston Diagram Yamaha 30 MHS/L
- Year
- 1985
- Model
- 30A
- Model code
- 689
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-11400-03-00
Crankshaft Assembly
|
689-11400-03-00 |
— | ||
|
02
|
02
689-11412-03-00 Crank 1 |
689-11412-03-00 |
US $185.02 |
||
|
03
|
03
689-11422-02-00 Crank 2 |
689-11422-02-00 |
US $296.52 |
||
|
04
|
04
689-11432-02-00 Crank 3 |
689-11432-02-00 |
US $206.53 |
||
|
05
|
05
689-11442-02-00 Crank 4 |
689-11442-02-00 |
US $236.60 |
||
|
06
|
06
689-11651-00-00 Rod, Connecting |
689-11651-00-00 |
from US $67.66 |
||
|
07
|
07
689-11681-01-00 Pin, Crank 1 |
689-11681-01-00 |
from US $22.90 |
||
|
08
|
08
90209-24M03-00 Washer |
90209-24M03-00 |
from US $5.40 |
||
|
09
|
09
93310-624U5-00 Bearing |
93310-624U5-00 |
from US $30.56 |
||
|
10
|
10
933-06306-U1-00 Bearing |
933-06306-U1-00 |
from US $98.31 |
||
| replacement | |||||
|
10
|
10
93306-306U3-00 Bearing |
93306-306U3-00 |
from US $101.23 |
||
|
11
|
11
93390-00009-00 Bearing |
93390-00009-00 |
from US $80.41 |
||
|
12
|
12
933-06305-10-00
Bearing
|
933-06305-10-00 |
— | ||
| replacements | |||||
|
12
|
12
933-06305-71-00 Bearing |
933-06305-71-00 |
from US $52.86 |
||
|
12
|
12
93306-30550-00 Bearing |
93306-30550-00 |
from US $35.92 |
||
|
13
|
13
689-11515-00-00
Seal, Labyrinth 1
|
689-11515-00-00 |
— | ||
|
14
|
14
93440-62057-00 Circlip, Outer |
93440-62057-00 |
from US $2.02 |
||
|
15
|
15
689-11631-00-95 Piston Std |
689-11631-00-95 |
from US $141.44 |
||
| replacement | |||||
|
15
|
15
6K8-11631-00-95 Piston (Std) (Std) |
6K8-11631-00-95 |
from US $79.32 |
||
|
15
|
15
689-11635-00-00 Piston (0.25Mm O/s)Ap not shown |
689-11635-00-00 |
US $92.80 |
||
|
15
|
15
689-11636-00-00 Piston 2 O/s 0.50Piston (2nd o.s.) Ap not shown |
689-11636-00-00 |
from US $83.03 |
||
|
16
|
16
689-11610-21-00
Piston Ring Set Os (2Nd O/s)
Ap not shown |
689-11610-21-00 |
— | ||
|
16
|
16
689-11610-01-00 Piston Ring Setstd |
689-11610-01-00 |
from US $48.80 |
||
|
16
|
16
689-11610-11-00 Piston Ring SetAp not shown |
689-11610-11-00 |
from US $31.05 |
||
|
17
|
17
936-0220M-02-00 Pin, Dowel |
936-0220M-02-00 |
from US $2.02 |
||
|
18
|
18
689-11633-00-00 Pin, Piston |
689-11633-00-00 |
from US $8.42 |
||
|
19
|
19
663-11634-00-00 Clip, Piston Pin |
663-11634-00-00 |
US $3.68 |
||
| replacement | |||||
|
19
|
19
688-11634-00-00 Clip, Piston Pin |
688-11634-00-00 |
from US $2.36 |
||
|
20
|
20
90201-20M27-00 Washer, Plate |
90201-20M27-00 |
from US $5.40 |
||
|
21
|
21
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
22
|
22
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.86 |
||
|
23
|
23
932-1058M-21-00
O-Ring
|
932-1058M-21-00 |
— | ||
| replacement | |||||
|
23
|
23
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
24
|
24
93102-25M20-00 Oil Seal |
93102-25M20-00 |
US $9.35 |
||
| replacement | |||||
|
24
|
24
931-0225M-28-00 Oil Seal(6H4) |
931-0225M-28-00 |
from US $9.44 |
||
|
25
|
25
931-0416M-01-00
Oil Seal
|
931-0416M-01-00 |
— | ||
| replacement | |||||
|
25
|
25
931-0116M-36-00 Oil Seal |
931-0116M-36-00 |
from US $5.06 |
||
|
26
|
26
689-15396-00-94 Housing, Oil Seal |
689-15396-00-94 |
US $35.99 |
||
| replacements | |||||
|
26
|
26
689-15396-01-CA Housing, Oil Seal |
689-15396-01-CA |
from US $31.79 |
||
|
26
|
26
689-15396-01-9M Housing, Oil Seal |
689-15396-01-9M |
US $28.79 |
||
|
27
|
27
97395-06022-00 Boulon |
97395-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
27
|
27
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
