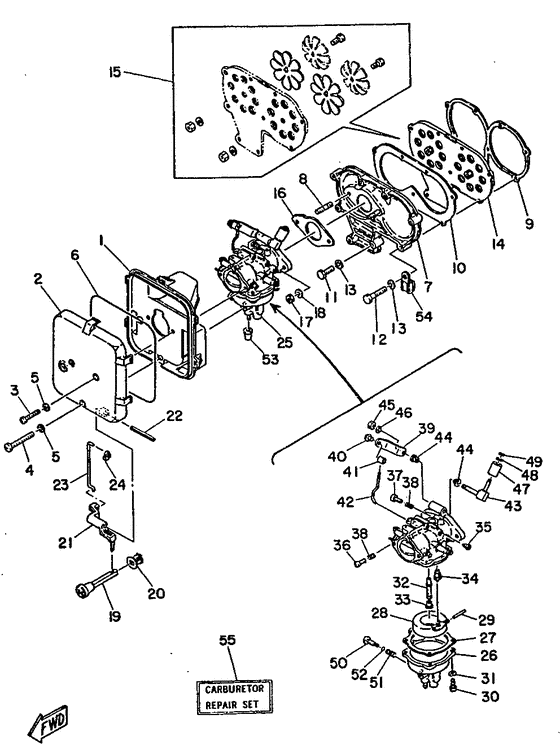

Intake Diagram Yamaha 30 MHS/L
- Year
- 1985
- Model
- 30A
- Model code
- 689
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-14417-00-00
Cover 1
|
689-14417-00-00 |
— | ||
| replacement | |||||
|
01
|
01
689-14417-01-00
Cover 1
|
689-14417-01-00 |
— | ||
|
02
|
02
689-14418-01-00
Cover 2
|
689-14418-01-00 |
— | ||
|
03
|
03
97803-05030-00 Screw, Pan Head |
97803-05030-00 |
US $2.27 |
||
| replacement | |||||
|
03
|
03
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
04
|
04
978-03050-50-00 Screw, Pan Head |
978-03050-50-00 |
US $4.11 |
||
| replacement | |||||
|
04
|
04
98580-05550-00 Screw, Pan Head |
98580-05550-00 |
from US $4.11 |
||
|
05
|
05
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
05
|
05
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
06
|
06
932-1162M-24-00 O-Ring |
932-1162M-24-00 |
from US $16.57 |
||
|
07
|
07
648-13641-01-94 Manifold, Intake 1 |
648-13641-01-94 |
US $210 |
||
| replacement | |||||
|
07
|
07
648-13641-02-1S Manifold 1 |
648-13641-02-1S |
US $168.56 |
||
|
08
|
08
90116-08M08-00
Bolt, Stud
|
90116-08M08-00 |
— | ||
|
09
|
09
648-13621-00-00 Gasket, Valve Seat |
648-13621-00-00 |
US $8.50 |
||
| replacement | |||||
|
09
|
09
648-13621-A1-00 Gasket, Valve Seat |
648-13621-A1-00 |
from US $7.08 |
||
|
10
|
10
648-13645-00-00 Gasket, Manifold 1 |
648-13645-00-00 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
648-13645-A0-00 Gasket, Manifold 1 |
648-13645-A0-00 |
from US $3.04 |
||
|
11
|
11
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
12
|
12
97313-06135-00
Bolt
|
97313-06135-00 |
— | ||
|
13
|
13
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
689-13610-00-00 Reed Valve Assembly |
689-13610-00-00 |
US $222.44 |
||
| replacement | |||||
|
14
|
14
689-13610-01-00 Reed Valve Assembly |
689-13610-01-00 |
from US $200.48 |
||
|
15
|
15
689-W0004-00-00 Reed Set |
689-W0004-00-00 |
from US $45.46 |
||
|
16
|
16
648-14198-00-00 Gasket |
648-14198-00-00 |
US $3.40 |
||
| replacement | |||||
|
16
|
16
648-14198-A0-00 Gasket |
648-14198-A0-00 |
from US $3.40 |
||
|
17
|
17
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
18
|
18
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
682-41271-00-00 Knob, Choke |
682-41271-00-00 |
US $4.96 |
||
| replacement | |||||
|
19
|
19
682-41271-01-00 Knob, Choke |
682-41271-01-00 |
from US $4.38 |
||
|
20
|
20
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
21
|
21
689-41252-00-00 Lever, Choke 1 |
689-41252-00-00 |
US $11.76 |
||
| replacement | |||||
|
21
|
21
689-41252-01-00 Lever, Choke 1 |
689-41252-01-00 |
from US $11.76 |
||
|
22
|
22
91690-40048-00 Pin, Spring |
91690-40048-00 |
from US $2.98 |
||
|
23
|
23
689-41256-00-00 Rod, Choke 1 |
689-41256-00-00 |
US $5.29 |
||
|
24
|
24
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
25
|
25
689-14301-81-00
Carburetor Assy 1
|
689-14301-81-00 |
— | ||
|
26
|
26
689-14381-01-00
Body, Float Chamber
|
689-14381-01-00 |
— | ||
|
27
|
27
648-14384-01-00 Gasket, Float Chamber |
648-14384-01-00 |
from US $10.34 |
||
|
28
|
28
648-14385-00-00 Float |
648-14385-00-00 |
from US $28.76 |
||
|
29
|
29
689-14386-00-00
Pin, Float
|
689-14386-00-00 |
— | ||
| replacement | |||||
|
29
|
29
6E5-14386-01-00 Pin, Float |
6E5-14386-01-00 |
from US $3.05 |
||
|
30
|
30
98503-04012-00 Screw, Pan Head |
98503-04012-00 |
from US $1.28 |
||
| replacement | |||||
|
30
|
30
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
31
|
31
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
32
|
32
689-14341-00-00 Nozzle, Main |
689-14341-00-00 |
US $38.25 |
||
|
33
|
33
689-14343-67-00 Jet, Main 135Jet, main (135) |
689-14343-67-00 |
US $15.87 |
||
| replacement | |||||
|
33
|
33
689-14343-68-00 Jet, Main (#135) |
689-14343-68-00 |
from US $10.35 |
||
|
34
|
34
648-14390-14-00 Needle Valve AssyValve seat assy (1.4[) |
648-14390-14-00 |
from US $50.11 |
||
|
35
|
35
689-14342-27-00
Jet, Pilot Xx
|
689-14342-27-00 |
— | ||
|
36
|
36
648-14321-00-00
Screw, Pan Head
|
648-14321-00-00 |
— | ||
| replacement | |||||
|
36
|
36
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
37
|
37
647-14323-00-00 Screw, Air Adjusting |
647-14323-00-00 |
from US $6.21 |
||
|
38
|
38
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
39
|
39
689-41210-00-00
Axle Arm Assembly.carb
|
689-41210-00-00 |
— | ||
|
40
|
40
677-14327-00-00 Screw |
677-14327-00-00 |
US $2.35 |
||
|
41
|
41
689-41226-00-00
Lever End, Throttle Lever
|
689-41226-00-00 |
— | ||
|
42
|
42
689-41241-00-00
Rod 1
|
689-41241-00-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
689-41216-00-00 Sheave Shaft, Acc L |
689-41216-00-00 |
US $25.55 |
||
| replacement | |||||
|
43
|
43
648-W4121-00-00 Sheave Shaft, Accel Link |
648-W4121-00-00 |
US $25.55 |
||
|
44
|
44
90386-05002-00 Bush |
90386-05002-00 |
from US $2.41 |
||
|
45
|
45
95303-05700-00 Nut |
95303-05700-00 |
US $1.98 |
||
| replacement | |||||
|
45
|
45
95380-05700-00 Nut |
95380-05700-00 |
from US $2.22 |
||
|
46
|
46
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
47
|
47
664-41231-00-00 Collar, Guide Pin |
664-41231-00-00 |
US $3.24 |
||
|
48
|
48
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
49
|
49
93430-04031-00 Circlip |
93430-04031-00 |
from US $2.83 |
||
|
50
|
50
646-14394-00-00 Valve, Drain |
646-14394-00-00 |
US $9.11 |
||
|
51
|
51
646-14223-01-00 Spring, Drain Valve |
646-14223-01-00 |
from US $5.14 |
||
|
52
|
52
646-14397-00-00 O-Ring |
646-14397-00-00 |
US $2.94 |
||
|
53
|
53
648-14382-60-00 Cap, Drain Pipe |
648-14382-60-00 |
US $2.05 |
||
|
54
|
54
90461-06015-00 Clamp |
90461-06015-00 |
from US $5.95 |
||
| replacement | |||||
|
54
|
54
90461-06M01-00 Clamp |
90461-06M01-00 |
from US $5.95 |
||
|
55
|
55
689-W0093-00-00 Carburetor Repair KitSee fig.25 for detail service |
689-W0093-00-00 |
US $121.03 |
||
| replacement | |||||
|
55
|
55
689-W0093-02-00 Carburetor Repair KitSee fig.25 for detail service |
689-W0093-02-00 |
from US $47.59 |
||
