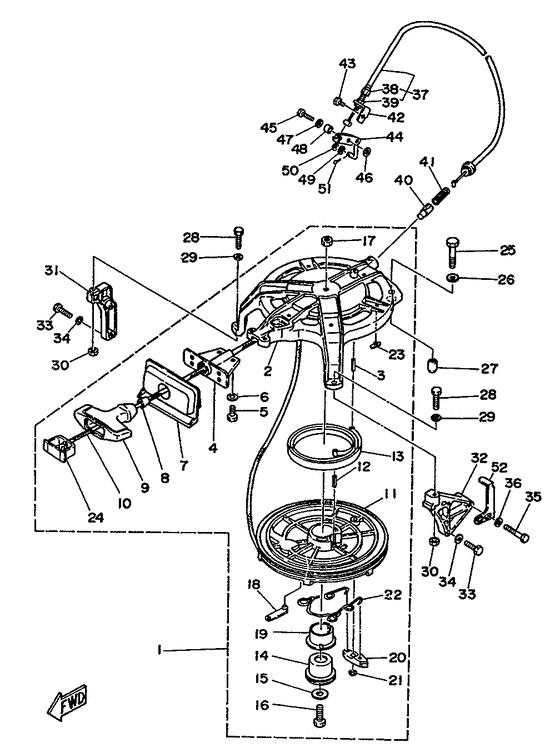

Starter Diagram Yamaha 30 MHS/L
- Year
- 1990
- Model
- 30A
- Model code
- 689
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
49
|
49
90206-05005-00 Washer, Wave |
90206-05005-00 |
from US $2.55 |
||
|
50
|
50
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
51
|
51
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
52
|
52
689-81332-01-00 Plate, Timing |
689-81332-01-00 |
from US $8.93 |
