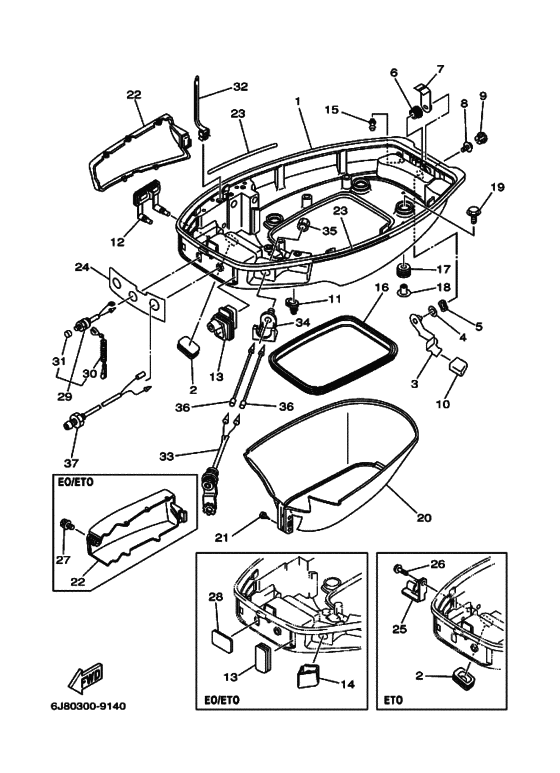

Bottom cowling Diagram Yamaha 30 MHS/L
- Year
- 2001
- Model
- 30D
- Model code
- 6J8
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-42711-03-4D Cowling, Bottom 1 |
6J8-42711-03-4D |
US $641.52 |
||
|
2
|
2
6H4-42726-00-00 Grommet |
6H4-42726-00-00 |
US $4.38 |
||
|
3
|
3
6J8-42815-00-4D Lever, Clamp |
6J8-42815-00-4D |
US $26.49 |
||
|
4
|
4
90202-12M25-00 Washer, Plate |
90202-12M25-00 |
from US $1.98 |
||
|
5
|
5
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
6
|
6
90386-12M61-00 Bush |
90386-12M61-00 |
from US $1.98 |
||
|
7
|
7
6J8-42816-00-00 Lever, Clamp |
6J8-42816-00-00 |
from US $16.61 |
||
|
8
|
8
95895-06012-00 Bolt, Flange |
95895-06012-00 |
US $1.28 |
||
|
9
|
9
6J8-42831-00-00 Bushing |
6J8-42831-00-00 |
from US $7.51 |
||
|
10
|
10
6J8-42728-01-00 Cap |
6J8-42728-01-00 |
from US $3.40 |
||
|
11
|
11
6G1-42727-00-00 Grommet 4 |
6G1-42727-00-00 |
US $7.51 |
||
|
13
|
13
6J8-42726-10-00 Grommet |
6J8-42726-10-00 |
from US $8.22 |
||
|
14
|
14
6J8-42725-01-00 Grommet |
6J8-42725-01-00 |
from US $7.37 |
||
|
15
|
15
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
15
|
15
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.91 |
||
|
16
|
16
6J8-42716-00-00 Rubber, Seal 1 |
6J8-42716-00-00 |
US $8.93 |
||
|
17
|
17
90480-09M21-00 Grommet |
90480-09M21-00 |
from US $3.04 |
||
|
18
|
18
90387-06M41-00 Collar |
90387-06M41-00 |
from US $4.04 |
||
|
19
|
19
901-1906M-61-00
Bolt, With Washer
|
901-1906M-61-00 |
— | ||
| replacements | |||||
|
19
|
19
90119-06M08-00 Bolt, With Washer |
90119-06M08-00 |
from US $4.39 |
||
|
19
|
19
90119-06295-00 Bolt, With Washer |
90119-06295-00 |
from US $4.86 |
||
|
20
|
20
6J8-42741-01-00 Apron |
6J8-42741-01-00 |
from US $41.17 |
||
|
21
|
21
90164-06M01-00 Screw, Tapping |
90164-06M01-00 |
from US $3.83 |
||
|
22
|
22
6J8-42723-51-00 Cover, Bottom |
6J8-42723-51-00 |
from US $20.26 |
||
|
23
|
23
6J8-42735-00-00 Protector |
6J8-42735-00-00 |
from US $2.41 |
||
|
24
|
24
6J8-42719-20-00 Panel, Front Lower |
6J8-42719-20-00 |
from US $11.62 |
||
|
27
|
27
6J8-42846-00-00 Screw |
6J8-42846-00-00 |
from US $13.46 |
||
|
28
|
28
6J8-42726-20-00 Grommet |
6J8-42726-20-00 |
from US $8.22 |
||
|
32
|
32
90465-13M76-00 Clamp |
90465-13M76-00 |
from US $2.13 |
||
|
37
|
37
6J8-85410-00-00 Emergency Signal Light Assy |
6J8-85410-00-00 |
from US $37.86 |
||
