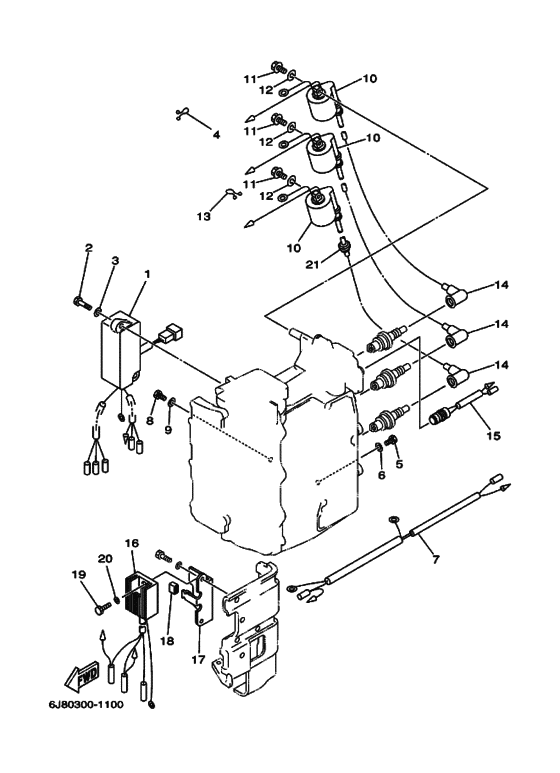

Electrical 1 Diagram Yamaha 30 MHS/L
- Year
- 2001
- Model
- 30D
- Model code
- 6J8
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (110)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-85540-H2-00 C.d.i. Unit Assy |
6J8-85540-H2-00 |
from US $493.77 |
||
|
2
|
2
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
3
|
3
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
5
|
5
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
6
|
6
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
9
|
9
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
6J8-85570-21-00 Ignition Coil Assy |
6J8-85570-21-00 |
from US $125.17 |
||
|
11
|
11
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
90464-05M16-00 Clamp |
90464-05M16-00 |
from US $1.84 |
||
|
14
|
14
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
15
|
15
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
21
|
21
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
