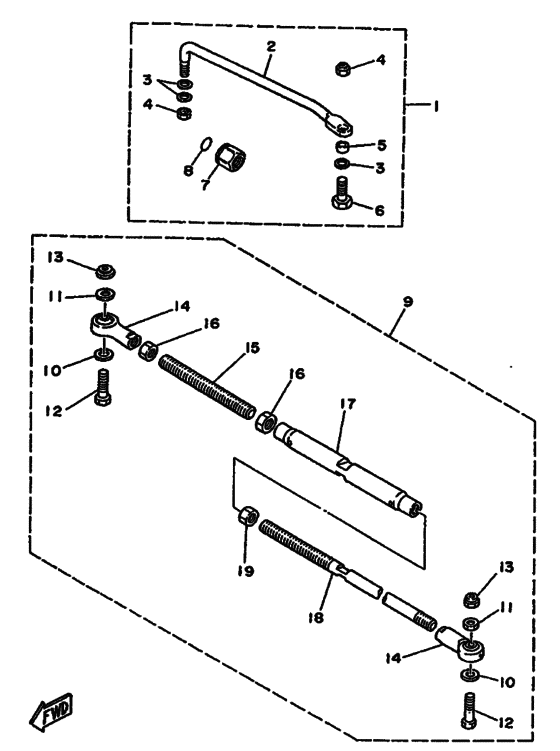

Steering guide Diagram Yamaha 30 MHS/L
- Year
- 1987
- Model
- 30D
- Model code
- 6J8
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-61350-02-00 Steering Guide Attachment Kit |
689-61350-02-00 |
from US $92.43 |
||
|
2
|
2
689-61351-01-00 Rod, Steering Link |
689-61351-01-00 |
from US $88.98 |
||
|
3
|
3
90201-10M20-00 Washer, Plate |
90201-10M20-00 |
from US $2.13 |
||
|
4
|
4
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.74 |
||
|
5
|
5
90387-10M61-00 Collar |
90387-10M61-00 |
from US $13.46 |
||
|
6
|
6
90101-09M70-00 Bolt |
90101-09M70-00 |
from US $23.16 |
||
|
7
|
7
6E5-43145-00-00 Cap, Clamp Bracket |
6E5-43145-00-00 |
US $9.07 |
||
| replacement | |||||
|
7
|
7
6E5-43145-01-00 Cap, Clamp Bracket |
6E5-43145-01-00 |
from US $8.70 |
||
|
8
|
8
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
9
|
9
688-61301-01-00 Tie Bar Kit (L:430-630Mm) |
688-61301-01-00 |
from US $586.04 |
||
|
10
|
10
90201-10M76-00 Washer, Plate |
90201-10M76-00 |
from US $7.79 |
||
|
11
|
11
90170-09M05-00 Nut |
90170-09M05-00 |
from US $18.17 |
||
|
12
|
12
90101-09M70-00 Bolt |
90101-09M70-00 |
from US $23.16 |
||
|
13
|
13
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.74 |
||
|
14
|
14
6E5-61303-00-00 Steering Axle Comp |
6E5-61303-00-00 |
from US $245.92 |
||
| replacement | |||||
|
14
|
14
6E5-61303-01-00 Steering Axle Comp. |
6E5-61303-01-00 |
from US $245.92 |
||
|
15
|
15
6E5-61315-00-00 Tie Bar |
6E5-61315-00-00 |
from US $85.24 |
||
|
16
|
16
95380-14700-00 Nut |
95380-14700-00 |
from US $7.79 |
||
|
17
|
17
6E5-61313-00-00 Adjuster |
6E5-61313-00-00 |
from US $196.43 |
||
|
18
|
18
688-61311-11-00 Tie Bar |
688-61311-11-00 |
from US $47.09 |
||
|
19
|
19
90170-14M06-00 Nut(701 TYPE) |
90170-14M06-00 |
from US $6.23 |
||
