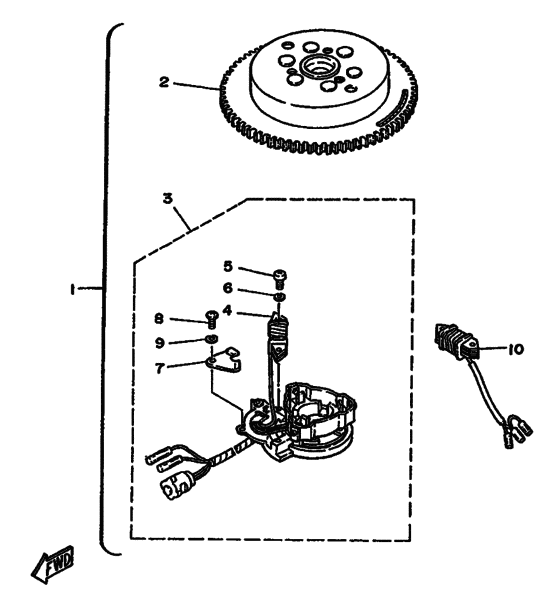

Generator Diagram Yamaha 30 MHS/L
- Year
- 1986
- Model
- 30D
- Model code
- 6J8
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-85500-A0-00
C.d.i. Magneto Assy
|
6J8-85500-A0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6J8-85550-A0-00
Rotor Assembly
|
6J8-85550-A0-00 |
— | ||
|
3
|
3
6H4-85510-F0-00
Stator Assembly
|
6H4-85510-F0-00 |
— | ||
| replacement | |||||
|
3
|
3
6H4-85510-F9-00
Stator Assy
|
6H4-85510-F9-00 |
— | ||
|
4
|
4
6H4-85520-00-00
Coil, Charge
|
6H4-85520-00-00 |
— | ||
|
5
|
5
97802-06020-00 Screw, Pan Head |
97802-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
6
|
6
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
6H4-85548-00-00 Holder |
6H4-85548-00-00 |
from US $11.33 |
||
|
8
|
8
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
8
|
8
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
8
|
8
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6H4-85533-A0-00
Coil, Lighting
(30DE MODEL) |
6H4-85533-A0-00 |
— | ||
