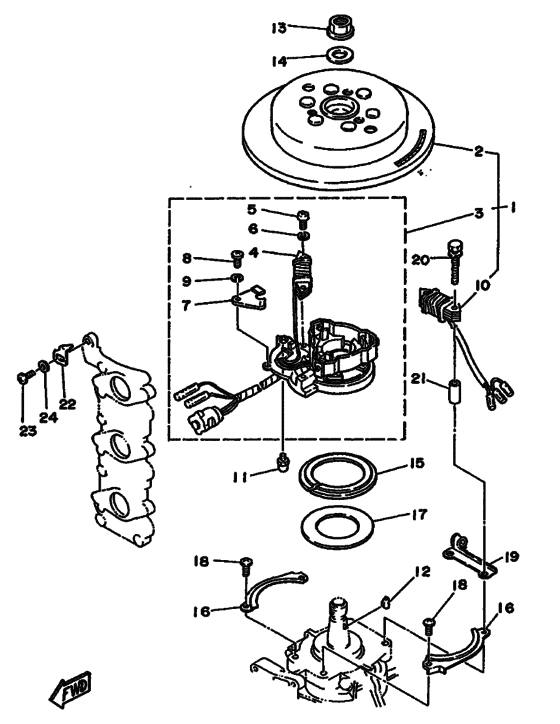

Generator Diagram Yamaha 30 MHS/L
- Year
- 1986
- Model
- 30D
- Model code
- 6J8
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-85500-F0-00
C.d.i. Magneto Assy
|
6J8-85500-F0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6J8-85550-F0-00
Rotor Assembly
|
6J8-85550-F0-00 |
— | ||
|
3
|
3
6H4-85510-F0-00
Stator Assembly
|
6H4-85510-F0-00 |
— | ||
| replacement | |||||
|
3
|
3
6H4-85510-F9-00
Stator Assy
|
6H4-85510-F9-00 |
— | ||
|
4
|
4
6H4-85520-00-00
Coil, Charge
|
6H4-85520-00-00 |
— | ||
|
5
|
5
97802-06020-00 Screw, Pan Head |
97802-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
6
|
6
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
7
|
7
6H4-85548-00-00 Holder |
6H4-85548-00-00 |
from US $11.33 |
||
|
8
|
8
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
8
|
8
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
8
|
8
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6H4-85533-A0-00
Coil, Lighting
|
6H4-85533-A0-00 |
— | ||
|
11
|
11
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
12
|
12
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
12
|
12
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
13
|
13
90179-16M05-00 Nut |
90179-16M05-00 |
from US $10.83 |
||
|
14
|
14
90201-16M44-00 Washer, Plate |
90201-16M44-00 |
from US $4.72 |
||
|
15
|
15
6H4-41611-00-00 Retainer, Magneto Base |
6H4-41611-00-00 |
US $31.03 |
||
| replacement | |||||
|
15
|
15
6H4-41611-10-00 Retainer, Magneto Base |
6H4-41611-10-00 |
from US $15.39 |
||
|
16
|
16
6J8-41615-00-00 Stopper, Magneto Base |
6J8-41615-00-00 |
from US $16.61 |
||
|
17
|
17
6J8-41618-00-00 Washer, Magneto |
6J8-41618-00-00 |
from US $5.38 |
||
|
18
|
18
92580-06012-00 Screw |
92580-06012-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
19
|
19
6J8-85548-00-00 Holder |
6J8-85548-00-00 |
from US $10.53 |
||
|
20
|
20
90101-06M00-00 Bolt |
90101-06M00-00 |
from US $4.11 |
||
| replacement | |||||
|
20
|
20
90119-06260-00 Bolt |
90119-06260-00 |
from US $1.62 |
||
|
21
|
21
90387-06M76-00 Collar |
90387-06M76-00 |
US $3.12 |
||
| replacement | |||||
|
21
|
21
90387-060N3-00 Collar |
90387-060N3-00 |
from US $3.12 |
||
|
22
|
22
6J8-81332-00-00 Plate, Timing |
6J8-81332-00-00 |
from US $6.35 |
||
|
23
|
23
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
23
|
23
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
24
|
24
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
