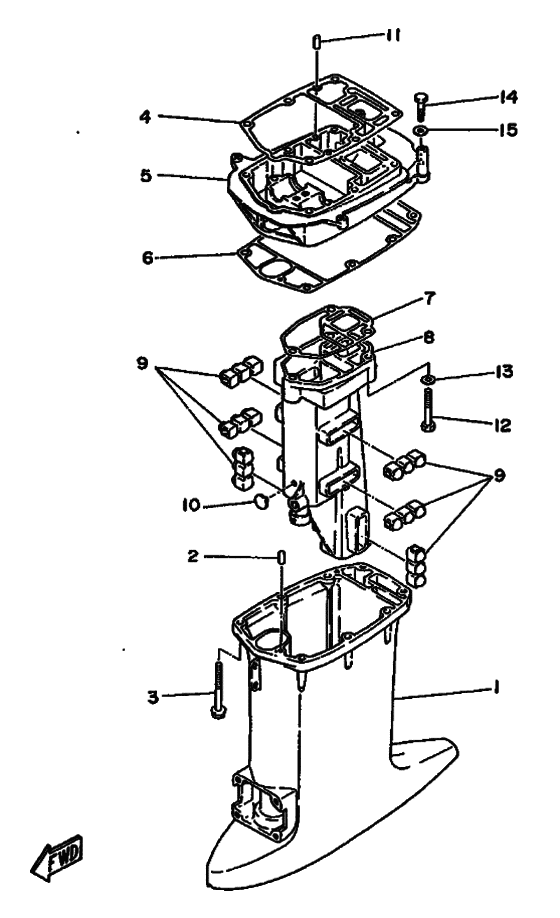

Upper casing Diagram Yamaha 30 MHS/L
- Year
- 1986
- Model
- 30D
- Model code
- 6J8
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J8-45111-00-EJ
Casing, Upper
UR |
6J8-45111-00-EJ |
— | ||
| replacement | |||||
|
1
|
1
6J8-45111-01-EJ
Casing Upper
UR |
6J8-45111-01-EJ |
— | ||
|
1
|
1
6J8-45111-10-EJ
Casing, Upper
UR |
6J8-45111-10-EJ |
— | ||
| replacement | |||||
|
1
|
1
6J8-45111-11-EJ
Casing Upper
UR |
6J8-45111-11-EJ |
— | ||
|
2
|
2
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
3
|
3
90119-08M31-00 Bolt, With Washer |
90119-08M31-00 |
from US $7.08 |
||
|
4
|
4
6J8-45113-00-00 Gasket, Upper Casing |
6J8-45113-00-00 |
US $25.22 |
||
| replacement | |||||
|
4
|
4
6J8-45113-A0-00 Gasket, Upper Casing |
6J8-45113-A0-00 |
from US $10.35 |
||
|
5
|
5
6J6-41137-00-94
Guide, Exhaust
|
6J6-41137-00-94 |
— | ||
|
6
|
6
6J8-45114-00-00 Gasket, Upper Casing |
6J8-45114-00-00 |
US $19.13 |
||
| replacement | |||||
|
6
|
6
6J8-45114-A1-00 Gasket, Upper Casing |
6J8-45114-A1-00 |
from US $9.95 |
||
|
7
|
7
6J8-41134-00-00 Gasket, Exhaust Manifold |
6J8-41134-00-00 |
US $19.13 |
||
| replacement | |||||
|
7
|
7
6J8-45114-A1-00 Gasket, Upper Casing |
6J8-45114-A1-00 |
from US $9.95 |
||
|
8
|
8
6J8-41131-00-9M Exhaust Manifold 1Manifold, ext. 1 |
6J8-41131-00-9M |
US $146.45 |
||
| replacement | |||||
|
8
|
8
6J8-41131-00-CA Manifold, Ext. 1 |
6J8-41131-00-CA |
from US $85.16 |
||
|
9
|
9
6J8-14737-00-00 Damper, Muffler |
6J8-14737-00-00 |
from US $8.36 |
||
|
10
|
10
90338-07M00-00 Plug |
90338-07M00-00 |
US $1.98 |
||
|
11
|
11
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
12
|
12
97395-08050-00 Bolt |
97395-08050-00 |
from US $6.88 |
||
| replacement | |||||
|
12
|
12
97095-08050-00 Bolt |
97095-08050-00 |
from US $7.65 |
||
|
13
|
13
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
14
|
14
97375-08030-00 Bolt, Hexagon |
97375-08030-00 |
US $2.69 |
||
| replacement | |||||
|
14
|
14
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
15
|
15
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
