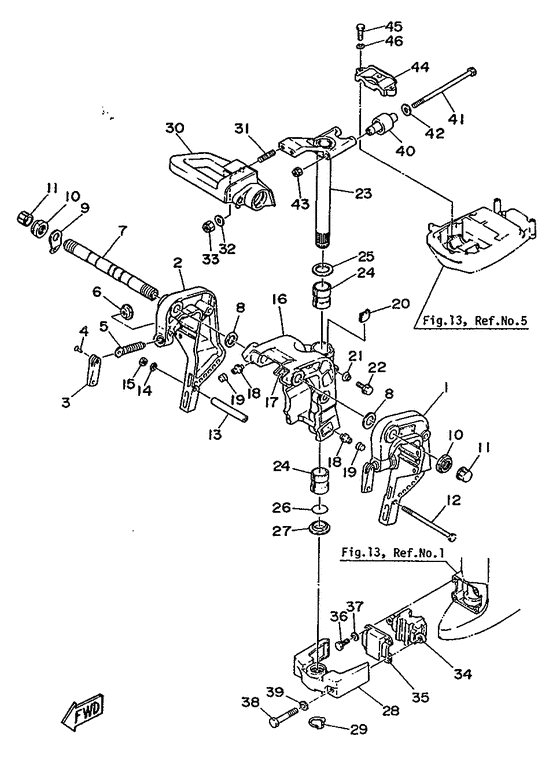

Bracket 1 Diagram Yamaha 30 MHS/L
- Year
- 1986
- Model
- 30D
- Model code
- 6J8
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6H4-43111-03-EJ
Bracket, Clamp
|
6H4-43111-03-EJ |
— | ||
| replacement | |||||
|
01
|
01
6H4-43111-05-EJ
Bracket, Clamp 1
|
6H4-43111-05-EJ |
— | ||
|
02
|
02
6H4-43112-02-EJ
Bracket, Clamp
|
6H4-43112-02-EJ |
— | ||
|
03
|
03
616-43118-00-EJ Handle, Transom Clptransom Clamp |
616-43118-00-EJ |
US $13.60 |
||
| replacement | |||||
|
03
|
03
999-99028-08-00 Handle, Transom Clamp |
999-99028-08-00 |
from US $13.60 |
||
|
04
|
04
90243-04001-00 Pin |
90243-04001-00 |
US $7.37 |
||
| replacement | |||||
|
04
|
04
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
05
|
05
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $15.16 |
||
|
06
|
06
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
07
|
07
6J8-43131-00-00 Bolt, Clamp Bracket |
6J8-43131-00-00 |
US $56.51 |
||
| replacement | |||||
|
07
|
07
6J8-43131-01-00 Bolt, Clamp Bracket |
6J8-43131-01-00 |
from US $36.36 |
||
|
08
|
08
90201-22428-00 Washer, Plate |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
08
|
08
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $4.11 |
||
|
09
|
09
6J8-43113-00-00 Plate, Clamp Bracket |
6J8-43113-00-00 |
US $6.52 |
||
| replacement | |||||
|
09
|
09
6J8-43113-01-00 Plate, Clamp Bracket |
6J8-43113-01-00 |
from US $6.52 |
||
|
10
|
10
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
11
|
11
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
11
|
11
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
12
|
12
90101-08339-00 Bolt |
90101-08339-00 |
from US $8.93 |
||
|
13
|
13
90387-09074-00 Collar |
90387-09074-00 |
US $8.93 |
||
| replacement | |||||
|
13
|
13
90387-09019-00 COLLAR |
90387-09019-00 |
from US $8.93 |
||
|
14
|
14
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
15
|
15
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
15
|
15
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
15
|
15
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
16
|
16
6J8-43311-00-EJ
Bracket, Swivel
|
6J8-43311-00-EJ |
— | ||
| replacements | |||||
|
16
|
16
6J8-W4331-02-EJ
Bracket, Swivel
|
6J8-W4331-02-EJ |
— | ||
|
16
|
16
6J8-W4331-00-EJ
Swivel Bracket Assy
|
6J8-W4331-00-EJ |
— | ||
|
17
|
17
668-43691-00-00
Indicator, Tilt
|
668-43691-00-00 |
— | ||
|
18
|
18
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
18
|
18
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
19
|
19
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
20
|
20
6H4-42528-00-00 Plate, Friction |
6H4-42528-00-00 |
from US $13.18 |
||
|
21
|
21
689-43373-01-00 Seal, Damper |
689-43373-01-00 |
US $4.53 |
||
|
22
|
22
90105-06M18-00 Bolt, Flange |
90105-06M18-00 |
from US $2.74 |
||
|
23
|
23
6J8-42510-00-EJ
Steering Bracket Assy
|
6J8-42510-00-EJ |
— | ||
| replacement | |||||
|
23
|
23
6J8-42510-03-EJ
Steering Bracket Assy
|
6J8-42510-03-EJ |
— | ||
|
24
|
24
90386-30048-00 Bush |
90386-30048-00 |
from US $7.51 |
||
|
25
|
25
90201-30420-00 Washer, Plate |
90201-30420-00 |
US $7.65 |
||
| replacement | |||||
|
25
|
25
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
26
|
26
93210-30420-00
O-Ring
|
93210-30420-00 |
— | ||
|
27
|
27
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
28
|
28
6H4-44551-00-EJ
Housing, Lower Mount Rubber
|
6H4-44551-00-EJ |
— | ||
| replacement | |||||
|
28
|
28
6H4-44551-02-EJ
Hsg Lower M0Unt
|
6H4-44551-02-EJ |
— | ||
|
29
|
29
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
30
|
30
6J8-42121-00-EJ
Bracket
|
6J8-42121-00-EJ |
— | ||
| replacements | |||||
|
30
|
30
6J8-WS421-02-EJ
Bracket
|
6J8-WS421-02-EJ |
— | ||
|
30
|
30
6J8-42121-01-EJ
Bracket
|
6J8-42121-01-EJ |
— | ||
|
31
|
31
90116-10M28-00 Bolt, Stud |
90116-10M28-00 |
US $7.65 |
||
| replacement | |||||
|
31
|
31
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
32
|
32
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
33
|
33
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
33
|
33
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
34
|
34
6H4-44557-00-00 Mount Damper, Lower FrontUr |
6H4-44557-00-00 |
from US $74.61 |
||
|
34
|
34
6H4-44557-10-00 Mount Damper, Lower FrontUr |
6H4-44557-10-00 |
from US $74.61 |
||
|
35
|
35
6H4-44553-00-00 Cover, Lower Mount |
6H4-44553-00-00 |
US $78.34 |
||
| replacement | |||||
|
35
|
35
6H4-44553-01-00 Cover, Lower Mount |
6H4-44553-01-00 |
from US $71.39 |
||
|
36
|
36
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
36
|
36
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
36
|
36
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
|
37
|
37
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
38
|
38
97395-10060-00 Bolt |
97395-10060-00 |
from US $9.21 |
||
| replacement | |||||
|
38
|
38
97095-10060-00 Bolt |
97095-10060-00 |
from US $9.21 |
||
|
39
|
39
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
40
|
40
6H4-44514-00-00 Mount Damper, Upper Side |
6H4-44514-00-00 |
from US $43.11 |
||
|
41
|
41
90109-08M26-00 Bolt |
90109-08M26-00 |
from US $11.48 |
||
|
42
|
42
90201-09425-00 Washer, Plate |
90201-09425-00 |
from US $5.13 |
||
|
43
|
43
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.52 |
||
| replacement | |||||
|
43
|
43
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.66 |
||
|
44
|
44
6J8-44511-00-EJ
Cover, Upper Mount
|
6J8-44511-00-EJ |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
97390-08035-00 Bolt |
97390-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
45
|
45
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
45
|
45
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
46
|
46
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
