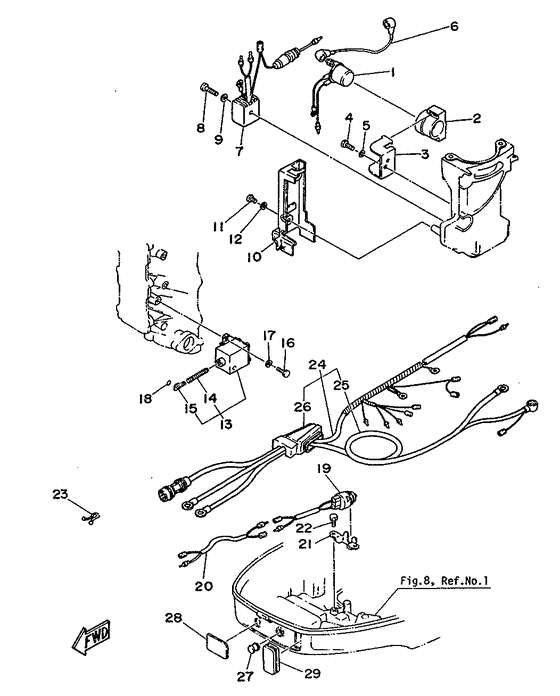

Electrical 1 Diagram Yamaha 30 MHS/L
- Year
- 1986
- Model
- 30D
- Model code
- 6J8
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
02
|
02
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
03
|
03
6J8-81945-00-00 Plate, Switch Fitting |
6J8-81945-00-00 |
from US $17.71 |
||
|
04
|
04
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
04
|
04
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
04
|
04
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
05
|
05
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
06
|
06
6F5-82117-00-00 Wire, Lead |
6F5-82117-00-00 |
US $26.35 |
||
| replacements | |||||
|
06
|
06
6E5-82117-01-00 Wire, Lead |
6E5-82117-01-00 |
US $26.35 |
||
|
06
|
06
6E5-82117-02-00 Wire, Lead |
6E5-82117-02-00 |
US $19.33 |
||
|
07
|
07
6G1-81970-60-00 Rectifier Assy |
6G1-81970-60-00 |
US $88.98 |
||
| replacements | |||||
|
07
|
07
6G1-81970-62-00 Rectifier Assy |
6G1-81970-62-00 |
US $88.98 |
||
|
07
|
07
6G1-81970-63-00 Rectifier Assy |
6G1-81970-63-00 |
from US $94.08 |
||
|
08
|
08
978-03050-25-00
Screw, Pan Head
|
978-03050-25-00 |
— | ||
| replacement | |||||
|
08
|
08
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
09
|
09
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
10
|
10
6J8-81916-00-00 Cover, Terminal |
6J8-81916-00-00 |
US $4.99 |
||
|
11
|
11
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
13
|
13
6J8-86110-00-00 Solenoid |
6J8-86110-00-00 |
from US $127.94 |
||
|
14
|
14
6J8-86116-00-00 Wire Pull |
6J8-86116-00-00 |
from US $7.51 |
||
|
15
|
15
682-86117-00-00 Hook, Wire Pull |
682-86117-00-00 |
from US $2.69 |
||
|
16
|
16
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
93210-03261-00 O-Ring |
93210-03261-00 |
from US $2.02 |
||
|
19
|
19
6H3-82540-00-00 Neutral Switch Assy |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
19
|
19
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
20
|
20
6H4-82553-00-00 Extension, Wire Lead |
6H4-82553-00-00 |
from US $19.55 |
||
|
21
|
21
6J8-82554-00-00 Stay, Neutral Switch |
6J8-82554-00-00 |
from US $12.18 |
||
|
22
|
22
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
22
|
22
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
22
|
22
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
23
|
23
904-6408M-07-00
Clamp
|
904-6408M-07-00 |
— | ||
| replacement | |||||
|
23
|
23
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
24
|
24
6J8-82580-00-00 Wire Harness Assy 2 |
6J8-82580-00-00 |
from US $428.30 |
||
|
25
|
25
689-82105-12-00 Battery Cable |
689-82105-12-00 |
US $161.65 |
||
| replacements | |||||
|
25
|
25
66T-82105-J1-00 Battery Cable |
66T-82105-J1-00 |
US $161.65 |
||
|
25
|
25
66T-82105-J2-00 Battery Cable |
66T-82105-J2-00 |
from US $160.05 |
||
|
26
|
26
6J8-42724-50-00 Grommet |
6J8-42724-50-00 |
from US $13.18 |
||
|
27
|
27
6H4-42725-00-00 Grommet |
6H4-42725-00-00 |
from US $2.41 |
||
|
28
|
28
6J8-42726-20-00 Grommet |
6J8-42726-20-00 |
from US $8.22 |
||
|
29
|
29
6J8-42726-10-00 Grommet(30de model) |
6J8-42726-10-00 |
from US $8.22 |
||
