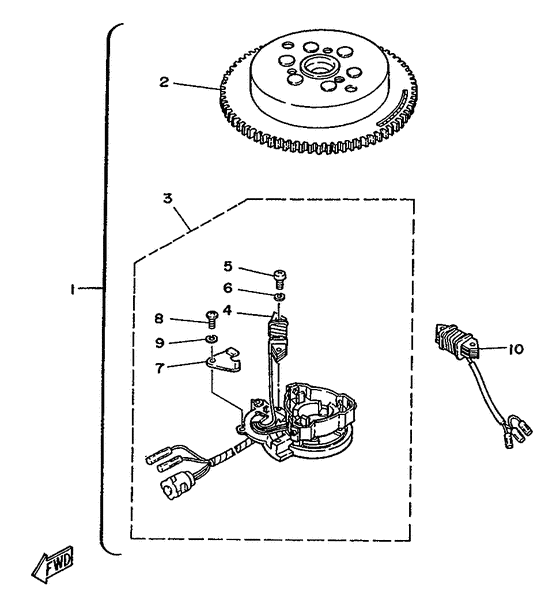

Generator Diagram Yamaha 30 MHS/L
- Year
- 1986
- Model
- 30D
- Model code
- 6J8
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-85500-A0-00
C.d.i. Magneto Assy
|
6J8-85500-A0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6J8-85550-A0-00
Rotor Assembly
|
6J8-85550-A0-00 |
— | ||
|
03
|
03
6H4-85510-F0-00
Stator Assembly
|
6H4-85510-F0-00 |
— | ||
| replacement | |||||
|
03
|
03
6H4-85510-F9-00
Stator Assy
|
6H4-85510-F9-00 |
— | ||
|
04
|
04
6H4-85520-00-00
Coil, Charge
|
6H4-85520-00-00 |
— | ||
|
05
|
05
97802-06020-00 Screw, Pan Head |
97802-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
06
|
06
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
07
|
07
6H4-85548-00-00 Holder |
6H4-85548-00-00 |
from US $11.33 |
||
|
08
|
08
98501-05008-00 Screw, Pan Head |
98501-05008-00 |
from US $1.07 |
||
| replacements | |||||
|
08
|
08
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
08
|
08
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
09
|
09
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
6H4-85533-A0-00
Coil, Lighting
(30de model) |
6H4-85533-A0-00 |
— | ||
