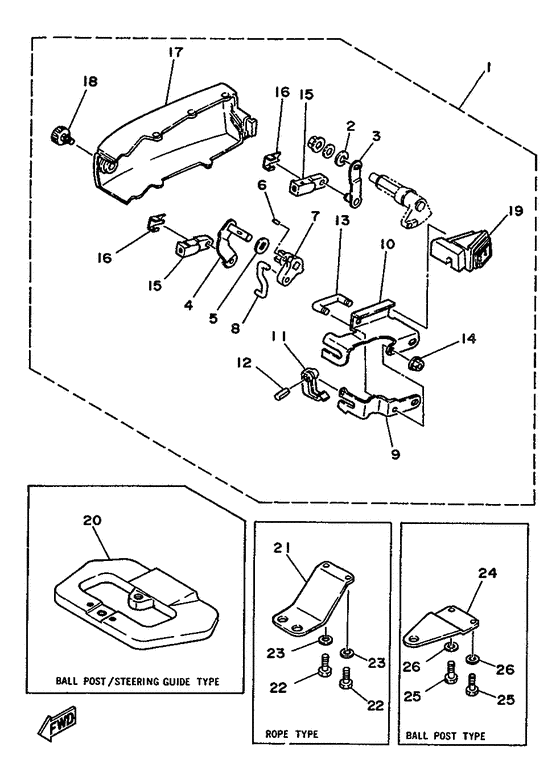

Commande a distance (30DRO) Diagram Yamaha 30 MHS/L
- Year
- 1996
- Model
- 30D
- Model code
- 6J8
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-48501-03-4D Remote Cont. Attachment Assy |
6J8-48501-03-4D |
from US $104.99 |
||
|
03
|
03
6J8-48534-00-00 Throttle Lever, Control |
6J8-48534-00-00 |
from US $24.71 |
||
|
04
|
04
6J8-48544-01-00 Lever, Shiftcontrol |
6J8-48544-01-00 |
US $37.30 |
||
| replacement | |||||
|
04
|
04
6J8-48544-02-00 LEVER, SHIFTCONTROL |
6J8-48544-02-00 |
from US $37.30 |
||
|
05
|
05
6J8-44177-00-00 Washer |
6J8-44177-00-00 |
from US $2.55 |
||
|
07
|
07
6J8-44173-02-00 Lever, Shift Control |
6J8-44173-02-00 |
from US $15.50 |
||
|
08
|
08
6J8-42169-01-00 Joint |
6J8-42169-01-00 |
from US $7.23 |
||
|
09
|
09
6J8-48531-00-00 Bracket, Remote Control 1 |
6J8-48531-00-00 |
from US $18.99 |
||
|
10
|
10
6J8-48532-00-00 Bracket, Remote Control 2 |
6J8-48532-00-00 |
from US $32.16 |
||
|
11
|
11
682-48538-50-00 Clamp, Cable 1 |
682-48538-50-00 |
from US $5.67 |
||
|
15
|
15
6G8-26363-00-00 End, Wire 1 |
6G8-26363-00-00 |
from US $3.72 |
||
|
16
|
16
6G8-26364-00-00 End, Cable |
6G8-26364-00-00 |
from US $4.82 |
||
|
17
|
17
6J8-42723-51-00 Cover, Bottom |
6J8-42723-51-00 |
from US $20.26 |
||
|
18
|
18
6J8-42846-00-00 Screw |
6J8-42846-00-00 |
from US $13.46 |
||
|
19
|
19
6J8-42724-10-00 Grommet |
6J8-42724-10-00 |
from US $12.89 |
||
|
20
|
20
6J8-48511-01-4D Hook, Steering |
6J8-48511-01-4D |
US $109.70 |
||
| replacement | |||||
|
20
|
20
6J8-48511-01-8D Hook, Steering |
6J8-48511-01-8D |
from US $74.72 |
||
|
21
|
21
6G8-48511-00-00 Hook, SteeringRope type |
6G8-48511-00-00 |
from US $19.55 |
||
|
24
|
24
6G8-48511-10-00 Hook, SteeringBall post type |
6G8-48511-10-00 |
from US $13.03 |
||
