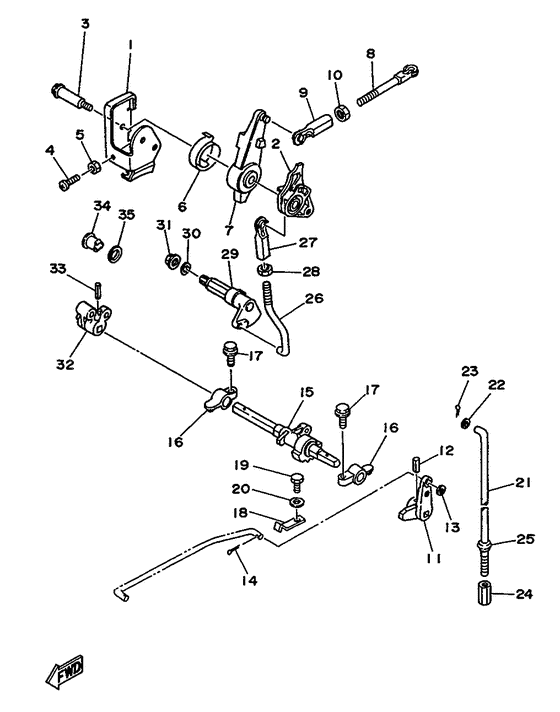

Control Diagram Yamaha 30 MHS/L
- Year
- 1996
- Model
- 30D
- Model code
- 6J8
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-14497-00-00 Stay, Throttle Wire |
6J8-14497-00-00 |
from US $15.58 |
||
|
02
|
02
6J8-41213-00-00 Cam, Accel |
6J8-41213-00-00 |
from US $18.23 |
||
|
06
|
06
6J8-42167-00-00 Spring 1 |
6J8-42167-00-00 |
from US $18.42 |
||
|
07
|
07
6J8-41631-02-00 Lever, Magneto Control |
6J8-41631-02-00 |
from US $27.54 |
||
|
08
|
08
689-42169-01-00 Joint |
689-42169-01-00 |
from US $11.48 |
||
|
09
|
09
682-41237-00-00 Joint, Link 2 |
682-41237-00-00 |
from US $2.02 |
||
|
11
|
11
6J8-44123-00-00 Arm, Shift Rod |
6J8-44123-00-00 |
from US $6.80 |
||
|
15
|
15
6J8-44121-00-00 Lever, Shift Rod |
6J8-44121-00-00 |
US $24.65 |
||
| replacement | |||||
|
15
|
15
6J8-44121-01-00 LEVER, SHIFT ROD |
6J8-44121-01-00 |
from US $24.65 |
||
|
16
|
16
6G1-41662-01-94 Bracket 2 |
6G1-41662-01-94 |
from US $11.23 |
||
|
18
|
18
6J8-44116-00-00 Spring |
6J8-44116-00-00 |
from US $4.82 |
||
|
21
|
21
6J8-44143-00-00 Rod, Shift |
6J8-44143-00-00 |
from US $21.87 |
||
|
25
|
25
689-43373-01-00 Seal, Damper |
689-43373-01-00 |
US $4.53 |
||
|
26
|
26
6J8-41237-00-00 Joint, Link |
6J8-41237-00-00 |
from US $7.37 |
||
|
27
|
27
682-41237-00-00 Joint, Link 2 |
682-41237-00-00 |
from US $2.02 |
||
|
28
|
28
853-80056-00-00
Resistor Assy
|
853-80056-00-00 |
— | ||
|
29
|
29
6J8-42154-01-00 Lever, Throttle Control |
6J8-42154-01-00 |
from US $28.48 |
||
|
32
|
32
6J8-44142-00-00 Joint |
6J8-44142-00-00 |
from US $5.85 |
||
|
34
|
34
682-42726-00-00 Grommet |
682-42726-00-00 |
from US $4.82 |
||
