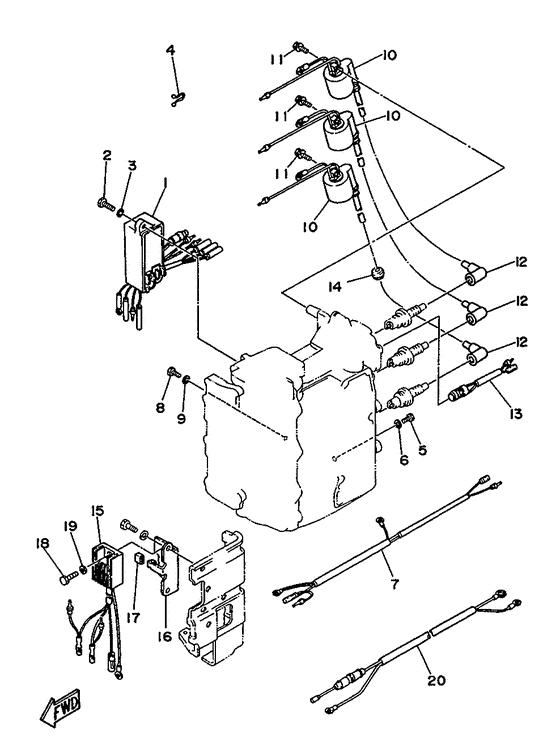

Electrical 1 Diagram Yamaha 30 MHS/L
- Year
- 1996
- Model
- 30D
- Model code
- 6J8
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 30
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-85540-H0-00
C.d.i. Unit Assembly
|
6J8-85540-H0-00 |
— | ||
| replacement | |||||
|
01
|
01
6J8-85540-H1-00
C.d.i. Unit Assembly
|
6J8-85540-H1-00 |
— | ||
|
07
|
07
6J8-82531-00-00 Wire, Lead |
6J8-82531-00-00 |
from US $24.94 |
||
|
10
|
10
6H4-85570-20-00 Ignition Coil Assembly |
6H4-85570-20-00 |
US $147.83 |
||
| replacement | |||||
|
10
|
10
6H4-85570-21-00 Ignition Coil Assy |
6H4-85570-21-00 |
from US $147.83 |
||
|
12
|
12
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
12
|
12
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
13
|
13
689-82560-00-00 Thermo Switch Assy |
689-82560-00-00 |
from US $68.25 |
||
|
15
|
15
6J8-81960-00-00 Rectifier & Regulator Assy |
6J8-81960-00-00 |
from US $120.97 |
||
|
16
|
16
6J8-81975-00-00 Plate, Rectifier Fitting |
6J8-81975-00-00 |
from US $12.89 |
||
|
17
|
17
689-44194-00-00 Cap |
689-44194-00-00 |
from US $7.08 |
||
|
20
|
20
6J8-82105-10-00 Battery CableAp |
6J8-82105-10-00 |
from US $101.96 |
||
